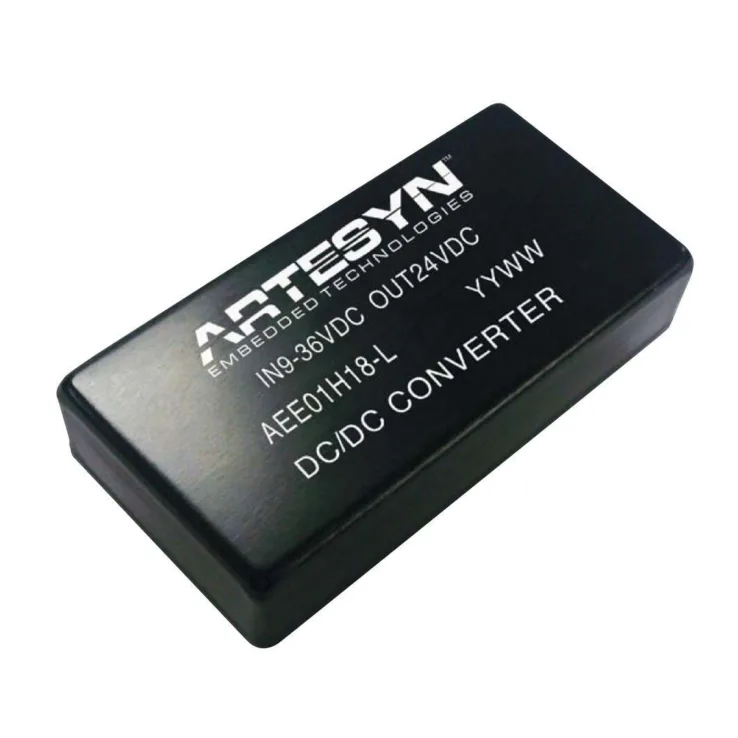

ARTESYN AEE Series - 50 Watts DC-DC Power Supplies 33–50W
Download Datasheet
| Models: |
|
| Manufacturer: | Advanced Energy |
| Type: | DC-DC Power Supplies |
ARTESYN AEE Series - 50 Watts Features:
Main Features
- 50W maximum output power (33W for 3.3V models)
- High efficiency: up to 92% at 12V output
- Wide 4:1 input voltage range
- Compact 1" × 2" DIP package
- Fully encapsulated, metal-cased construction
- Single output configuration
- 1500V DC input-to-output isolation
- Overcurrent, overvoltage and overtemperature protection
- Short-circuit protection with hiccup mode
- Remote ON/OFF control
- 285kHz switching frequency
- Output voltage tolerance of ±1%
- Wide operating temperature range of -40°C to +85°C
- Optional heatsink for improved thermal performance
- Designed for industrial and harsh-environment applications
| Wattage | 33 | 50 | 50 | 50 | 50 | 33 | 50 | 50 | 50 | 50 |
|---|---|---|---|---|---|---|---|---|---|---|
| Input Voltage | 9 - 36 V | 9 - 36 V | 9 - 36 V | 9 - 36 V | 9 - 36 V | 18 - 75 V | 18 - 75 V | 18 - 75 V | 18 - 75 V | 18 - 75 V |
| Output Current | 3.3 V @ 10 A | 5 V @ 10 A | 12 V @ 4.17 A | 15 V @ 3.33 A | 24 V @ 2.08 A | 3.3 V @ 10 A | 5 V @ 10 A | 12 V @ 4.17 A | 15 V @ 3.33 A | 24 V @ 2.08 A |
| Dimensions | 50.8 × 25.4 × 11 mm | 50.8 × 25.4 × 11 mm | 50.8 × 25.4 × 11 mm | 50.8 × 25.4 × 11 mm | 50.8 × 25.4 × 11 mm | 50.8 × 25.4 × 11 mm | 50.8 × 25.4 × 11 mm | 50.8 × 25.4 × 11 mm | 50.8 × 25.4 × 11 mm | 50.8 × 25.4 × 11 mm |
| Working Temperature | -40°C to +85°C (with derating) | |||||||||
| Safety Standards | Approved to UL/cUL/IEC/EN 62368-1 (formerly 60950-1) safety standards with CE marking, 1500V DC input-to-output isolation and UL94 V-0 rated PCB material. | |||||||||
