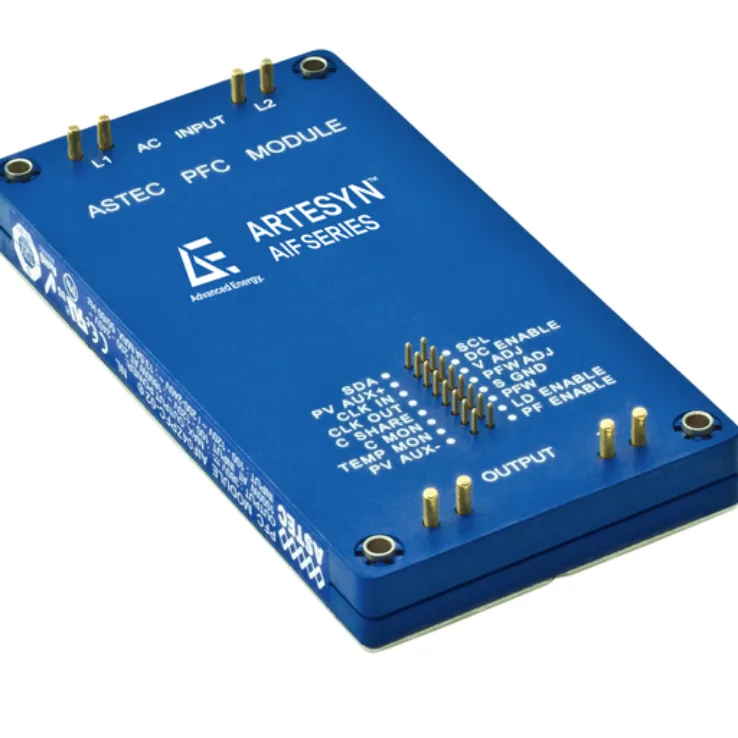

Artesyn AIF-PFC Series - 1600W Power Factor Correction Module PFC Modules
Download Datasheet
| Models: |
|
| Manufacturer: | Advanced Energy |
| Type: | PFC Modules |
Artesyn AIF-PFC Series - 1600W Power Factor Correction Module Features:
Main Features
- 1600W maximum output power
- High efficiency: up to 95%
- Universal 85–264V AC input voltage range
- Configurable 120–370V DC input option
- Single non-isolated 380V DC output
- Near-unity power factor (0.99 typical)
- Compact, low-profile full-brick design
- High power density of 290W/in³
- Parallel operation with accurate current sharing
- Less than 10% total harmonic distortion
- Positive and negative enable options
- Power-fail warning signal
- I²C interface with EEPROM data storage
- External inrush current limiting provision
- Overvoltage and overtemperature protection
- Baseplate operating temperature up to +100°C
- Two-year warranty
| Wattage | 1600 |
|---|---|
| Input Voltage | 85–264V AC / 120–370V DC (configurable) |
| Output Current | 4.2A nominal output |
| Output Voltage | 380V DC nominal (393V DC typical at no load) |
| Dimensions | 116.8 × 61.0 × 12.7 mm |
| Working Temperature | -20°C to +100°C (baseplate temperature) |
| Safety Standards | UL and cUL 62368 recognised and TÜV EN 62368 licensed, with UKCA marking and integrated overvoltage and overtemperature protection. |
| EMC Standards | Designed for power factor correction with less than 10% total harmonic distortion in accordance with IEC 1000-3-2, |
