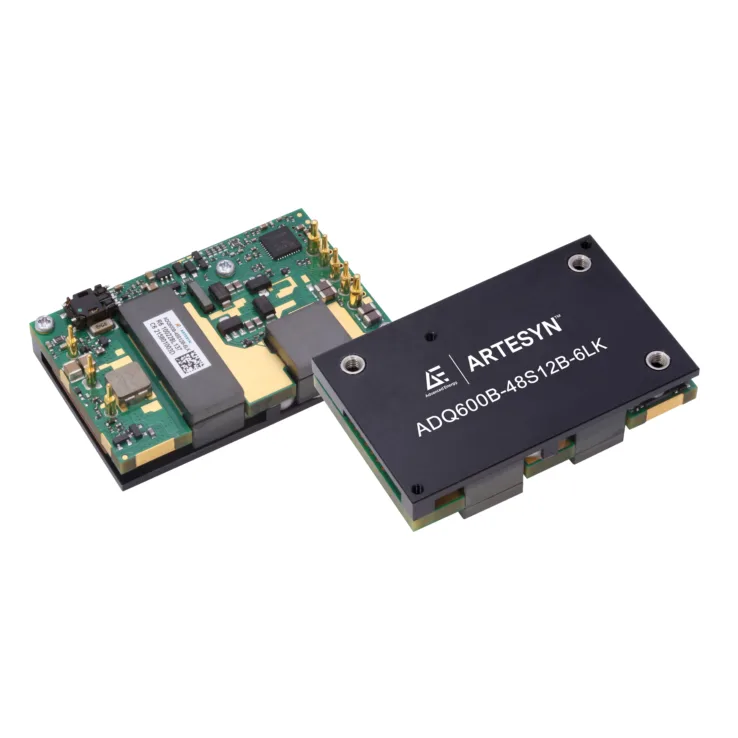

Artesyn ADQ600B Series – 600W DC/DC Converter DC-DC Power Supplies
Download Datasheet
| Models: |
|
| Manufacturer: | Advanced Energy |
| Type: | DC-DC Power Supplies |
Artesyn ADQ600B Series – 600W DC/DC Converter Features:
Main Features
- 600W continuous output power
- High efficiency: 95.5% typical at 50% load
- Wide 36–75V DC input range
- Single fully regulated 12V DC output
- Quarter-brick form factor with DOSA-compliant footprint
- Baseplate design optimised for contact cooling or heatsink mounting
- Open-frame version optimised for air cooling
- Adjustable output voltage from -20% to +10%
- Low output ripple and noise
- Fixed 175kHz switching frequency
- High capacitive load capability
- Pre-bias start-up capability
- Remote ON/OFF control
- Overvoltage, overcurrent and overtemperature protection
- Optional PMBus Rev. 1.2 interface
- RoHS 3.0 compliant
| Wattage | 600 |
|---|---|
| Input Voltage | 36–75V DC |
| Output Current | 50A maximum output |
| Output Voltage | 12V DC (adjustable -20% to +10% |
| Dimensions | 59.15 × 36.8 × 13.3 mm |
| Working Temperature | -40°C to +85°C ambient |
| Safety Standards | Designed to meet IEC/EN/UL/CSA 62368 safety standards, with CE marking, UL/TÜV approvals, UL94 V-0 rated materials and 2250V DC input-to-output isolation. |
| EMC Standards | The datasheet does not specify EMC compliance standards or emissions/immunity certifications, so EMC performance must be verified at system level. |
