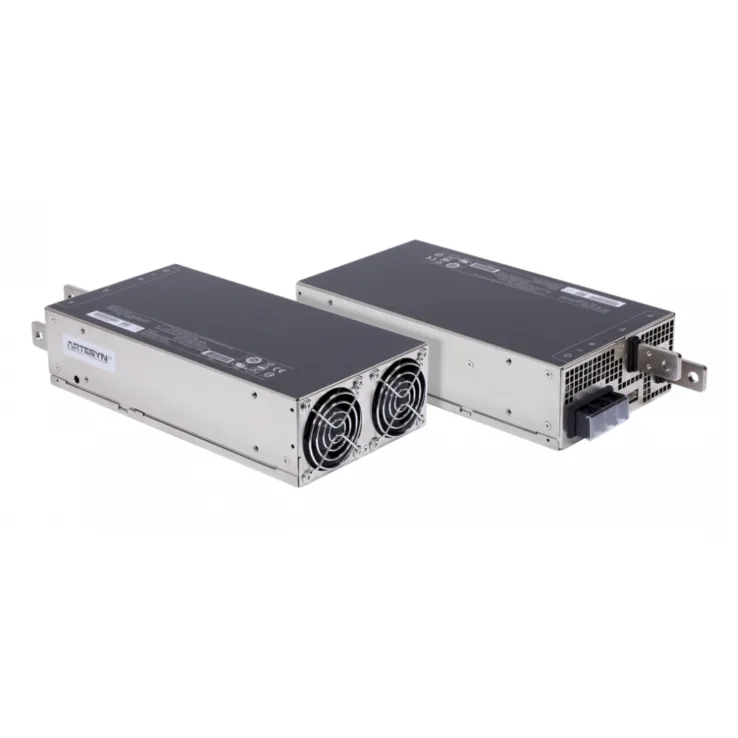

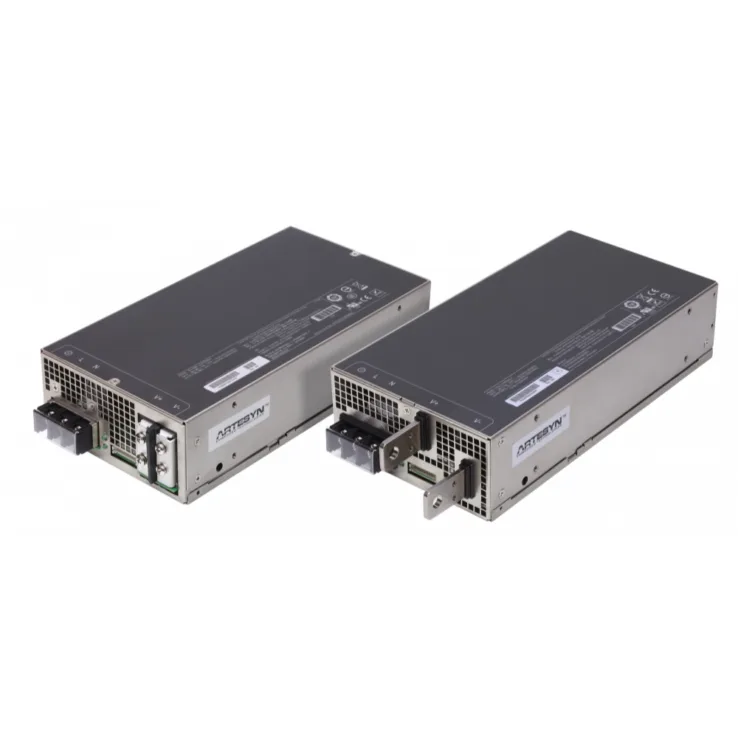

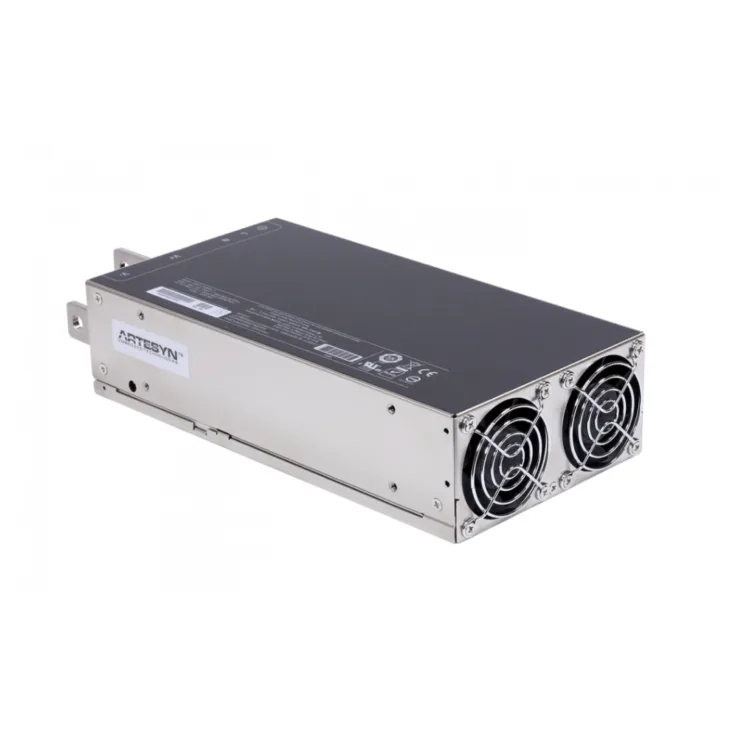

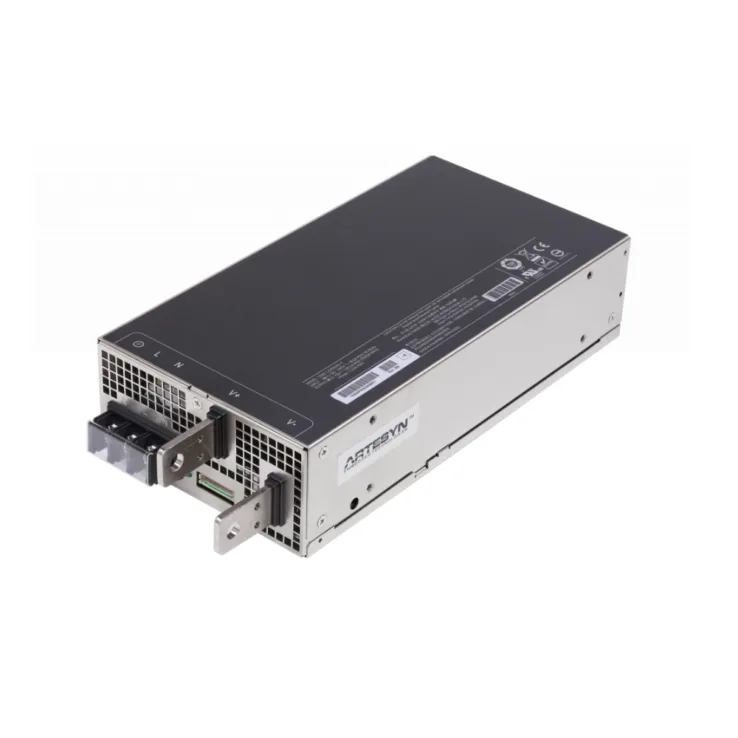

ARTESYN LCM1500 Enclosed Power Supplies 1500W

Models:	LCM1500L LCM1500N LCM1500Q LCM1500R LCM1500U LCM1500W
Manufacturer:	Advanced Energy
Type:	Enclosed Power Supplies

ARTESYN LCM1500 Features:

1500 W continuous output power for industrial and medical applications.
Six standard DC output variants: 12 V, 15 V, 24 V, 28 V, 36 V and 48 V.
±10% adjustable output voltage.
Optional 5 V DC / 2 A standby (housekeeping) output.
>89% typical efficiency at full load and 230 V AC.
0.99 typical power factor, meeting EN 61000-3-2.
DSP-controlled architecture.

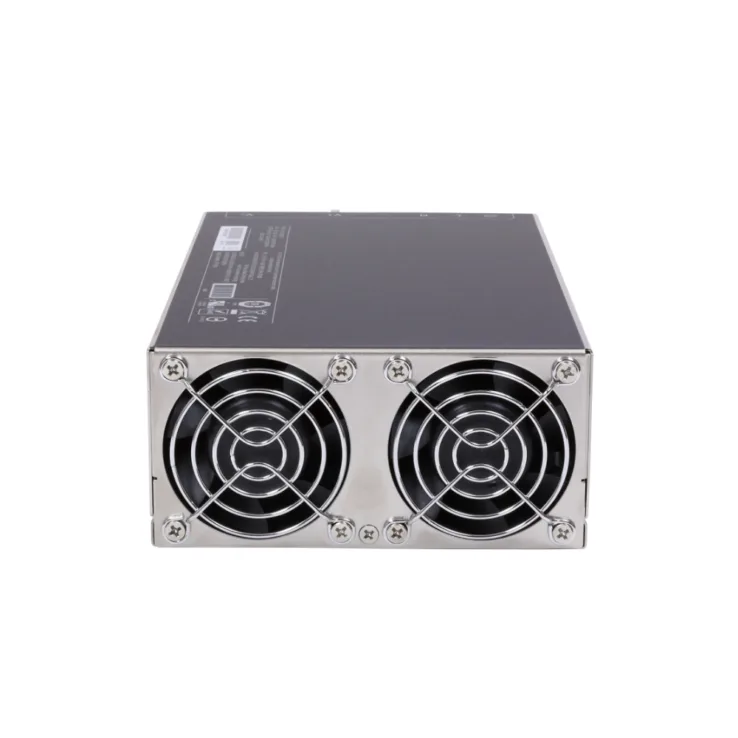

Variable-speed Smart Fans, automatically matching cooling to load requirements to reduce power consumption, noise and fan wear.
Optional conformal coating.
Optional reverse airflow.
Optional constant-current operation.
Margin programming.
Integrated OR-ing FET.
SEMI F47 compliance at high line.
Supports up to four units in parallel.
Remote sense with compensation up to 500 mV.
Short-circuit protection with bounce-mode recovery.
Overcurrent protection: 105–125% for the main output.
Overvoltage protection: 125–145% for the main output, with latch mode.
Overtemperature protection with automatic recovery.
2×MOPP reinforced isolation between primary and secondary, rated at 4000 V AC.

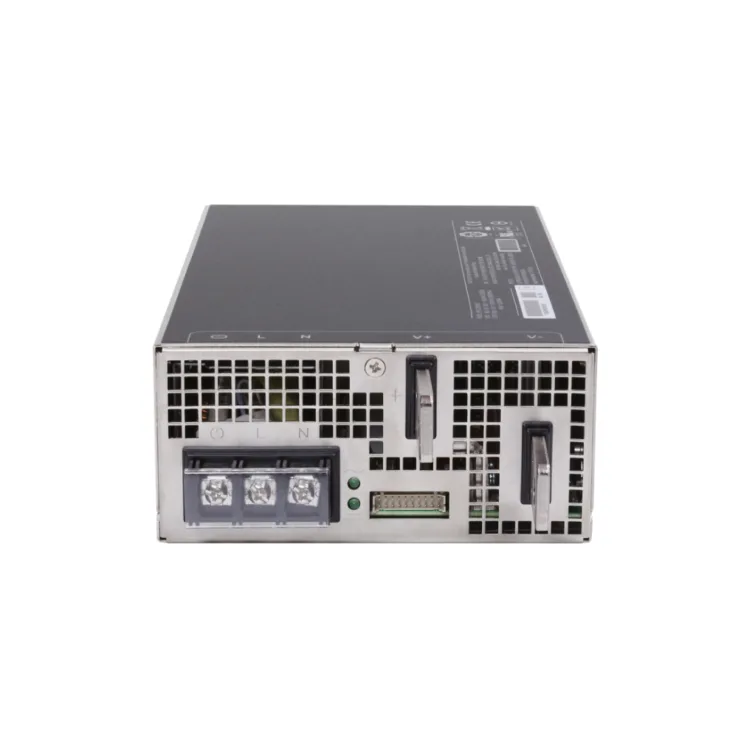

AC_OK and DC_OK status LEDs.
PS_INHIBIT/ENABLE remote output control.
I²C serial communication, EEPROM addressing and load-share signals.
<45 dBA fan noise at 80% load / 30°C for most versions; the L version is specified at <61 dBA at 80% load / 25°C.
Operating altitude up to 5,000 m.
300,000-hour minimum MTBF, with the specification also requiring demonstrated MTBF above 500,000 hours.
Minimum 10-year electrolytic capacitor life under the stated 25°C/full-load system conditions.
3-year transferable warranty.

Spec	LCM1500L	LCM1500N	LCM1500Q	LCM1500R	LCM1500U	LCM1500W
Wattage	1500	1500	1500	1500	1500	1500
Input Voltage	90–264 V AC, nominal 115/230 V AC	90–264 V AC, nominal 115/230 V AC	90–264 V AC, nominal 115/230 V AC	90–264 V AC, nominal 115/230 V AC	90–264 V AC, nominal 115/230 V AC	90–264 V AC, nominal 115/230 V AC
Output Current	133 A	100 A	67 A	53 A	43 A	33 A
Output Voltage	12 VDC	15 VDC	24 VDC	28 VDC	36 VDC	48 VDC
DC output adjustment	10.8–13.2 V	13.5–16.5 V	21.6–26.4 V	25.2–30.8 V	32.4–39.6 V	43.2–52.8 V
Dimensions	63.5 × 132 × 254 mm	63.5 × 132 × 254 mm	63.5 × 132 × 254 mm	63.5 × 132 × 254 mm	63.5 × 132 × 254 mm	63.5 × 132 × 254 mm
Working Temperature	-40°C to +70°C, with linear derating to 50% from 50°C to 70°C; 12 V “L” version derates from 45°C
Safety Standards	UL/CSA 62368-1, ANSI/AAMI ES60601-1, EN 62368-1, EN 60601-1, IEC 60601-1, CE LVD, CB, BSMI, CE, UKCA
EMC Standards	EN 61000 immunity, EN 61000-3-2 / IEC 1000-3-2 harmonics, EMI Class A
