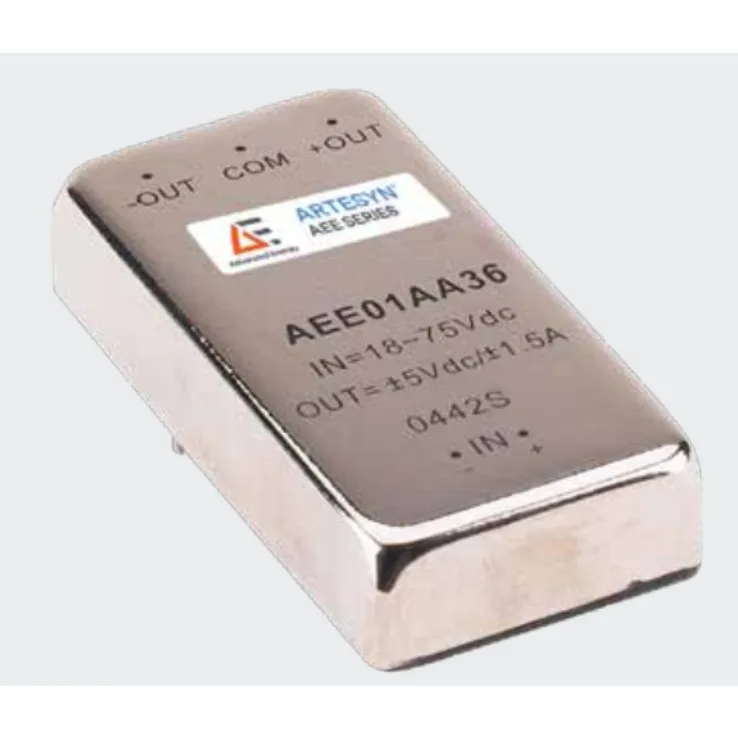

Artesyn AEE Series - 15 Watts DC-DC Power Supplies 13.2–15W

Models:	AEE04F18-LS AEE03A18-LS AEE01B18-LS AEE01C18-LS AEE01AA18-LS AEE00BB18-LS AEE00CC18-LS AEE04F36-LS AEE03A36-LS AEE01B36-LS AEE01C36-LS AEE01AA36-LS AEE00BB36-LS AEE00CC36-LS
Manufacturer:	Advanced Energy
Type:	DC-DC Power Supplies

Artesyn AEE Series - 15 Watts Features:

15W maximum output power (13.2W for 3.3V models)
High efficiency: up to 84% at 12V output
Wide 4:1 input voltage range
Compact 1" × 2" encapsulated package
Single and dual output configurations
1500V DC input-to-output isolation
Short-circuit protection with automatic restart
300kHz switching frequency
Output voltage tolerance of ±2%
Operating temperature down to -40°C
No power derating up to +71°C
High reliability with MTBF exceeding 1 million hours
RoHS-6 compliant
Suitable for industrial automation, instrumentation, test and measurement, and telecommunications

Spec	AEE04F18-LS	AEE03A18-LS	AEE01B18-LS	AEE01C18-LS	AEE01AA18-LS	AEE00BB18-LS	AEE00CC18-LS	AEE04F36-LS	AEE03A36-LS	AEE01B36-LS	AEE01C36-LS	AEE01AA36-LS	AEE00BB36-LS	AEE00CC36-LS
Wattage	13.2	15	15	15	15	15	15	13.2	15	15	15	15	15	15
Input Voltage	9 - 36 V	9 - 36 V	9 - 36 V	9 - 36 V	9 - 36 V	9 - 36 V	9 - 36 V	18 - 75 V	18 - 75 V	18 - 75 V	18 - 75 V	18 - 75 V	18 - 75 V	18 - 75 V
Output Voltage	3.3 V @ 4 A	5 V @ 3 A	12 V @ 1.25 A	15 V @ 1 A	5 V @ 1.5 A	12 V @ 0.625 A	15 V @ 0.5 A	3.3 V @ 4 A	5 V @ 3 A	12 V @ 1.25 A	15 V @ 1 A	5 V @ 1.5 A	12 V @ 0.625 A	15 V @ 0.5 A
Output Voltage Options					Output 2 -5 V @ 1.5 A	Output 2: -12 V @ 0.625 A	Output 2: -15 V @ 0.5 A					Output 2: -5 V @ 1.5 A	Output 2: -12 V @ 0.625 A	Output 2: -15 V @ 0.5 A
Dimensions	50.8 × 25.4 × 11.3 mm	50.8 × 25.4 × 11.3 mm	50.8 × 25.4 × 11.3 mm	50.8 × 25.4 × 11.3 mm	50.8 × 25.4 × 11.3 mm	50.8 × 25.4 × 11.3 mm	50.8 × 25.4 × 11.3 mm	50.8 × 25.4 × 11.3 mm	50.8 × 25.4 × 11.3 mm	50.8 × 25.4 × 11.3 mm	50.8 × 25.4 × 11.3 mm	50.8 × 25.4 × 11.3 mm	50.8 × 25.4 × 11.3 mm	50.8 × 25.4 × 11.3 mm
Working Temperature	-40°C to +71°C (no derating)
Safety Standards	UL 62368-1 safety requirements and carries CE marking, with 1500V DC input-to-output isolation and automatic restart short-circuit protection.
