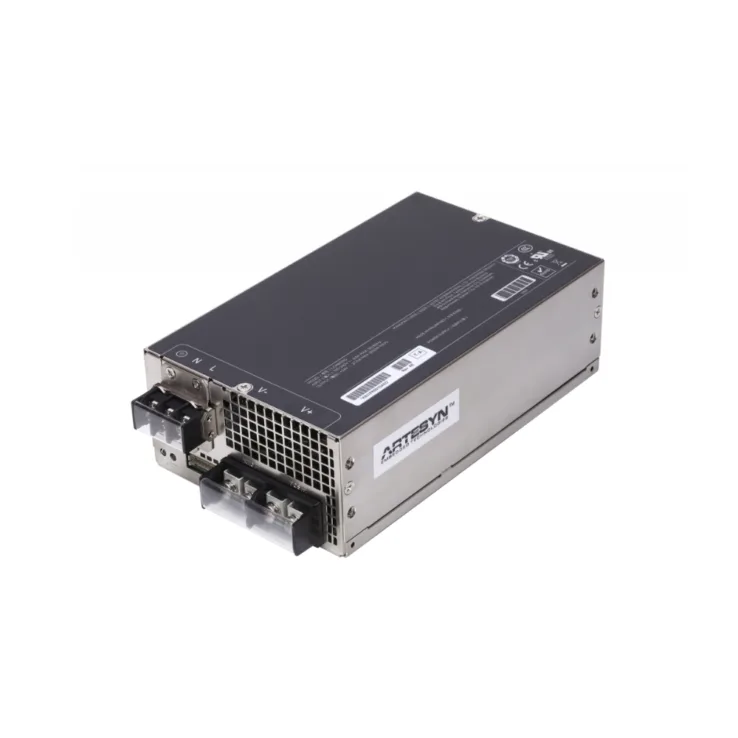

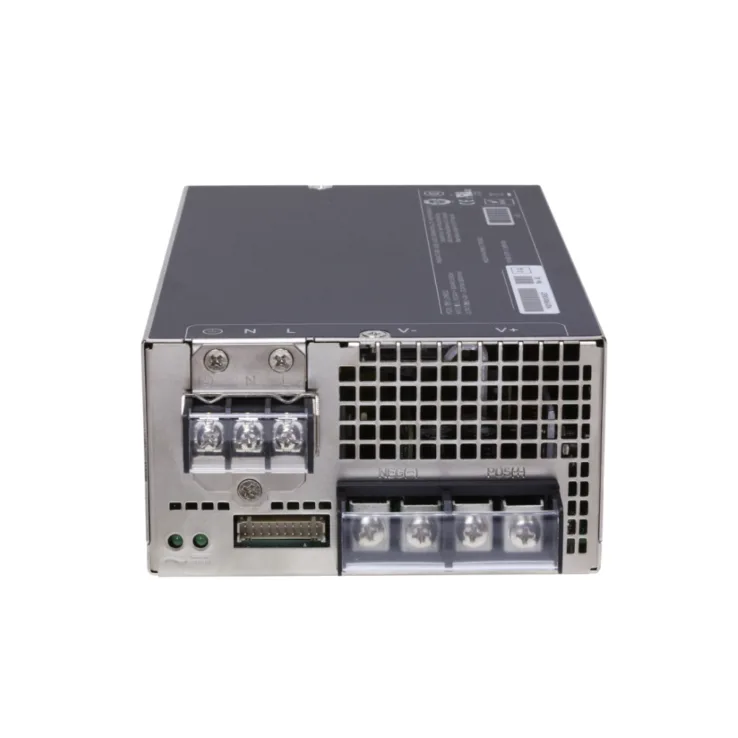

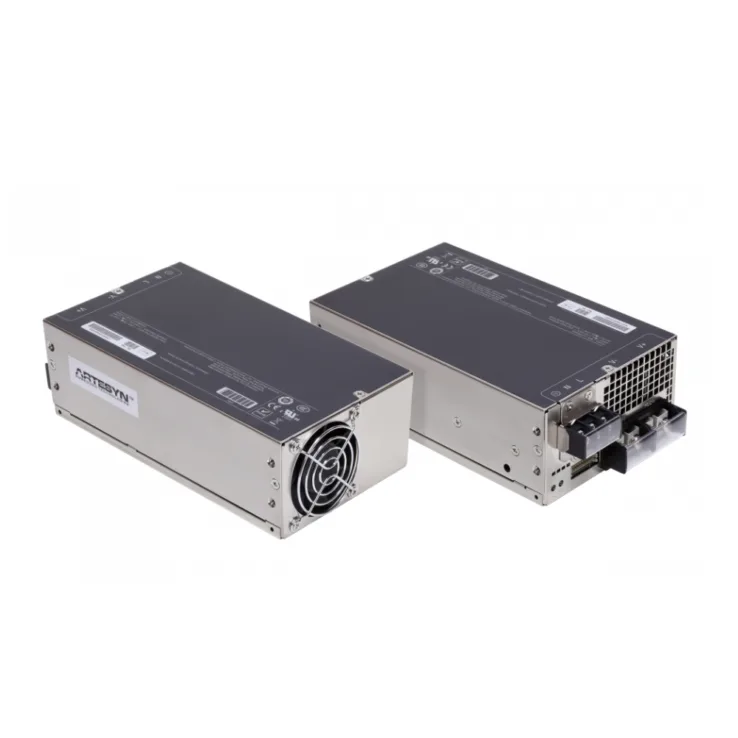

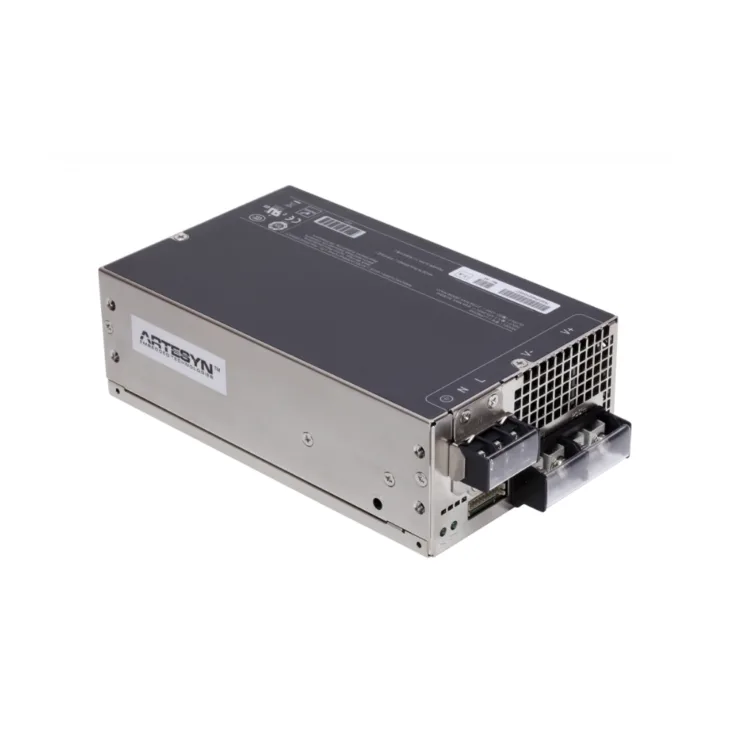

ARTESYN LCM600 Enclosed Power Supplies 600W

ARTESYN LCM600 Features:

600 W continuous output.
Five main-output variants: 12 V, 15 V, 24 V, 36 V and 48 V DC.
±20% output-voltage adjustment range.
Optional 5 V / 2 A housekeeping/standby output.
Universal 85–264 V AC input.
89% typical full-load efficiency.
0.99 typical power factor and EN 61000-3-2 compliance.
DSP-controlled front end.
Variable-speed Smart Fans.
Optional low-noise fan, conformal coating, terminal-block input and constant-current mode.
Margin programming and integrated OR-ing FET.
SEMI F47 compliance at high line.
Supports up to 10 units in parallel.
Forced load sharing to within 10% of shared outputs.
Remote sense with compensation up to 500 mV.
Short-circuit protection with bounce mode.
Overcurrent protection: 105–125% main output.
Overvoltage protection: 125–145% main output.
Overtemperature protection monitoring both PFC and output converter.
Fan-fault protection on the low-noise “-N” version.
4000 V AC reinforced 2×MOPP primary-to-secondary isolation, supporting medical applications.
I²C communication, EEPROM addressing, load-share signal and remote voltage programming connections.
AC_OK and DC_OK status indicators.
PS_INHIBIT/ENABLE remote output control.
Standard fan noise specified at <45 dBA at 80% load / 30°C; low-noise version specified at <35 dBA under the same conditions.
Operating altitude up to approximately 5,000 m / 16,404 ft.
300,000-hour minimum MTBF, with a demonstrated MTBF requirement of >500,000 hours.

Spec	LCM600L	LCM600N	LCM600Q	LCM600U	LCM600W
Wattage	600	600	600	600	600
Input Voltage	85–264 V AC, nominal 115/230 V AC	85–264 V AC, nominal 115/230 V AC	85–264 V AC, nominal 115/230 V AC	85–264 V AC, nominal 115/230 V AC	85–264 V AC, nominal 115/230 V AC
Output Current	52 A	44 A	27 A	16.7 A	13 A
Output Voltage	12 VDC	15 VDC	24 VDC	36 VDC	48 VDC
DC output adjustment	9.6–14.4 V	12.0–19.5 V	19.2–28.8 V	28.8–43.2 V	38.4–57.6 V
Dimensions	61 × 114.3 × 190.5	61 × 114.3 × 190.5	61 × 114.3 × 190.5	61 × 114.3 × 190.5	61 × 114.3 × 190.5
Working Temperature	-40°C to +70°C, linear derating to 50% from 50°C to 70°C
Safety Standards	UL/CSA 62368-1, EN 62368-1, IEC 60950-1, IEC 60601-1, ES60601-1 / CSA C22.2 No. 60601-1, EN 60601-1, CCC GB4943, CE, UKCA
EMC Standards	EMI Class B, EN 61000 immunity, EN/IEC 61000-3-2 harmonics; tested to IEC 60601-1-2 4th Edition
