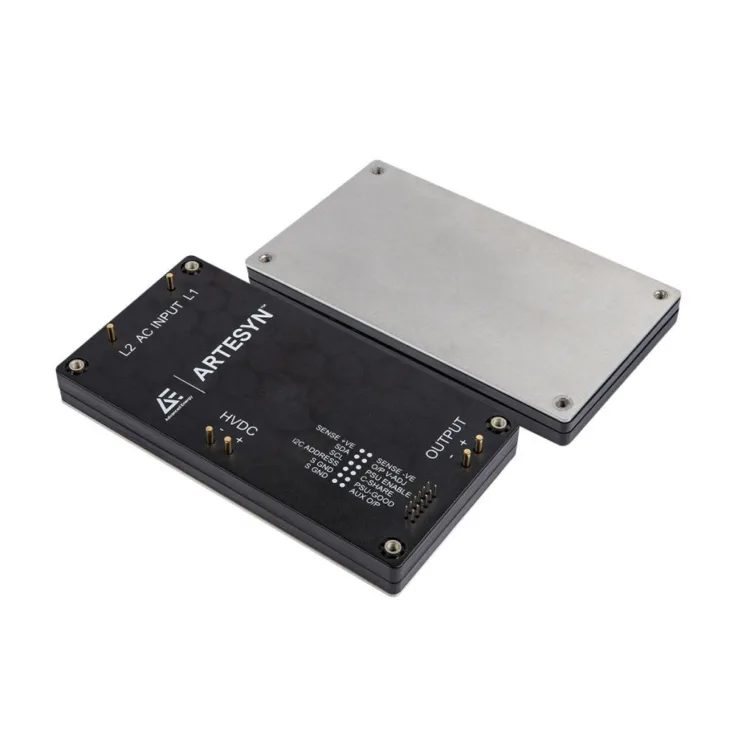

Artesyn AIF500-ACDC Series – 504W AC/DC Converter 504W
Download Datasheet
| Models: |
|
| Manufacturer: | Advanced Energy |
Artesyn AIF500-ACDC Series – 504W AC/DC Converter Features:
Main Features
- 504W continuous output power
- High efficiency: up to 93%
- Wide 90–264V AC input voltage range
- Fully encapsulated, low-profile full-brick design
- Baseplate optimised for contact cooling
- Single fully regulated DC output
- Available in 12V, 24V, 28V and 48V output configurations
- 4000V DC input-to-output isolation
- Undervoltage, overvoltage and overcurrent protection
- Internal inrush current limiter
- No minimum load requirement
- Remote enable and Power-Good status signal
- Active current sharing capability
- PMBus digital communication
- Auxiliary 8–11V DC output
- Wide operating temperature range of -40°C to +85°C
- Two-year warranty
| Wattage | 504 | 504 | 504 | 504 |
|---|---|---|---|---|
| Input Voltage | 100 to 240 VAC | 100 to 240 VAC | 100 to 240 VAC | 100 to 240 VAC |
| Output Voltage | 12 VDC at 42 A | 24 VDC at 21 A | 28 VDC at 18 A | 48 VDC at 10.5 A |
| Dimensions | 116.84 × 60.96 × 13.95 mm | 116.84 × 60.96 × 13.95 mm | 116.84 × 60.96 × 13.95 mm | 116.84 × 60.96 × 13.95 mm |
| Working Temperature | -40°C to +85°C ambient (100°C maximum baseplate temperature) | |||
| Safety Standards | Approved to EN, UL/cUL and IEC/EN 62368-1 safety standards with CE marking, featuring 4000V DC input-to-output isolation and integrated undervoltage, overvoltage and overcurrent protection | |||
| EMC Standards | The converter features a typical power factor of 0.99 above 300W load and less than 10% total harmonic distortion | |||
More Power Supplies from Advanced Energy
Artesyn AIF06ZPFC Series - 2400W PFC Converter
Artesyn AIF06ZPFC Series - 2400W PFC Converter
PFC Modules by Advanced Energy
advanced-energy
pfc-modules
2400
6A maximum (high-line) / 3.5A (low-line)
other
Artesyn AIF-PFC Series - 1600W Power Factor Correction Module
Artesyn AIF-PFC Series - 1600W Power Factor Correction Module
PFC Modules by Advanced Energy
advanced-energy
pfc-modules
1600
4.2A nominal output
other

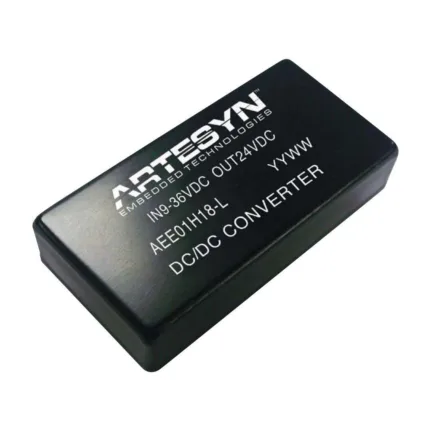

ARTESYN AEE Series - 50 Watts
ARTESYN AEE Series - 50 Watts
DC-DC Power Supplies by Advanced Energy
advanced-energy
dc-dc-power-supplies
33 50 50 50 50 33 50 50 50 50
3.3 V @ 10 A 5 V @ 10 A 12 V @ 4.17 A 15 V @ 3.33 A 24 V @ 2.08 A 3.3 V @ 10 A 5 V @ 10 A 12 V @ 4.17 A 15 V @ 3.33 A 24 V @ 2.08 A
other other other other other other other other other other

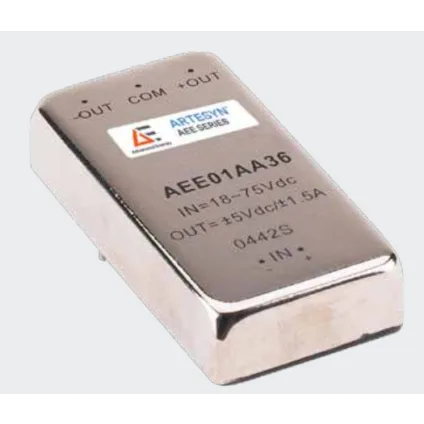

Artesyn AEE Series - 15 Watts
Artesyn AEE Series - 15 Watts
DC-DC Power Supplies by Advanced Energy
advanced-energy
dc-dc-power-supplies
13.2 15 15 15 15 15 15 13.2 15 15 15 15 15 15
other other other other other other other other other other other other other other

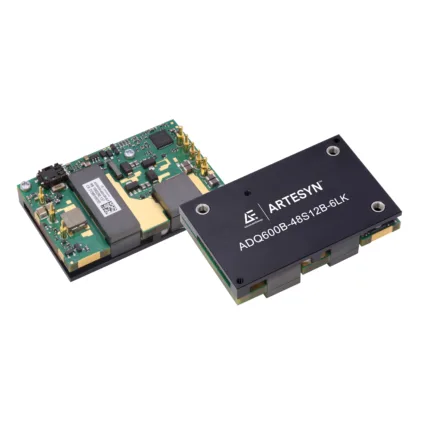

Artesyn ADQ600B Series – 600W DC/DC Converter
Artesyn ADQ600B Series – 600W DC/DC Converter
DC-DC Power Supplies by Advanced Energy
advanced-energy
dc-dc-power-supplies
600
50A maximum output
other

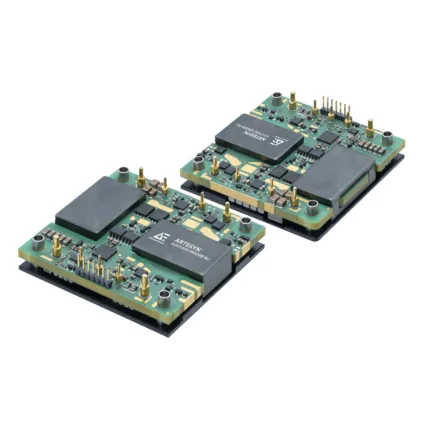

ARTESYN ADH1300-48S28 SERIES
