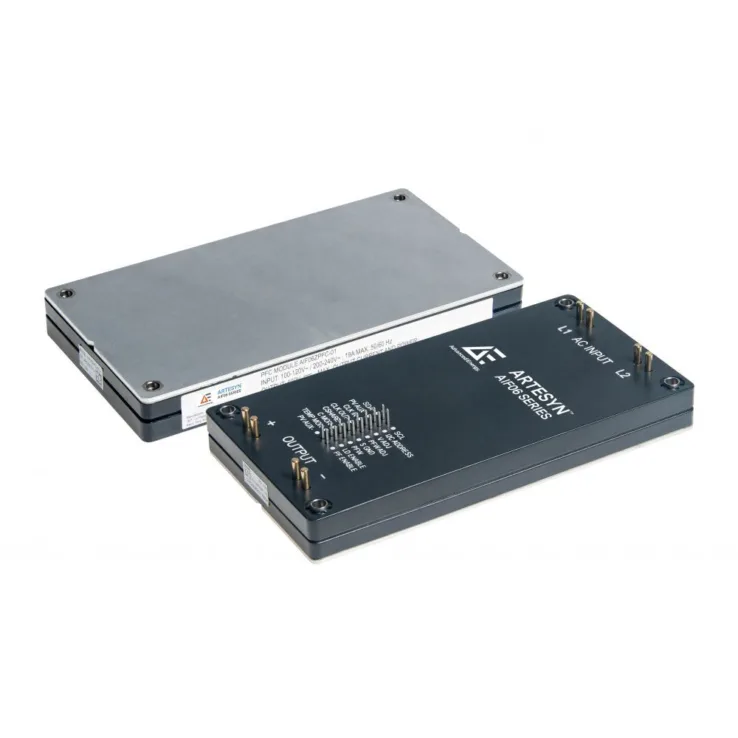

Artesyn AIF06ZPFC Series - 2400W PFC Converter PFC Modules
Download Datasheet
| Models: |
|
| Manufacturer: | Advanced Energy |
| Type: | PFC Modules |
Artesyn AIF06ZPFC Series - 2400W PFC Converter Features:
Main Features
- 2400W continuous output power at high-line input
- 1400W continuous output power at low-line input
- Ultra-high efficiency: up to 97.3%
- Wide 85–264V AC input voltage range
- Single, non-isolated 400V DC output
- Near-unity power factor (0.99 typical)
- Compact, industry-standard full-brick design
- High power density of 395W/in³
- Baseplate optimised for contact cooling or heatsink mounting
- Parallel operation with current sharing capability
- Programmable phase-shift angle for parallel applications
- PMBus communication interface
- Fixed 280kHz switching frequency
- Pre-bias start-up capability
- Internal inrush current limiting (01 version only)
- Overvoltage, overcurrent and overtemperature protection
- RoHS-6 compliant
- Two-year warranty
| Wattage | 2400 |
|---|---|
| Input Voltage | 85-264 Vac input range |
| Output Current | 6A maximum (high-line) / 3.5A (low-line) |
| Output Voltage | 400V DC nominal |
| Dimensions | 116.8 × 61.0 × 13.95 mm |
| Working Temperature | -25°C to +100°C (maximum baseplate temperature) |
| Safety Standards | Complies with UL 62368-1, CSA C22.2 No. 62368-1 and CE EN 62368-1 safety requirements, featuring UL94 V-0 rated materials and integrated overvoltage, overcurrent and overtemperature protection. |
| EMC Standards | Designed to meet IEC 61000-3-2 harmonic distortion requirements for single-module operation and IEC 61000-3-12 for parallel configurations |
