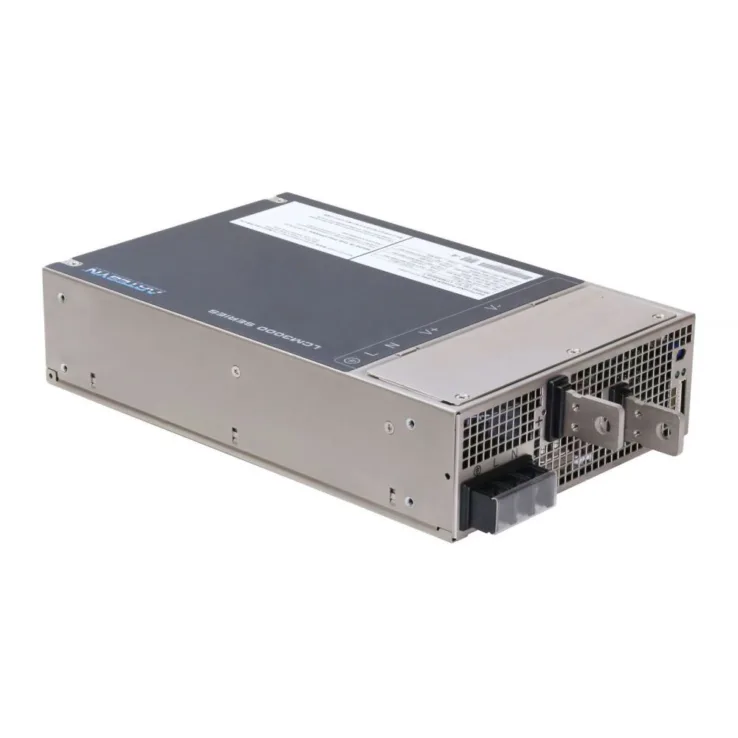

ARTESYN LCM3000 Enclosed Power Supplies 3000W
Download Datasheet
| Models: |
|
| Manufacturer: | Advanced Energy |
| Type: | Enclosed Power Supplies |
ARTESYN LCM3000 Features:
- 3000 W maximum output power
- 90–264 V AC / 128–370 V DC universal input
- 12 V, 18 V, 24 V, 36 V, 48 V and 72 V DC output options
- Up to 250 A output current
- >90% typical efficiency
- 5 V / 2 A housekeeping output
- DSP-controlled operation
- Variable-speed Smart Fans
- ±25% output voltage adjustment; up to +33% on LCM30007-T
- V-programming from 20–125%; up to 133% on LCM30007-T
- VAR configurable for different voltage configurations from a single unit
- Supports up to 8 units in parallel
- Digital forced load sharing
- Remote sense with up to 500 mV compensation
- Short-circuit protection
- Overcurrent protection
- Overvoltage protection
- Overtemperature protection
- I²C communication
- AC_OK and DC_OK LED indicators
- Remote inhibit/enable control
- Optional conformal coating
- Optional reverse airflow
- SEMI F47 compliant at high line
- 2×MOPP reinforced isolation
- Suitable for industrial and medical applications
- -40°C to +70°C operating temperature with derating
- Five-year warranty
| Wattage | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
|---|---|---|---|---|---|---|
| Input Voltage | 90–264 V AC / 128–370 V DC | 90–264 V AC / 128–370 V DC | 90–264 V AC / 128–370 V DC | 90–264 V AC / 128–370 V DC | 90–264 V AC / 128–370 V DC | 90–264 V AC / 128–370 V DC |
| Output Current | 250 A | 166.7 A | 125 A | 83.3 A | 62.5 A | 41.7 A |
| Output Voltage | 12 V | 18 V | 18 V | 24 V | 48 V | 72 V |
| DC output adjustment | 9–15 V | 13.5–22.5 V | 18–30 V | 27–45 V | 36–60 V | 54–96 V |
| Dimensions | 63.5 × 177.8 × 279.4 | 63.5 × 177.8 × 279.4 | 63.5 × 177.8 × 279.4 | 63.5 × 177.8 × 279.4 | 63.5 × 177.8 × 279.4 | 63.5 × 177.8 × 279.4 |
| Working Temperature | -40°C to +70°C, derating from 50°C | |||||
| Safety Standards | UL/CSA 62368-1, ANSI/AAMI ES60601-1, EN 62368-1, EN 60601-1, IEC 60950-1, IEC 60601-1, IEC 62368-1, CE, UKCA | |||||
| EMC Standards | EMI Class A (6 dB margin), EN 61000 immunity, EN/IEC 61000-3-2, IEC 60601-1-2 4th Edition | |||||
