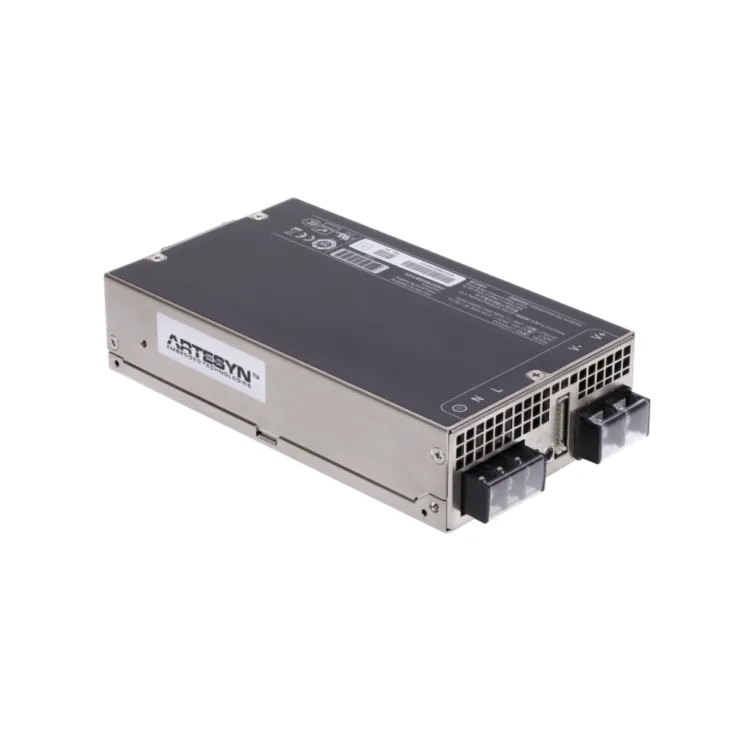

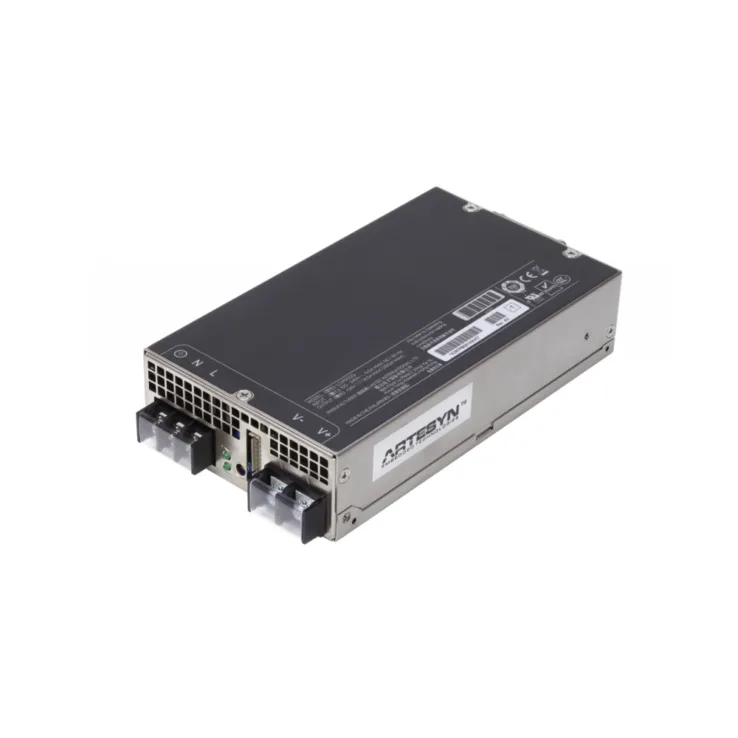

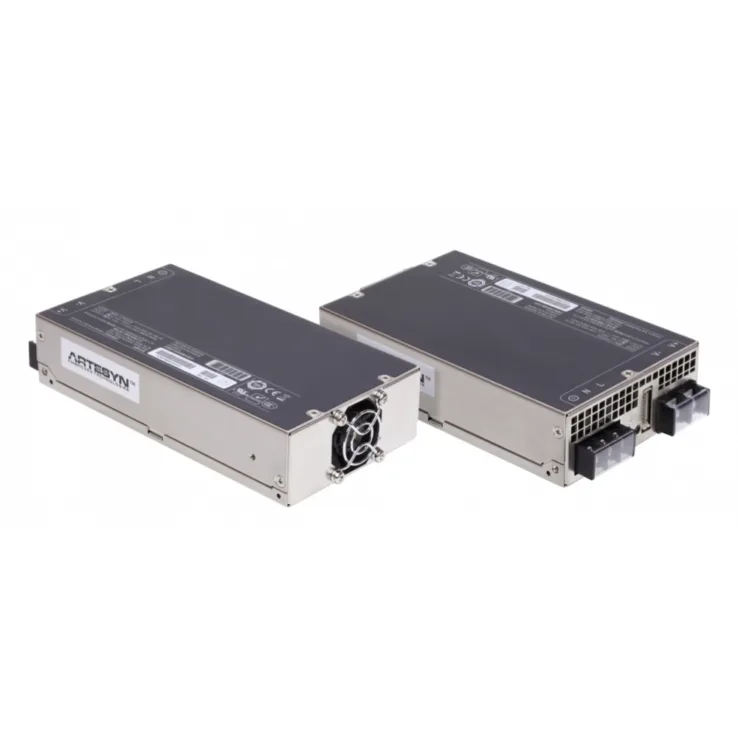

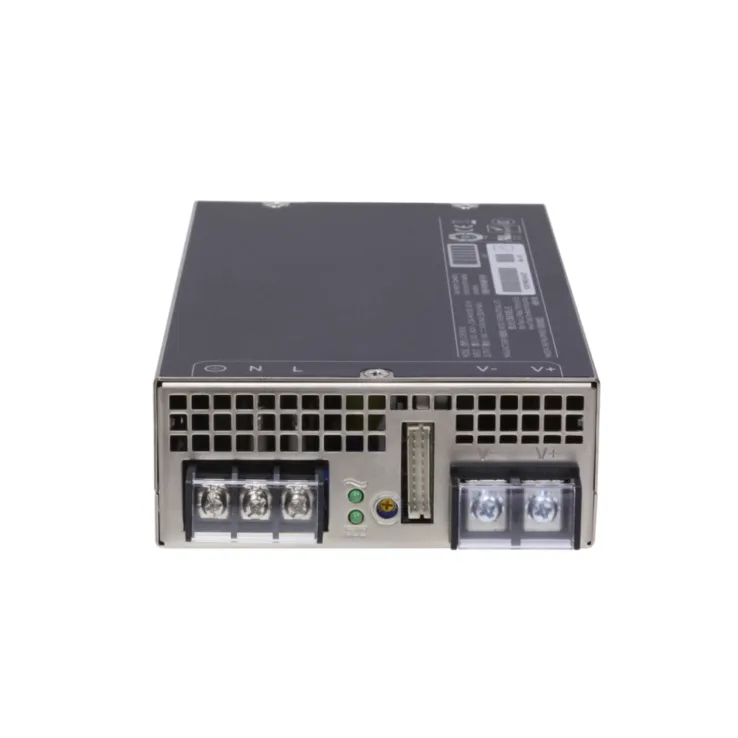

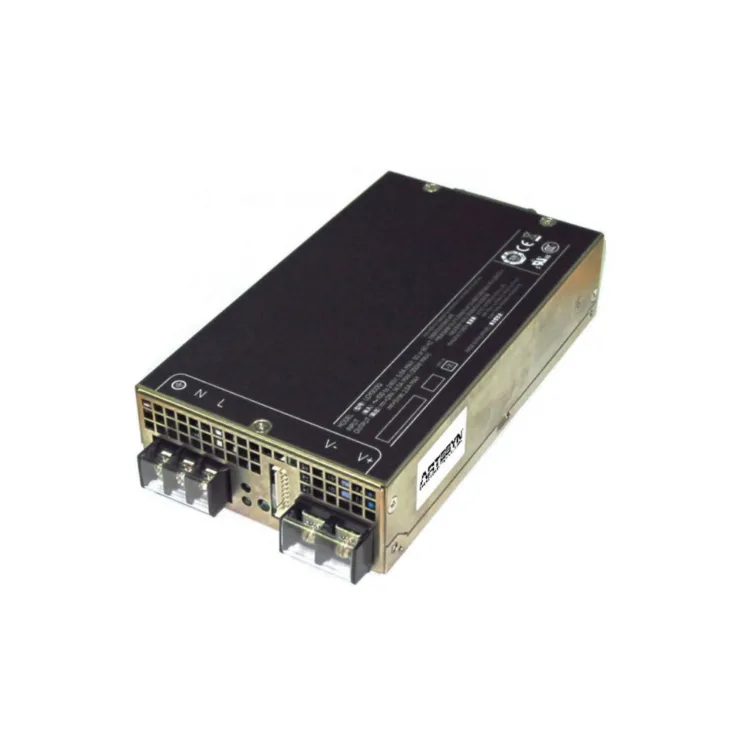

ARTESYN LCM300 Enclosed Power Supplies 310W

ARTESYN LCM300 Features:

310 W continuous output, with 360 W capability on 24 V and 36 V models
90–264 V AC universal operating input
12 V, 15 V, 24 V, 36 V and 48 V DC output options
Up to 25 A output current
>91% typical efficiency at full load / 230 V AC
0.98 typical power factor
Optional 5 V / 2 A housekeeping/standby output
Wide output-voltage adjustment range
DSP-controlled operation
Variable-speed Smart Fans
PMBus compliant
I²C serial communication
Margin programming
Integrated OR-ing FET
Supports up to 10 units in parallel
Forced load sharing
Remote sense with up to 500 mV compensation
Short-circuit protection
Overcurrent protection
Overvoltage protection
AC_OK and DC_OK LED indicators
Remote inhibit/enable control
Optional conformal coating
2×MOPP reinforced primary-to-secondary isolation
EMI Class B
Suitable for industrial and medical applications
-40°C to +70°C operating range with derating
<45 dBA fan noise at 80% load / 40°C
300,000-hour minimum MTBF under the stated calculation conditions; datasheet also specifies demonstrated MTBF >500,000 hours
3-year transferable warranty

Spec	LCM300L	LCM300N	LCM300Q	LCM300U	LCM300W
Wattage	310	310	310	310	310
Input Voltage	90–264 V AC operating, 115/230 V AC nominal	90–264 V AC operating, 115/230 V AC nominal	90–264 V AC operating, 115/230 V AC nominal	90–264 V AC operating, 115/230 V AC nominal	90–264 V AC operating, 115/230 V AC nominal
Output Current	25 A	20 A	14.5 A	9.7 A	6.3 A
Output Voltage	12V	15V	24V	36V	48V
DC output adjustment	9.6–14.4 V	14.25–19.5 V	19.2–28.8 V	28.8–43.2 V	43.0–60.0 V
Dimensions	41 × 101.6 × 177.8	41 × 101.6 × 177.8	41 × 101.6 × 177.8	41 × 101.6 × 177.8	41 × 101.6 × 177.8
Working Temperature	-40°C to +70°C, linear derating to 50% from 50°C to 70°C
Safety Standards	UL 62368-1, UL 1598/1433, UL 60601-1 Ed. 3, CSA 62368-1, TÜV 62368-1 / 60601-1, China CCC, CB Scheme, CE, UKCA
EMC Standards	EMI Class B, EN 61000 immunity, IEC/EN 61000-3-2; IEC 60601-1-2 4th Edition medical testing
