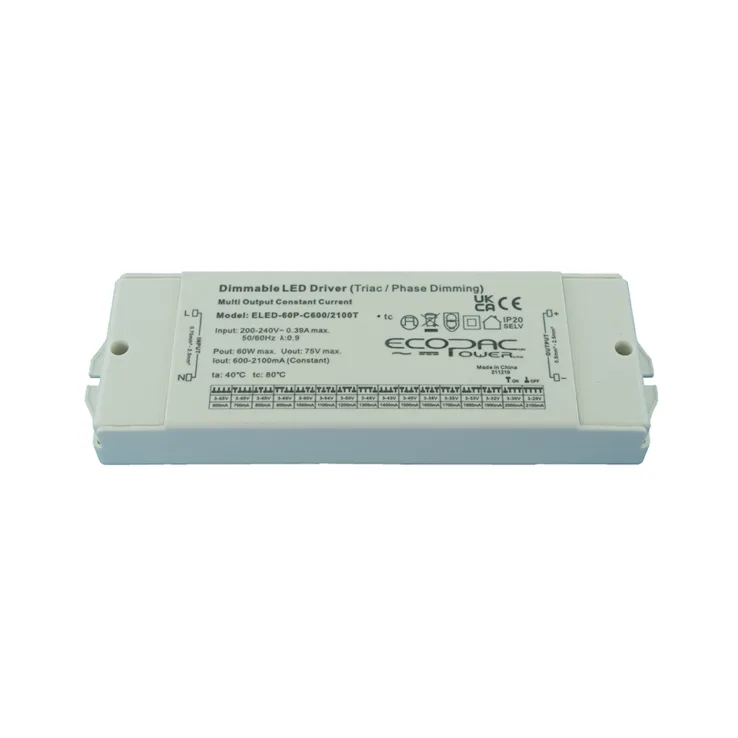

ELED-60P-C600-2100T Series TRIAC Dimmable Constant Current LED Drivers 39–60W

Download Datasheet
Models:
  • ELED-60P-C600-2100T(C600mA)
  • ELED-60P-C600-2100T(C700mA)
  • ELED-60P-C600-2100T(C800mA)
  • ELED-60P-C600-2100T(C900mA)
  • ELED-60P-C600-1200T(C1000mA)
  • ELED-60P-C600-2100T(C1100mA)
  • ELED-60P-C600-2100T(C1200mA)
  • ELED-60P-C600-1200T(C1300mA)
  • ELED-60P-C600-2100T(C1400mA)
  • ELED-60P-C600-2100T(C1500mA)
  • ELED-60P-C600-2100T(C1600mA)
  • ELED-60P-C600-2100T(C1700mA)
  • ELED-60P-C600-2100T(C1800mA)
  • ELED-60P-C600-2100T(C1900mA)
  • ELED-60P-C600-2100T(C2000mA)
  • ELED-60P-C600-2100T(C2100mA)
Manufacturer: ELED
Type: Constant Current LED Drivers

ELED-60P-C600-2100T Series Features:

Features:

• Constant Current mode output with multiple levels selectable by dip switch

• Dimming function: Triac/phase cut dimming

• Work with leading or trailing edge Triac dimmer

• (ON key: leading edge; 1 key: trailing edge)

• AC input: 200-240VAC

• Built-in active PFC function

• Efficiency up to 83%

• IP20 design for indoor installation

• Full protection plastic housing easy installation

• Protections: Short circuit/ Over load

• Cooling by free air convection

• Suitable for LED lighting and moving sign applications

• Strong compatibility, flicker-free dimming

Wattage 39 45.5 52 58.5 60 60 60 60 60 60 60 60 60 60 60 60
Input Voltage 200~240 200~240VAC 200~240VAC 200~240VAC 200~240 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC
Output Current 600 700 800 900 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000 2100
Output Voltage 3~65 3~65 3~65 3~65 3~60 3~55 3~50 3~46 3~43 3~40 3~38 3~35 3~33 3~32 3~30 3~39
Dimensions 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm 192.5 x 62 x 24 mm
Working Temperature -40~60°C
Safety Standards EN61347-1, EN61347-2-13, UL8750
EMC Standards Compliance to EN55015, EN61000-3-2,3 (≥50% load), FCC Part 15B
