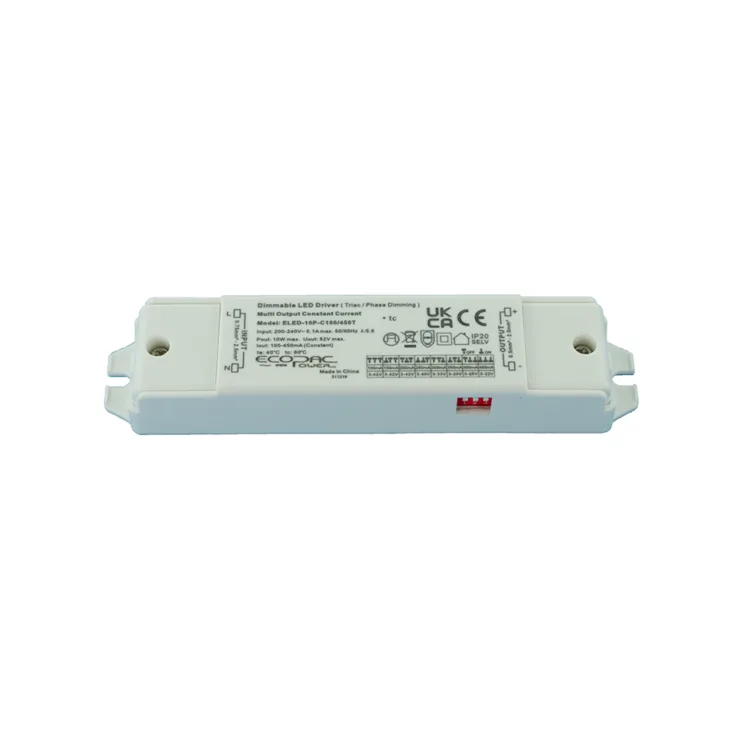

ELED-10P-C100-450T Series Constant Current LED Drivers 4.2–10W

Download Datasheet
Models:
  • ELED-10P-C450T
  • ELED-10P-C400T
  • ELED-10P-350T
  • ELED-10P-C300T
  • ELED-10P-C250T
  • ELED-10P-C200T
  • ELED-10P-C150T
  • ELED-10P-C100T
Manufacturer: ELED
Type: Constant Current LED Drivers

ELED-10P-C100-450T Series Features:

Features:

• Constant Current mode output with multiple levels selectable by dip switch

• Dimming function: Triac/phase cut dimming

• Work with leading or trailing edge Triac dimmer

• (ON key: leading edge; 1 key: trailing edge)

• AC input: 200-240VAC

• Built-in active PFC function

• Efficiency up to 75%

• IP20 design for indoor installation

• Full protection plastic housing easy installation

• Protections: Short circuit/ Over load

• Cooling by free air convection

• Suitable for LED lighting and moving sign applications

• Strong compatibility, flicker-free dimming

Wattage 10 10 10 10 10 8.4 6.3 4.2
Input Voltage 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC
Output Current 450 400 350 300 250 200 150 100
Output Voltage 3~22 3~25 3~28 3~33 3~40 3~42 3~42 3~42
Dimensions 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm
Working Temperature -40~60°C
Safety Standards EN61347-1, EN61347-2-13, UL8750
EMC Standards Compliance to EN55015, EN61000-3-2,3 (≥50% load), FCC Part 15B
