| Models: |
|
| Manufacturer: | ELED |
| Type: | Constant Current LED Drivers |

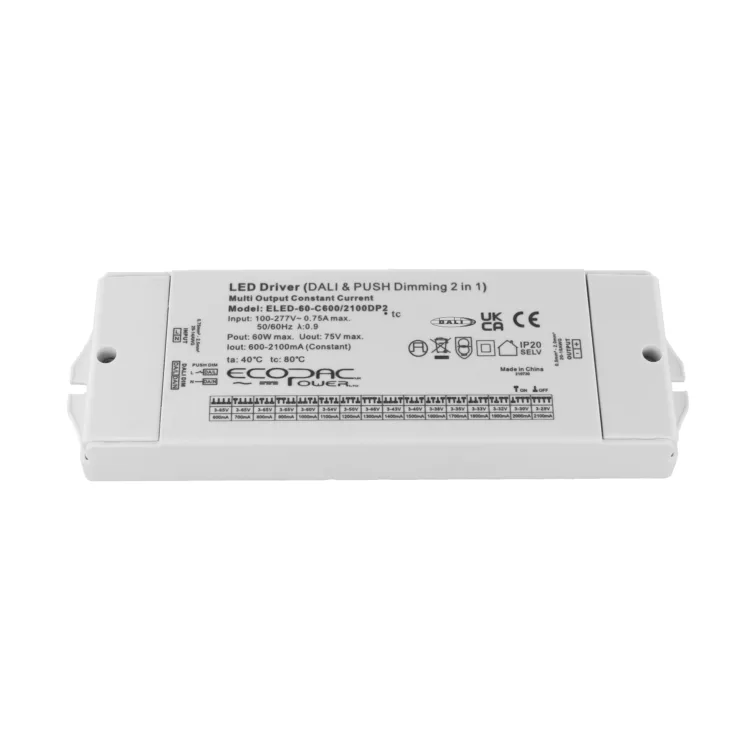

60W DALI 2 and Push Dimming Multiple-Stage Output Current LED Driver
Features:
Contant current mode output with multiple levels selectable by dip switch
DALI2 dimming function (IEC63286)
Compatible with DALI and DALI2 dimming system
AC input: 100-277VAC
Built-in active PFC function
Efficiency up to 86%
Protections: Short circuit/ Over load/Over temperature
Cooling by free air convection
Suitable for intelligent LED lighting
| Wattage | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 58.5 | 52 | 45.5 | 39 |
| Input Voltage | 100~277VAC | 100~277VAC | 100~277VAC | 100~277VAC | 100~277VAC | 100~277VAC | 100~277VAC | 100~277VAC | 100~277VAC | 100~277VAC | 100~277VAC | 100~277VAC | 100~277VAC | 100~277VAC | 100~277VAC | 100~277VAC |
| Output Current | 2100mA | 2000mA | 1900mA | 1800mA | 1700mA | 1600mA | 1500mA | 1400mA | 1300mA | 1200mA | 1100mA | 1000mA | 900mA | 800mA | 700mA | 600mA |
| Output Voltage | 3~29 | 3~30 | 3~32 | 3~33 | 3~35 | 3~38 | 3~40 | 3~43 | 3~46 | 3~50 | 3~55 | 3~60 | 3~65 | 3~65 | 3~65 | 3~65 |
| Dimensions | 192.5x62x 24 mm | 192.5x62x 24 mm | 192.5x62x 24 mm | 192.5x62x 24 mm | 192.5x62x 24 mm | 192.5x62x 24 mm | 192.5x62x 24 mm | 192.5x62x 24 mm | 192.5x62x 24 mm | 192.5x62x 24 mm | 192.5x62x 24 mm | 192.5x62x 24 mm | 192.5x62x 24 mm | 192.5x62x 24 mm | 192.5x62x 24 mm | 192.5x62x 24 mm |
| Working Temperature | -40~80°C | |||||||||||||||
| Safety Standards | EN61347-1, EN61347-2-13, UL8750 | |||||||||||||||
| EMC Standards | Compliance to EN55015, EN61000-3-2,3 (≥50% load), FCC Part 15B | |||||||||||||||
