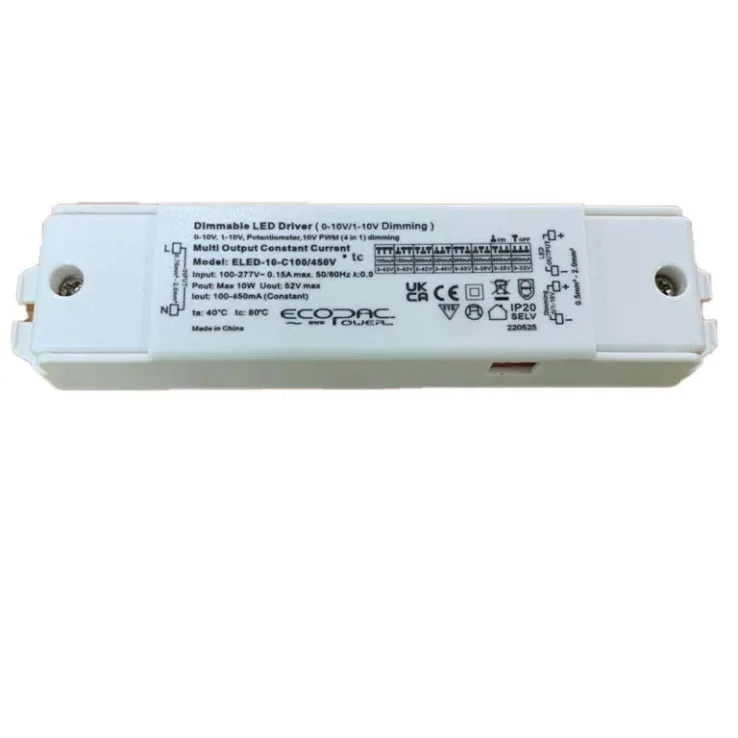

ELED-10-C100/450V Series 0-10V Dimmable Constant Current LED Drivers 10W

Download Datasheet
Models:
  • ELED-10-C100/450V(450mA)
  • ELED-10-C100/450V(400mA)
  • ELED-10-C100/450V(350mA)
  • ELED-10-C100/450V(300mA)
  • ELED-10-C100/450V(250mA)
  • ELED-10-C100/450V(200mA)
  • ELED-10-C100/450V(150mA)
  • ELED-10-C100/450V(100mA)
Manufacturer: ELED
Type: Constant Current LED Drivers

ELED-10-C100/450V Series Features:

Features:

• Constant Current mode output with multiple levels selectable by dip switch

• 0/1-10V Dimming Control

• AC input: 100-277VAC

• Built-in active PFC function

• Efficiency up to 78%

• Protections: Short circuit/ Over load/Over temperature

• Cooling by free air convection

Wattage 10 10 10 10 10 10 10 10
Input Voltage 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277vVAC
Output Current 450mA 400mA 350mA 300mA 250mA 200mA 150mA 100mA
Output Voltage Options 3~22 3~25 3~29 3~33 3~40 3~42 3~42 3~42
Dimensions 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm
Working Temperature -40~+60°C
Safety Standards EN61347-1, EN61347-2-13, UL8750
EMC Standards Compliance to EN55015, EN61000-3-2,3 (≥50% load), FCC Part 15B
