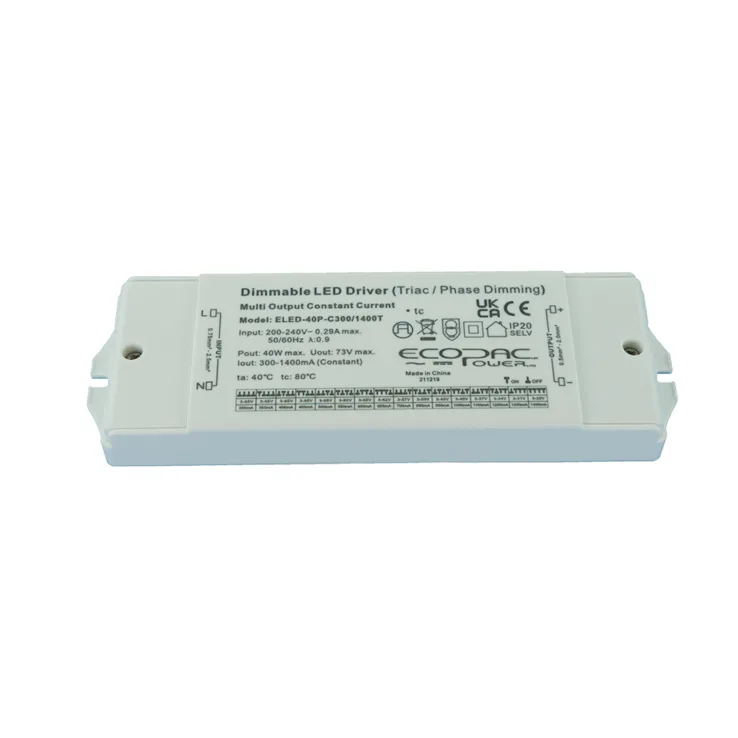

ELED-40P-C300/1400T Series Constant Current LED Drivers 19.5–40W

Download Datasheet
Models:
  • ELED-40P-C300T
  • ELED-40P-C350T
  • ELED-40P-C400T
  • ELED-40P-C450T
  • ELED-40P-C500T
  • ELED-40P-C550T
  • ELED-40P-C600T
  • ELED-40P-C650T
  • ELED-40P-C700T
  • ELED-40P-C800T
  • ELED-40P-C900T
  • ELED-40P-C1000T
  • ELED-40P-C1100T
  • ELED-40P-C1200T
  • ELED-40P-C1300T
  • ELED-40P-C1400T
Manufacturer: ELED
Type: Constant Current LED Drivers

ELED-40P-C300/1400T Series Features:

Features:

• Constant Current mode output with multiple levels selectable by dip switch
• Dimming function: Triac/phase cut dimming
• Work with leading or trailing edge Triac dimmer
• (ON key: leading edge; 1 key: trailing edge)
• AC input: 200-240VAC
• Built-in active PFC function
• Efficiency up to 80%
• IP20 design for indoor installation
• Full protection plastic housing easy installation
• Protections: Short circuit/ Over load
• Cooling by free air convection
• Suitable for LED lighting and moving sign applications
• Strong compatibility, flicker-free dimming

Wattage 19.5 22.8 26 29.3 32.5 32.8 39 40 40 40 40 40 40 40 40 40
Input Voltage 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC 200~240VAC
Output Current 300 350 400 450 500 550 600 650 700 800 900 1000 1100 1200 1300 1400
Output Voltage 3~65 3~65 3~65 3~65 3~65 3~65 3~65 3~62 3~57 3~50 3~45 3~40 3~37 3~34 3~31 3~29
Dimensions 171.5 x 54 x 20 mm 171.5 x 54 x 20 mm 171.5 x 54 x 20 mm 171.5 x 54 x 20 mm 171.5 x 54 x 20 mm 171.5 x 54 x 20 mm 171.5 x 54 x 20 mm 171.5 x 54 x 20 mm 171.5 x 54 x 20 mm 171.5 x 54 x 20 mm 171.5 x 54 x 20 mm 171.5 x 54 x 20 mm 171.5 x 54 x 20 mm 171.5 x 54 x 20 mm 171.5 x 54 x 20 mm 171.5 x 54 x 20 mm
Working Temperature -40~60°C
Safety Standards EN61347-1, EN61347-2-13, UL8750
EMC Standards Compliance to EN55015, EN61000-3-2,3 (≥50% load), FCC Part 15B
