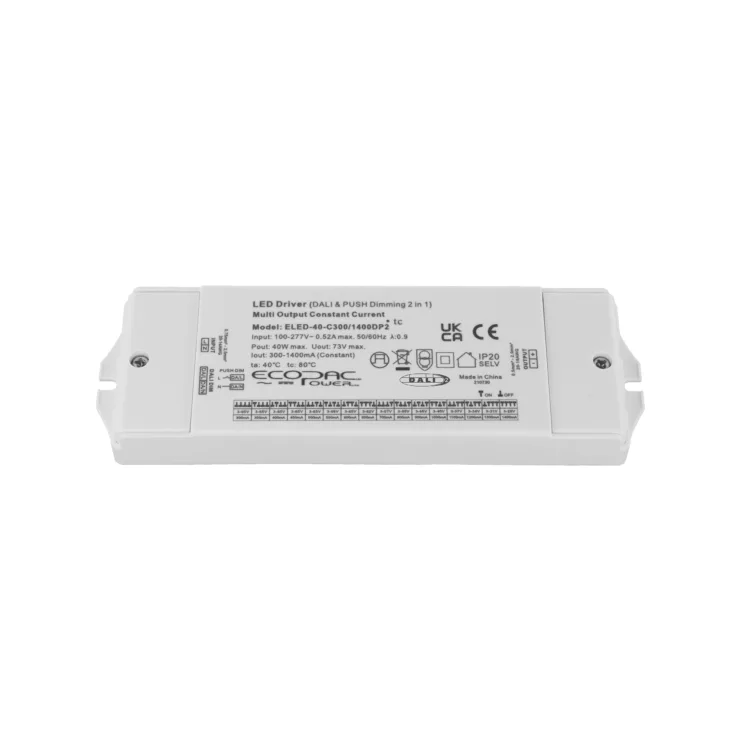

ELED-40-C300/1400DP2 DALI-2 Constant Current LED Drivers 19.5–40W

Download Datasheet
Models:
  • ELED-C40-300/1400DP2(1400)
  • ELED-C40-300/1400DP2(1300)
  • ELED-C40-300/1400DP2(1200)
  • ELED-C40-300/1400DP2(1100)
  • ELED-C40-300/1400DP2(1000)
  • ELED-C40-300/1400DP2(900)
  • ELED-C40-300/1400DP2(800)
  • ELED-C40-300/1400DP2(700)
  • ELED-C40-300/1400DP2(650)
  • ELED-C40-300/1400DP2(600)
  • ELED-C40-300/1400DP2(550)
  • ELED-C40-300/1400DP2(500)
  • ELED-C40-300/1400DP2(450)
  • ELED-C40-300/1400DP2(400)
  • ELED-C40-300/1400DP2(350)
  • ELED-C40-300/1400DP2(300)
Manufacturer: ELED
Type: Constant Current LED Drivers

ELED-40-C300/1400DP2 Features:

40W DALI 2 and Push Dimming Multiple-Stage Output Current LED Driver

Features:

Constant current mode output with multiple levels selectable by dip switch

DALI2 dimming function (IEC63286)

Compatible with DALI and DALI2 dimming system

AC input: 100-277VAC

Built-in active PFC function

Efficiency up to 86%

Protections: Short circuit/ Over load/Over temperature

Cooling by free air convection

Suitable for intelligent LED lighting

Wattage 40 40 40 40 40 40 40 40 40 39 35.8 32.5 29.3 26 22.8 19.5
Input Voltage 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 300mA
Output Current 1400mA 1300mA 1200mA 1100Ma 1000mA 900mA 800mA 700mA 650mA 600mA 550mA 500mA 450mA 400mA 350mA 3~65
Output Voltage 3~29 3~31 3~34 3~37 3~40 3~45 3~50 3~57 3~62 3~65 3~65 3~65 3~65 3~65 3~65
Dimensions 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm 171.5 x 54x 20 mm
Working Temperature -40~80°C
Safety Standards EN61347-1, EN61347-2-13, UL8750
EMC Standards Compliance to EN55015, EN61000-3-2,3 (≥50% load), FCC Part 15B
