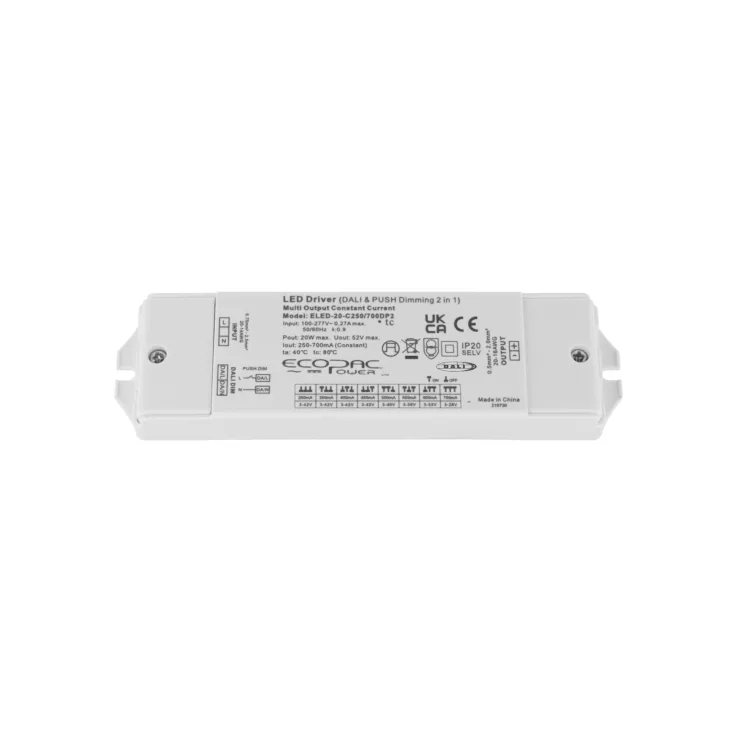

ELED-20-C250/700DP2 DALI Dimmable Constant Current LED Drivers 10.5–20.3W

Download Datasheet
Models:
  • ELED-20-C250/700DP2(700mA)
  • ELED-20-C250/700DP2(600mA)
  • ELED-20-C250/700DP2(550mA)
  • ELED-20-C250/700DP2(500mA)
  • ELED-20-C250/700DP2(450mA)
  • ELED-20-C250/700DP2(400mA)
  • ELED-20-C250/700DP2(350mA)
  • ELED-20-C250/700DP2(250mA)
Manufacturer: ELED
Type: Constant Current LED Drivers

ELED-20-C250/700DP2 Features:

20W DALI 2 and Push Dimming Multiple-Stage Output Current LED Driver

Features:

• Constant Current mode output with multiple levels selectable by dip switch
• DALI 2 dimming function (IEC62386)
• AC input: 100-277VAC
• Built-in active PFC function
• Efficiency up to 83.3%
• Protections: Short circuit/ Over load/Over temperature
• Cooling by free air convection
• Suitable for intelligent LED lighting

Wattage 20.3 19.8 19.8 20 18.9 16.8 14.7 10.5
Input Voltage 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC
Output Current 700mA 600mA 550mA 500mA 450mA 400mA 350mA 250mA
Output Voltage 3~29 3~33 3~36 3~40 3~42 3~42 3~42 3~42
Dimensions 159.5 x 43 x 20 mm 159.5 x 43 x 20 mm 159.5 x 43 x 20 mm 159.5 x 43 x 20 mm 159.5 x 43 x 20 mm 159.5 x 43 x 20 mm 159.5 x 43 x 20 mm 159.5 x 43 x 20 mm
Working Temperature -40~80°C
Safety Standards EN61347-1, EN61347-2-13, UL8750
EMC Standards Compliance to EN55015, EN61000-3-2,3 (≥50% load), FCC Part 15B
