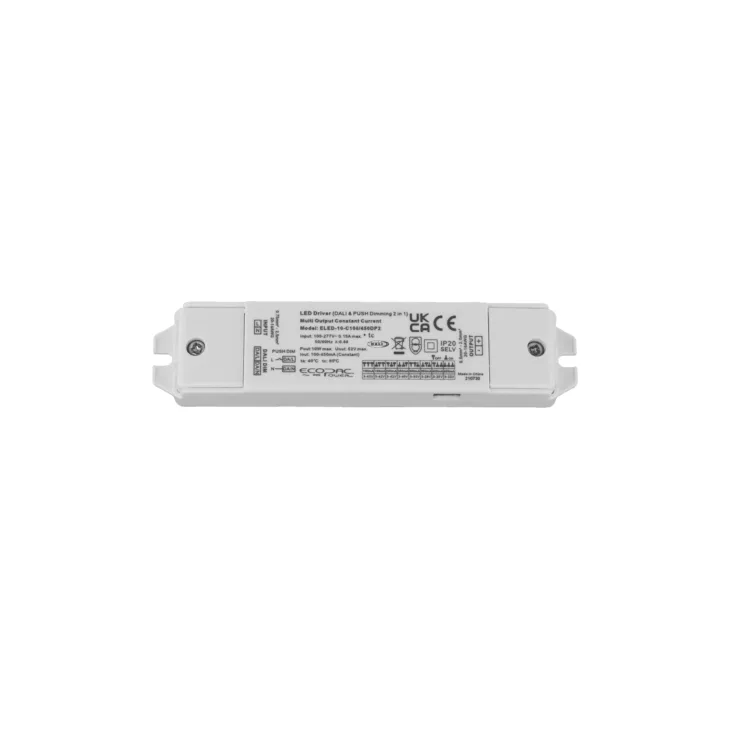

ELED-10-C100/450DP2 DALI Dimmable Constant Current LED Drivers 4.2–10W

Download Datasheet
Models:
  • ELED-10-C100/450DP2(450mA)
  • ELED-10-C100/450DP2(400mA)
  • ELED-10-C100/450DP2(350mA)
  • ELED-10-C100/450DP2(300mA)
  • ELED-10-C100/450DP2(250mA)
  • ELED-10-C100/450DP2(200mA)
  • ELED-10-C100/450DP2(150mA)
  • ELED-10-C100/450DP2(100mA)
Manufacturer: ELED
Type: Constant Current LED Drivers

ELED-10-C100/450DP2 Features:

10W DALI2 and Push Dimming Multiple-Stage Output Current LED Drive

Features:

• Constant Current mode output with multiple levels selectable by dip switch
• DALI 2 dimming function (IEC62386)
• AC input: 100-277VAC
• Built-in active PFC function
• Efficiency up to 79%
• Protections: Short circuit/ Over load/Over temperature
• Cooling by free air convection
• Suitable for intelligent LED lighting

Wattage 10 10 10 10 10 8.4 6.3 4.2
Input Voltage 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC
Output Current 450mA 400mA 350mA 300mA 250mA 200mA 150mA 100mA
Output Voltage 3~22 3~25 3~29 3~33 3~40 3~42 3~42 3~42
Dimensions 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm
Working Temperature -40~60°C
Safety Standards EN61347-1, EN61347-2-13, UL8750
EMC Standards Compliance to EN55015, EN61000-3-2,3 (≥50% load), FCC Part 15B
