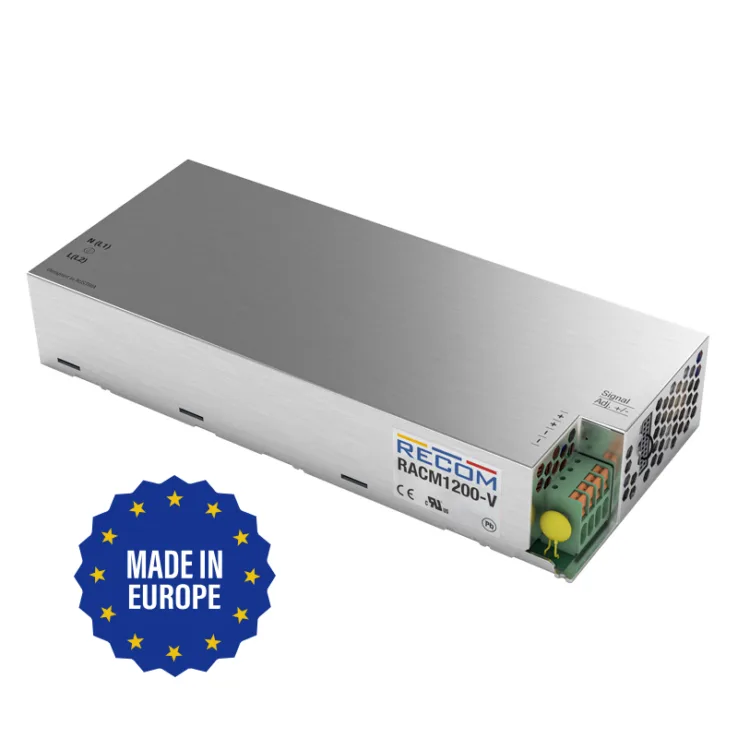

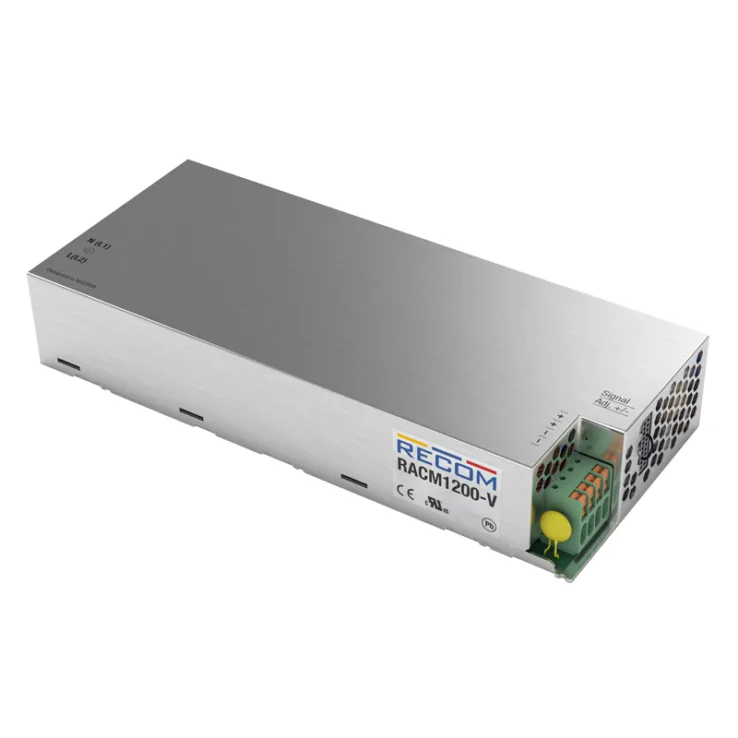

RACM1200-V Series Enclosed Power Supplies 1200W

Download Datasheet
Models:
  • RACM1200-24SAV/ENC
  • RACM1200-48SAV/ENC
  • RACM1200-36SAV/ENC
Manufacturer: RECOM
Type: Enclosed Power Supplies

RACM1200-V Series Features:

  • Up to 1000 Watt fan-less power / 1200W boost
  • Thermal base-plate cooling, fanless construction
  • Peak efficiency up to 95%
  • Wide operating temperature range -40°C...+80°C
  • Certified to industrial- and medical standards
  • Analogue control & monitor function
  • Active load sharing for parallel operation
  • PMBus capable versions
  • Flexible modified standard solutions
  • Designed and manufactured in Europe
  • 3 year warranty
Wattage 1200 1200 1200
Input Voltage 80-264VAC 80-264VAC 80-264VAC
Output Current 50A 25A 33.3A
Output Voltage 24V 48V 36V
DC output adjustment 24-28V 48-56V 30-36
Dimensions 228 × 96.2 × 40 mm 228 × 96.2 × 40 mm 228 × 96.2 × 40 mm
Working Temperature −40°C to +80°C with output-power derating at higher temperatures.
Safety Standards IEC/EN/UL/CAN-CSA 62368-1, IEC/EN 60601-1, IEC 61558-1, IEC 61010-1/-2-201, RoHS2
EMC Standards IEC/EN 60601-1-2 Class B, EN 55011/CISPR 11 Group 1 Class B, EN 55032 Class B,EN 55035
