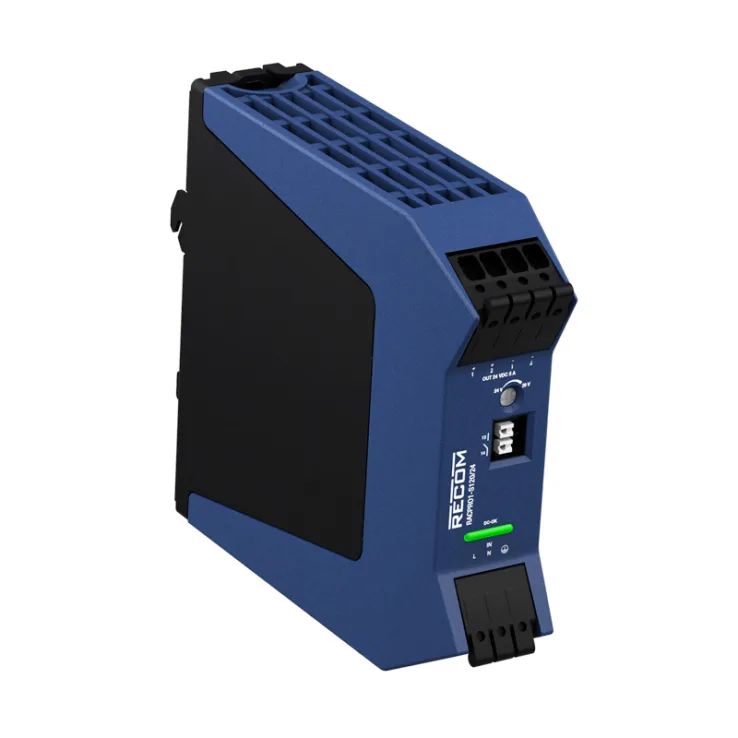

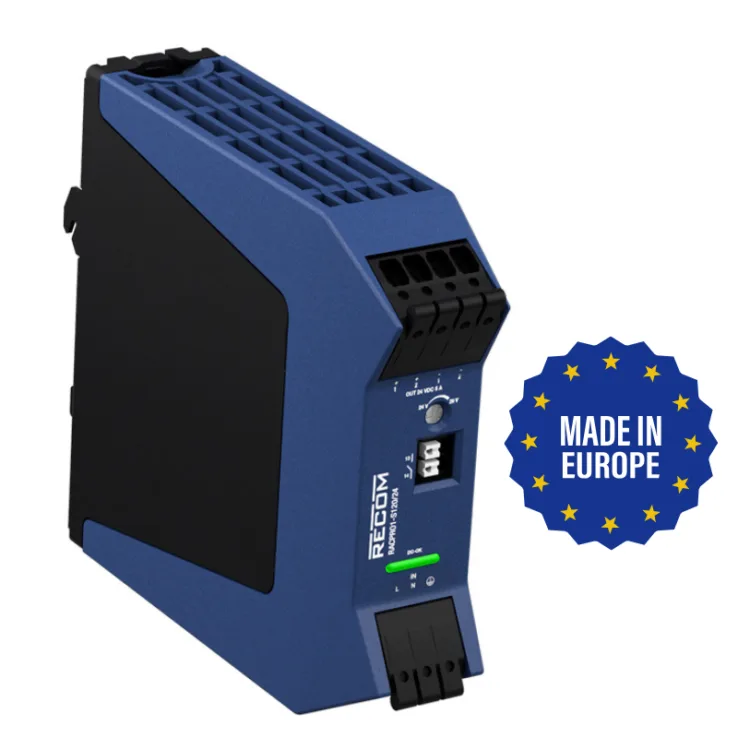

RACPRO1-S120 Series DIN Rail Power Supplies 96–120W

Download Datasheet
Models:
  • RACPRO1-S120/12
  • RACPRO1-S120/24
  • RACPRO1-S120/48
Manufacturer: RECOM
Type: DIN Rail Power Supplies

RACPRO1-S120 Series Features:


  • Made in Europe
  • Smallest 120W DIN Rail PSU in the market
  • Highest Power Density up to 500W/liter
  • Slim Design (28mm) with 25° Push-In connectors
  • DC-Input Range 88-370VDC
  • Highest Efficiency up to 93.3%
  • Full Power -40°C/+60°C, Boost Power 150%/5s
  • Thermal Power Bonus 120%/45°C
  • Lifetime Expectancy 231khrs/ 40°C/ 75% load
  • DC-OK Signal
  • Reduced no load power consumption 0.2W - 0.3W
  • 3 year warranty
Wattage 96 120 120
Input Voltage 85-277 VAC / 88-370 VDC 85-277 VAC / 88-370 VDC 85-277 VAC / 88-370 VDC
Output Current 8A 5A 2.5A
Output Voltage 12V 24V 48V
DC output adjustment 12-15VDC 24-29VDC 48-56VDC
Dimensions 100 × 28 × 112 mm 100 × 28 × 112 mm 100 × 28 × 112 mm
Working Temperature −40°C to +70°C with derating; full power −40°C to +60°C.
Safety Standards IEC/EN/UL/CSA 61010-1 & 61010-2-201/ ROHS Compliant
EMC Standards IEC/EN 61000-6-2 & 61000-6-3
