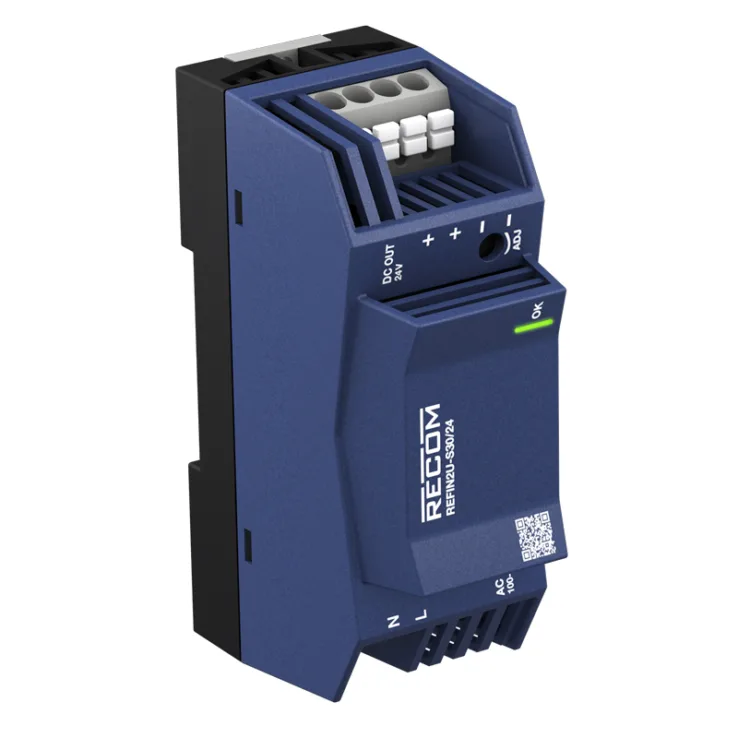

REFIN2U Series DIN Rail Power Supplies 30W

Download Datasheet
Models:
  • REFIN2U-S30/12
  • REFIN2U-S30/24
Manufacturer: RECOM
Type: DIN Rail Power Supplies

REFIN2U Series Features:

  • 85-305VAC wide-range input
  • 2U Width (36mm)
  • Push-In connectors
  • 30W at -40° to 55°C, globally
  • Efficiency 90%; no load power < 100mW
  • Hiccup - over current protection; I > 130%
  • OVC III to 3000m; OVC II to 5000m altitude
  • LPS limited power source
  • Mountable in any orientation
  • 3 year warranty
Wattage 30 30
Input Voltage 85-305 85-305
Output Current 2500 1250
Output Voltage 12 24
DC output adjustment 10.8-13.2 21.6-26.4
Dimensions 93.5 × 35.5 × 58.5 mm 93.5 × 35.5 × 58.5 mm
Working Temperature −40°C to +90°C with derating; full 30 W output to +55°C under natural convection
Safety Standards UL/CSA/IEC/EN 62368-1, RoHS2, IEC/EN 60335-1
EMC Standards EN IEC 61204-3:2018 Class B, EN 55032:2015+A11:2020 Class B, EC/EN 61000
