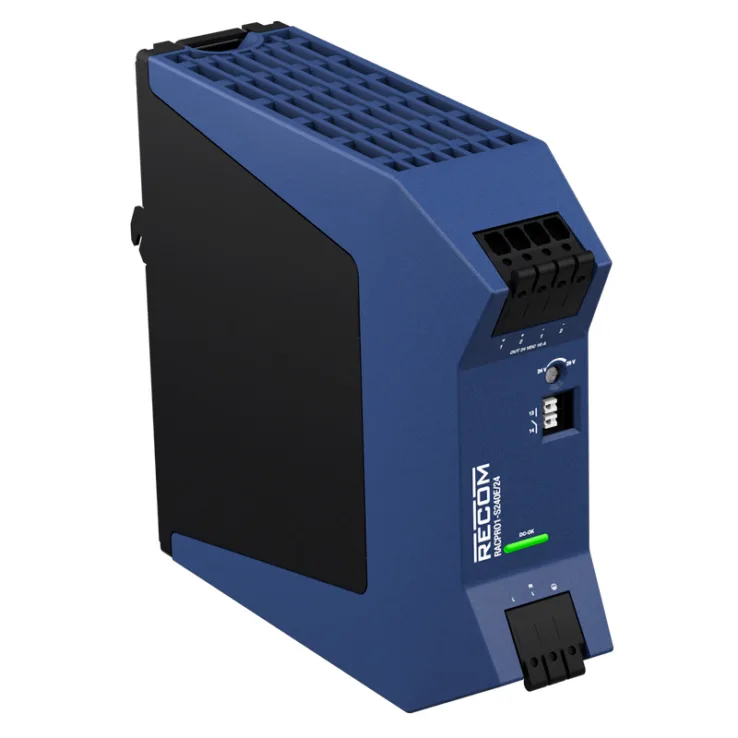

RACPRO1-S240E Series DIN Rail Power Supplies 180–240W

Download Datasheet
Models:
  • RACPRO1-S240E/12
  • RACPRO1-S240E/24
  • RACPRO1-S240E/48
Manufacturer: RECOM
Type: DIN Rail Power Supplies

RACPRO1-S240E Series Features:

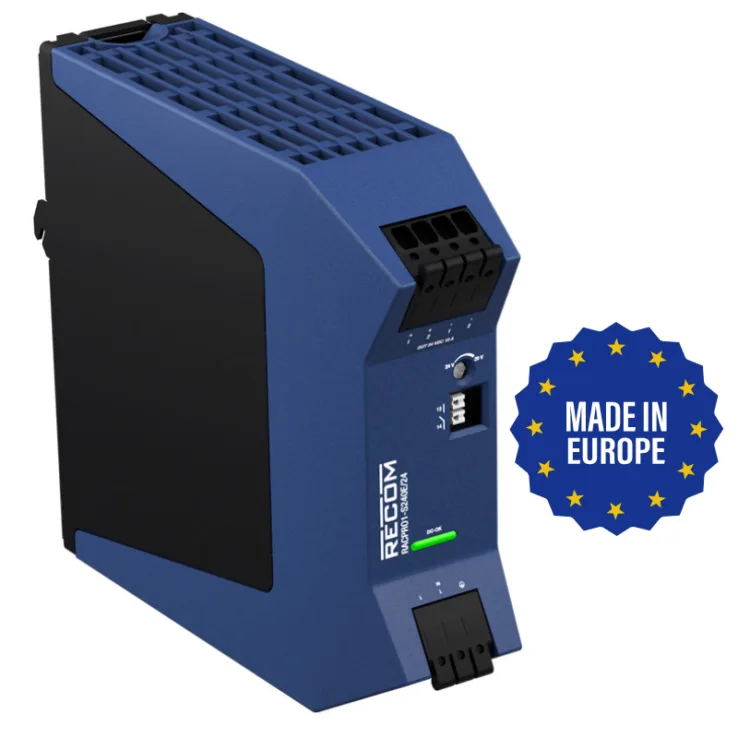

  • Made in Europe
  • Slim Design (39mm) with 25° Push-In connectors
  • Active Inrush Current Limit
  • Split AC-Input 85V to 132VAC & 170V to 277VAC
  • Highest Efficiency up to 94%
  • Adjustable output voltage 12V, 24V, 48V
  • Reduced no load power consumption 0.7W to 0.8W
  • Full Power -40°C/+60°C, Boost Power 150%/5s
  • Thermal Power Bonus 120%/45°C
  • Lifetime Expectancy 165khrs/ 40°C/ 75% load
  • DC-OK Signal
  • 3 year warranty
Wattage 180 240 240
Input Voltage 85–132 VAC / 170–277 VAC 85–132 VAC / 170–277 VAC 85–132 VAC / 170–277 VAC
Output Current 15 10 5
Output Voltage 12 24 48
DC output adjustment 12-15 24-29 48-56
Dimensions 125 × 39 × 139 mm 125 × 39 × 139 mm 125 × 39 × 139 mm
Working Temperature −40°C to +70°C with derating under natural convection.
Safety Standards IEC/EN/UL 61010-1, IEC/EN/UL/CSA 61010-2-201; RoHS2
EMC Standards IEC/EN 61000-6-2:2019, IEC/EN 61000-6-3:2021
