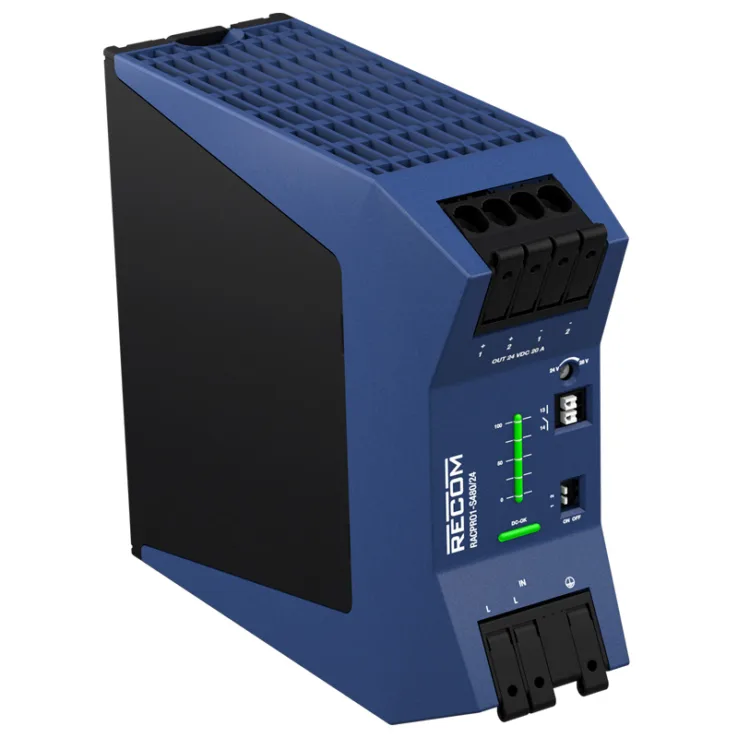

RACPRO1-S480 Series DIN Rail Power Supplies 480W

Download Datasheet
Models:
  • RACPRO1-S480/24
  • RACPRO1-S480/48
Manufacturer: RECOM
Type: DIN Rail Power Supplies

RACPRO1-S480 Series Features:

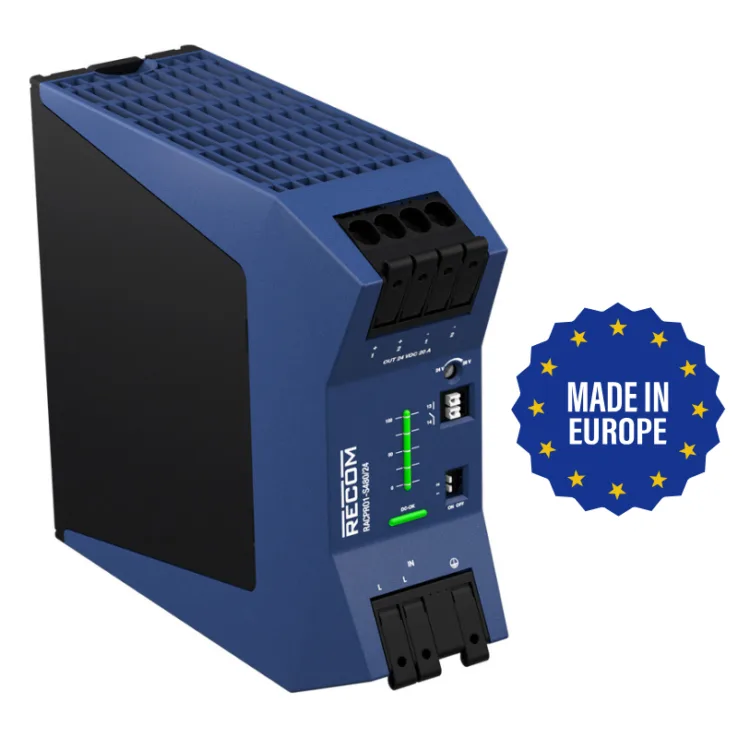

  • Made in Europe
  • Slim Design (52mm) with 25° Push-In connectors
  • Active Power Factor Correction 0.95
  • Active Inrush Current Limit
  • DC-Input Range 88-370VDC
  • Highest Efficiency up to 95.4%
  • Full Power -40°C/+60°C, Boost Power 150%/5s
  • Thermal Power Bonus 120%/45°C
  • Lifetime Expectancy 122khrs/ 40°C/ 75% load
  • DC-OK Signal; Load Indication LED
  • Constant Current or Parallel Mode switchable
  • Reduced no load power consumption typ. 1.7W
  • 3 year warranty
Wattage 480 480
Input Voltage 85-277 VAC / 88-370 VDC 85-277 VAC / 88-370 VDC
Output Current 20 10
Output Voltage 24 48
DC output adjustment 24-28 48-56
Dimensions 135 × 52 × 155 135 × 52 × 155
Working Temperature −40°C to +70°C with derating; natural convection cooling
Safety Standards IEC/EN/UL 61010-1, IEC/EN/UL/CSA 61010-2-201
EMC Standards IEC/EN 61000-6-2:2019, IEC/EN 61000-6-3:2021
