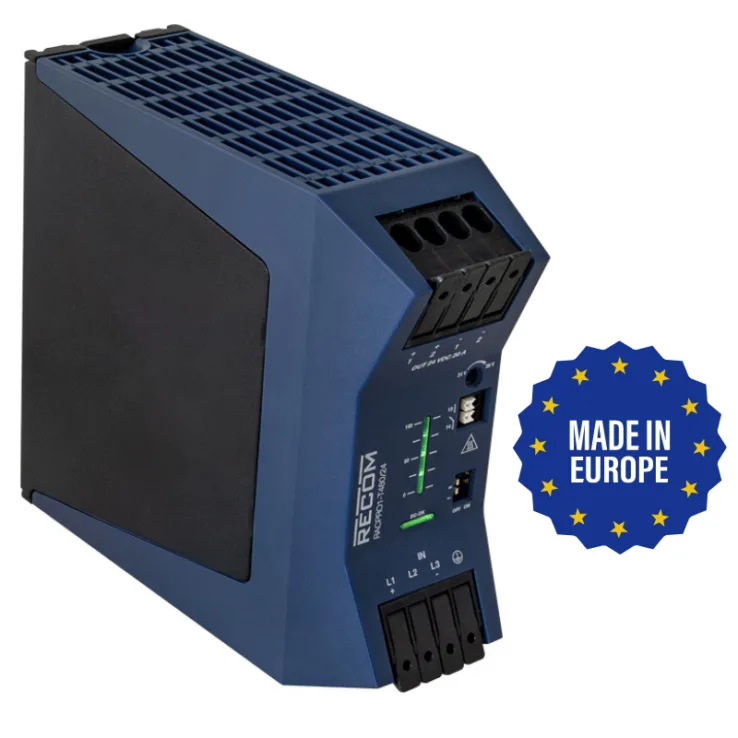

RACPRO1-T480 Series DIN Rail Power Supplies 480W

Download Datasheet
Models:

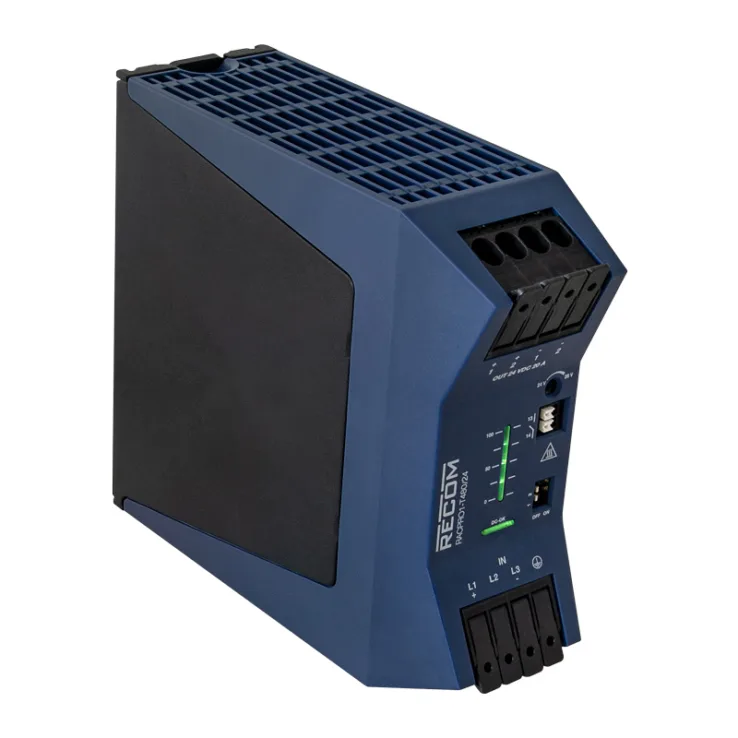

  • RACPRO1-T480/24
  • RACPRO1-T480/48
Manufacturer: RECOM
Type: DIN Rail Power Supplies

RACPRO1-T480 Series Features:

  • Made in Europe
  • Slim Design (52mm) with 25° Push-In connectors
  • Fast tool-less mounting and demounting
  • PFC >0.9 and Active Inrush Current Limitation
  • DC-Input Range 430V to 815V/850V 10s
  • Highest Efficiency up to 95.3%
  • Full Power -40°C/+60°C, Boost Power 150%/7.5s
  • Thermal Power Bonus 120%/45°C
  • Charging & Parallel Operation
  • Highest Lifetime Expectancy 80.000h/40°C
  • DC-OK-Signal
  • Reduced no load power consumption 1.9W-3W
  • Extended surge immunity 2.5kV/6kV
  • 3 year warranty
Wattage 480 480
Input Voltage 3x 320-575 3x 320-575
Output Current 20 10
Output Voltage 24 48
DC output adjustment 24-28 48-56
Dimensions 135 × 52 × 155.7 mm 135 × 52 × 155.7 mm
Working Temperature −40°C to +70°C with derating; full 480 W output from −40°C to +60°C under natural convection.
Safety Standards IEC/EN/UL 62368-1, IEC/EN/UL/CSA 61010-1, 61010-2-201, RoHS
EMC Standards IEC/EN 61000-6-2:2019, IEC/EN 61000-6-3:2021
