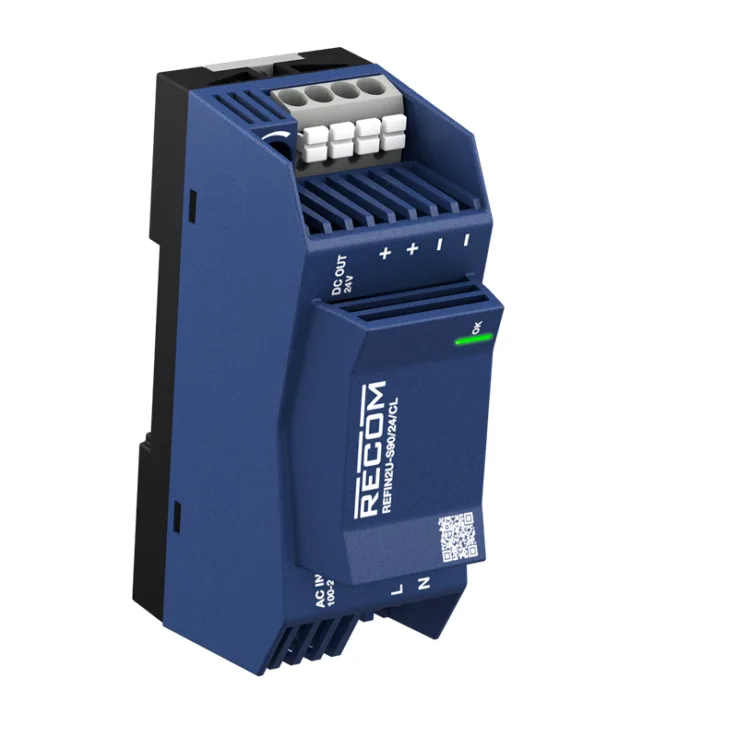

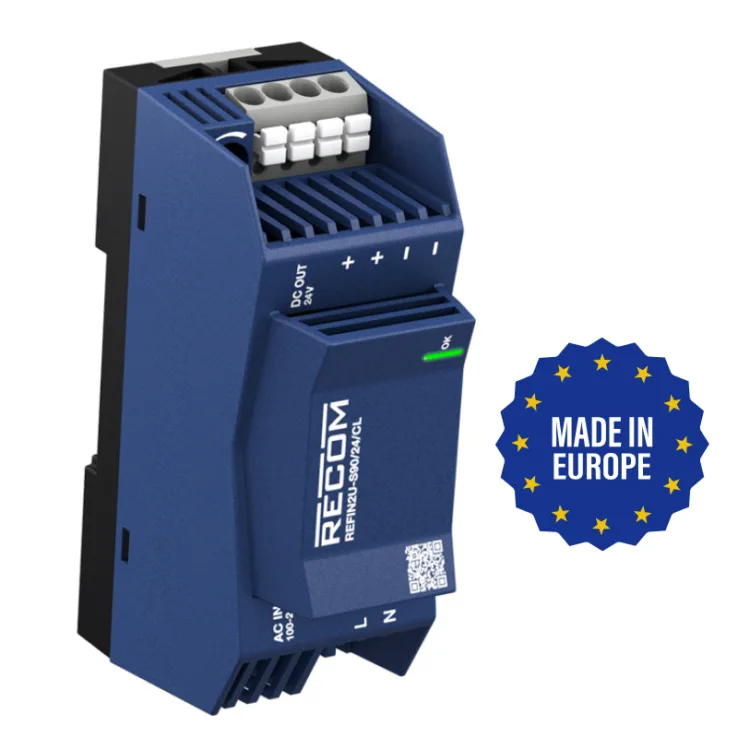

REFIN2U/CL Series DIN Rail Power Supplies

Download Datasheet
Models:
  • REFIN2U-S90/24/CL
Manufacturer: RECOM
Type: DIN Rail Power Supplies

REFIN2U/CL Series Features:

  • Made in Europe
  • 85-276VAC widerange input
  • 2U Width (36mm); 151g Weight
  • Push-In connectors
  • 90W at 120V: 40°C; at 230V: 60°C
  • Efficiency 93.6%
  • Constant current limited
  • Power boost: 150% / 4.5s
  • Audible noise suppression
  • LPS; NEC class 2
  • 3 year warranty
Wattage 91.2
Input Voltage 85-276 VAC / 88-370 VDC
Output Current 3800 (5700 Boost Current Max)
Output Voltage 24
Dimensions 94.1 × 36 × 58.8 mm
Working Temperature −40°C to +70°C with derating, under natural convection
Safety Standards UL 62368-1, CAN/CSA C22.2 No. 62368-1, UL 1310 (NEC Class 2) and CAN/CSA C22.2 No. 223
EMC Standards EN IEC 61000-6-2:2019, EN IEC 61000-6-3:2021 Class B
