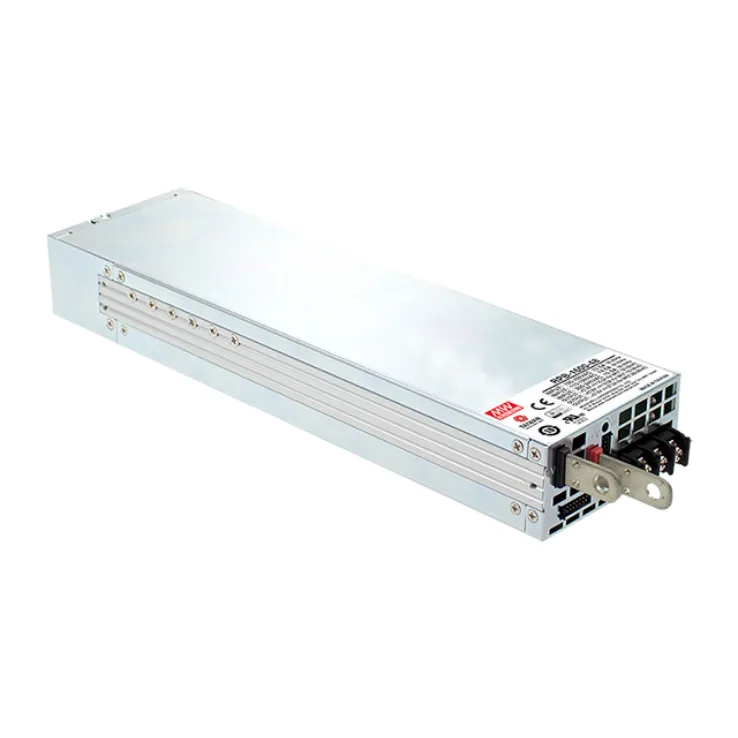

RPB-1600 Series Chargers 1440–1584W

RPB-1600 Series Features:

Charger for lead-acid batteries (Gel, flooded and AGM) and Li-ion batteries (lithium iron and lithium manganese)

Built-in default 3 stage charging curves and programmable curve

Protections: Battery under voltage / Battery no connection / Short circuit / Over voltage / Over temperature

Other Features:

Spec	RPB-1600-12	RPB-1600-24	RPB-1600-48
Wattage	1440	1584	1584
Input Voltage	90~264VAC	90~264VAC	90~264VAC
Output Current	0~100	0~55	0~27.5
Output Voltage	12	24	48
Output Voltage Options	Single	Single	Single
DC output adjustment	11.5-15V	23.5-30V	47.5-58.8V
Dimensions	300 x 85 x 41	300 x 85 x 41	300 x 85 x 41
Working Temperature	-30~+70°C
Safety Standards	UL60950-1, TUV EN60950-1 approved
EMC Standards	Compliance to EN55022 (CISPR22) Conduction Class B, Radiation Class A ; EN61000-3-2,-3 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN500082-2), light industry level, criteria A
