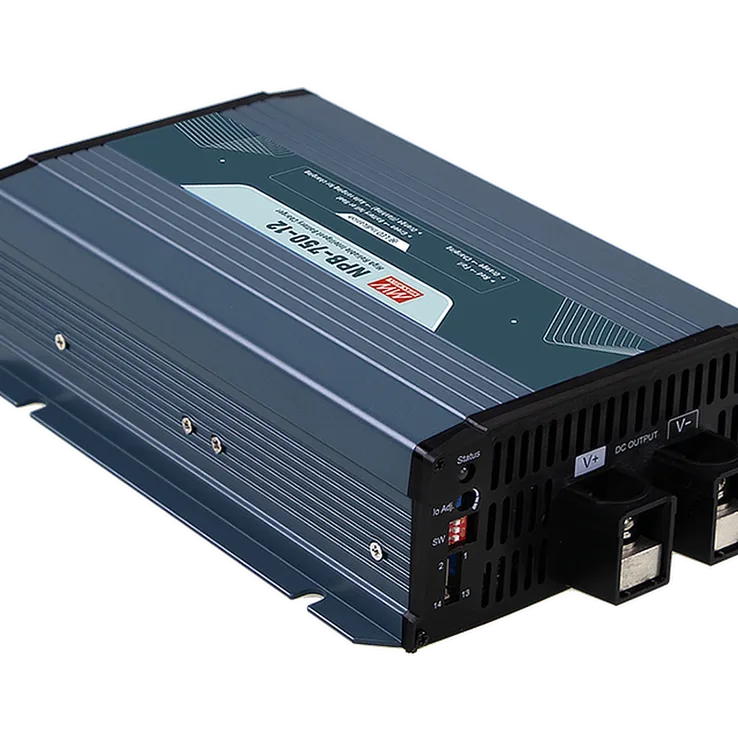

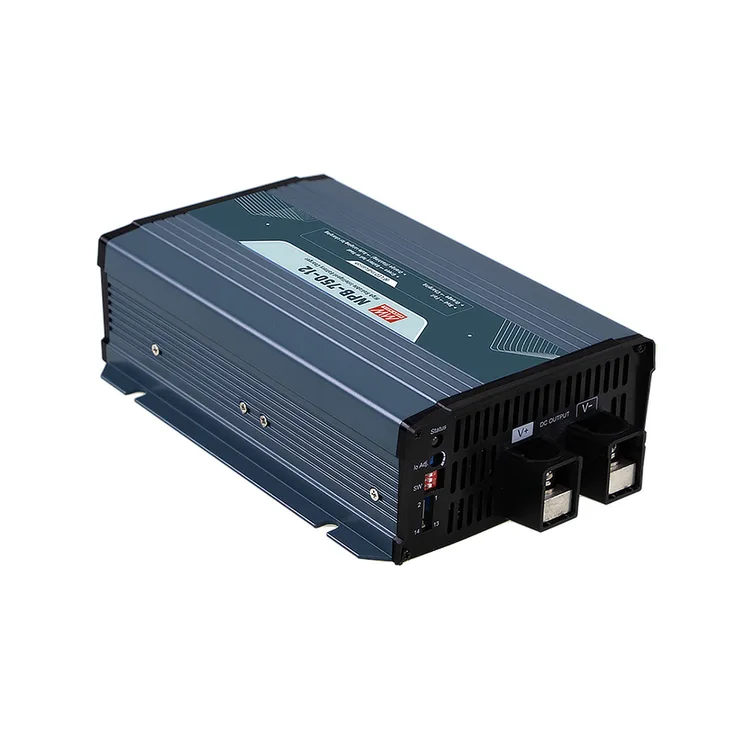

NPB-750 Series Chargers 722.4–759.4W

Download Datasheet
Models:
  • NPB-750-12
  • NPB-750-24
  • NPB-750-48
Manufacturer: Mean Well
Type: Chargers

NPB-750 Series Features:

NPB-750 is a miniaturizes, versatile, and ultra-wide voltage intelligent charger.

Features:

  • Patented auto ranging with ultra-wide charging voltage
  • Built-in CANBus protocol for control, setting and monitoring
  • Programmable 2/3 stage and charging curve via SBP-001
  • Manual setting for 2/3 stage and 4 built-in charging curves via DIP S.W
  • Multiple protections: Short circuit/ Over voltage/ Over temperature/ Battery under voltage/ Battery reverse polarity (No damage)
  • Charger OK and Battery full signal
  • Temperature compensation function to prolong battery life (Lead-acid only)
  • -30~70°C wide operating temperature
  • Thermal controlled DC fan for noise reduction
  • Remote ON/OFF control
  • Smart programmer available (SBP-001, sold separately)
  • Carry handle accessory available (DS-carry handle, sold separately)
  • Comply with 62368-1 + 60335-1/-2-29 dual certification
  • Suitable for lead-acid (Pb) and li-ion batteries
  • 3 years warranty
Wattage 722.4 756 759.4
Input Voltage 90~264VAC 90~264VAC 90~264VAC
Output Current 43 22.5 11.3
Output Voltage Boost charge 14.4V, Float charge 13.8V Boost charge 28.8V, Float charge 27.6V Boost charge 57.6V, Float charge 55.2V
Dimensions 230x158x67mm 230x158x67mm 230x158x67mm
Working Temperature -30~70°C
Safety Standards CB IEC62368-1, IEC60335-1/2-29, Dekra BS EN/EN62368-1, BS EN/EN60335-1/2-29, UL62368-1, EAC TP TC 004 approved
EMC Standards BS EN/EN55032(CISPR32), BS EN/EN55014-1, BS EN/EN61000-3-2, BS EN/EN61000-3-3
