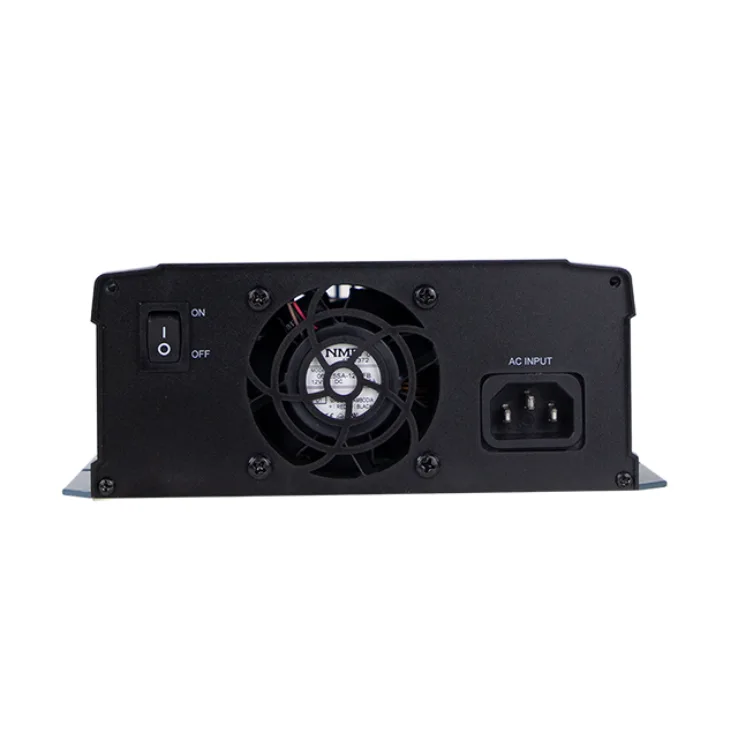

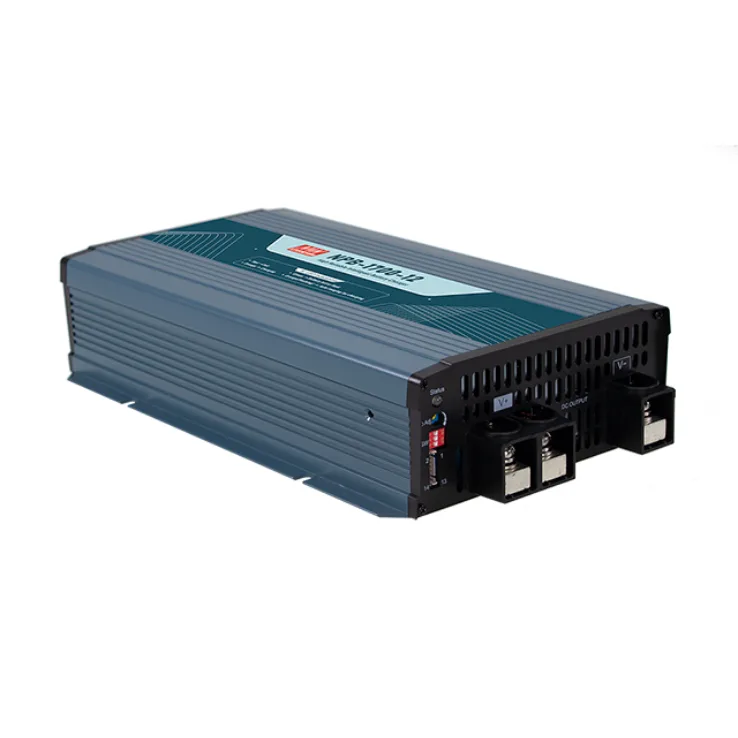

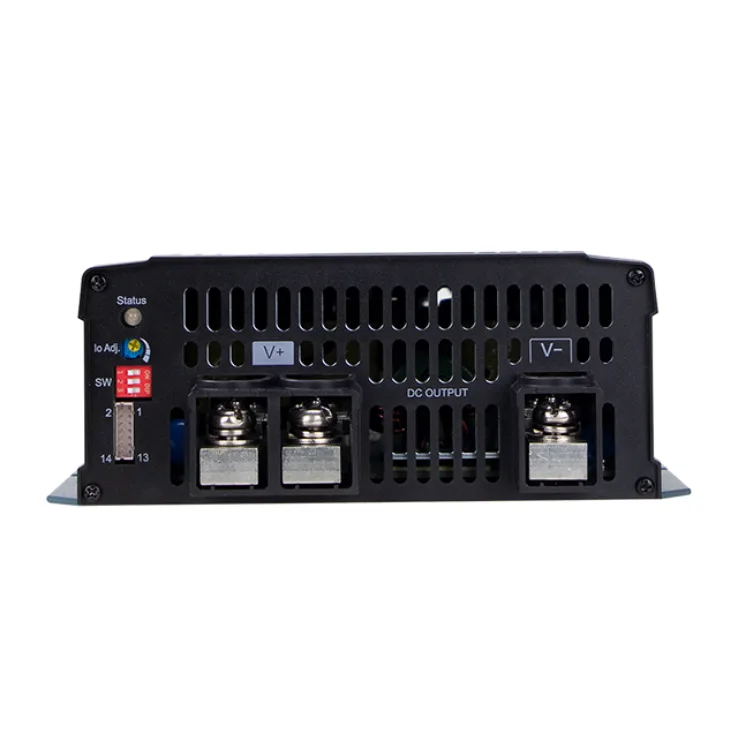

NPB-1700 Series Chargers 1428–1680W

NPB-1700 Series Features:

NPB-1700 is a miniaturized, versatile and ultra-wide voltage intelligent charger.

Features:

Ultra-wide charging voltage (10.5~21V, 21~42V, 42~80V)
Built-in CANBus protocol for control, setting and monitoring
Programmable 2/3 stage and charging curve settings via SBP-001
Manual setting for 2/3 stage and 4 built-in charging curves via DIP switch
Adjust charging current between 50~100% via VR on front panel
Over temperature automatic de-rating
Thermal controlled DC fan for noise reduction
Temperature compensation function to prolong battery life
Multiple protections: Short circuit / Over voltage / Over temperature / Battery under voltage / Battery reverse polarity (no damage)
Suitable for lead-acid (Pb) and li-ion batteries
Carry handle accessory available (Order No.: DS-Carry handle)
Safety: CB, UL, DEKRA, EAC, CE, UKCA (62368-1 + 60335-1/-2-29)
3-year warranty

Spec	NPB-1700-12	NPB-1700-24	NPB-1700-48
Wattage	1428	1680	1680
Input Voltage	90~264VAC	90~264VAC	90~264VAC
Output Current	85	50	25
Output Voltage Options	10.5~21	21~42	42~80
Dimensions	300x184x70mm	300x184x70mm	300x184x70mm
Working Temperature	-30~70°C
Safety Standards	CB IEC62368-1, IEC60335-1/2-29, Dekra BS EN/EN62368-1, BS EN/EN60335-1/2-29, UL62368-1, EAC TP TC 004 approved
EMC Standards	BS EN/EN55032 (CISPR32), BS EN/EN55014-1
