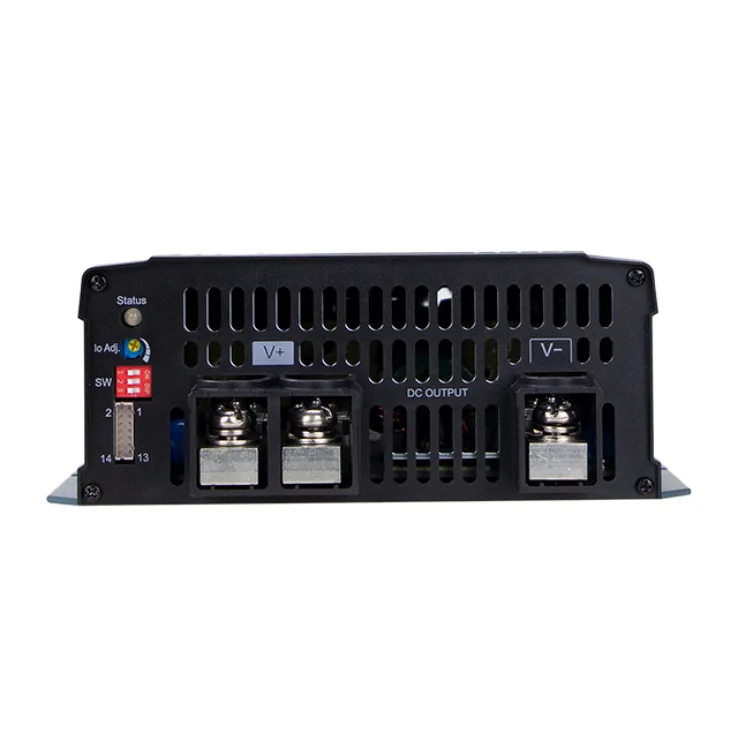

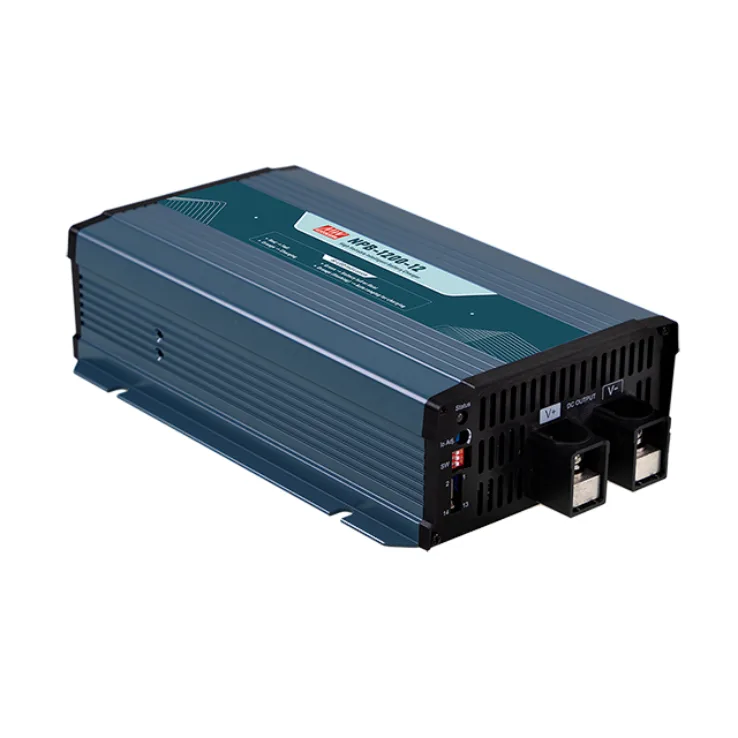

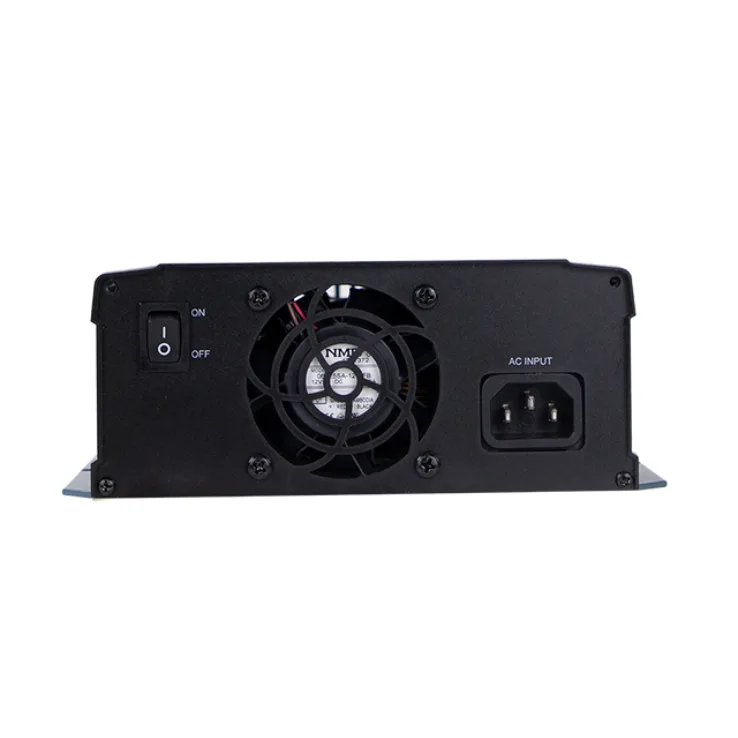

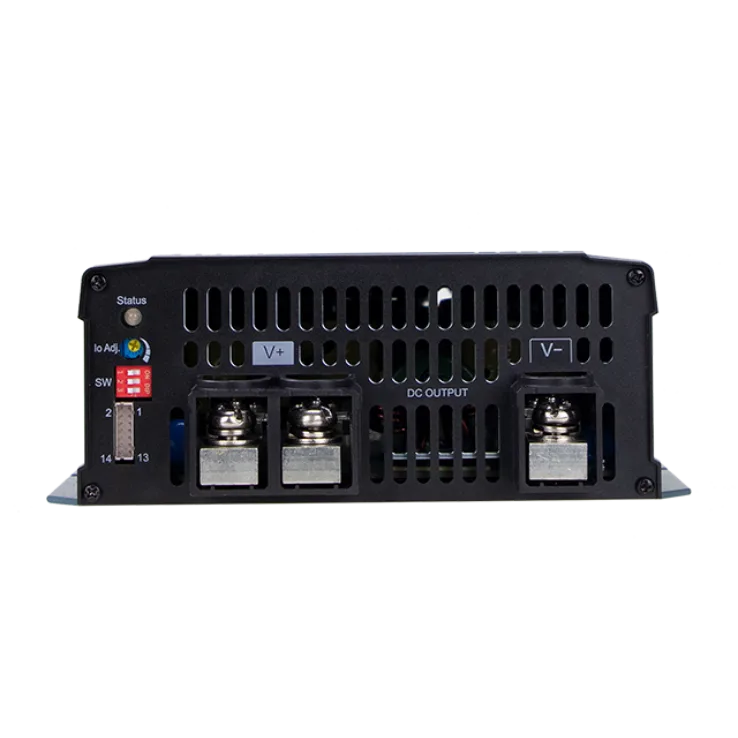

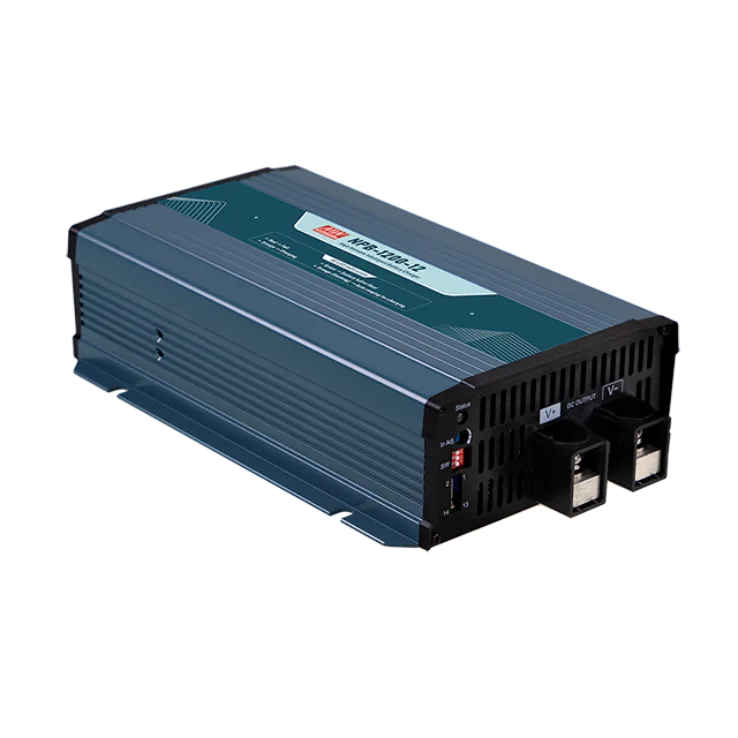

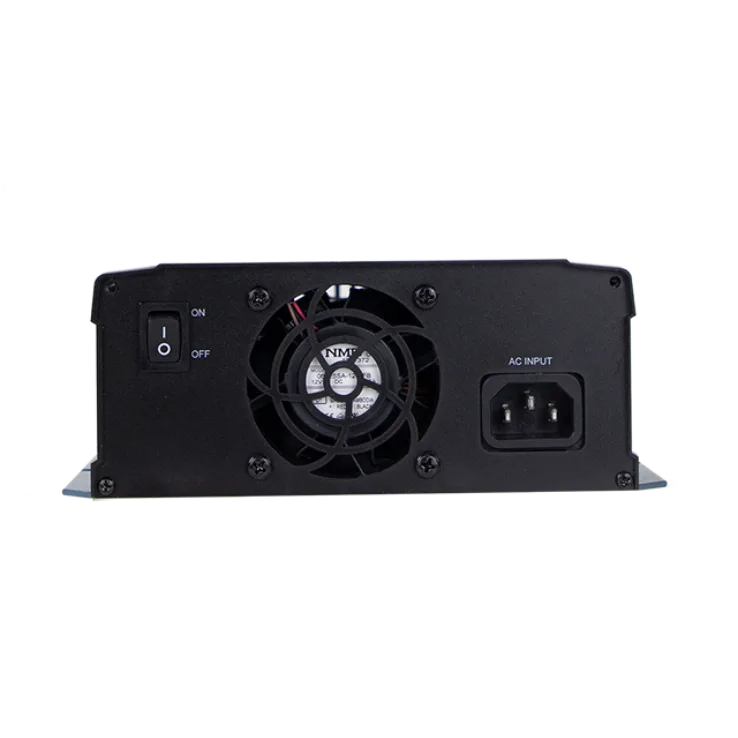

NPB-1200 Series Chargers 1176–1209.6W

Download Datasheet
Models:
  • NPB-1200-12
  • NPB-1200-24
  • NPB-1200-48
Manufacturer: MEAN WELL
Type: Chargers

NPB-1200 Series Features:

NPB-1200 is a miniaturized, versatile, and ultra-wide voltage intelligent charge.

Features:

  • Auto ranging with ultra-wide charging voltage (10.5~21V, 21~42V, 42~80V)
  • Built-in CANBus protocol for control, setting and monitoring
  • Programmable 2/3 stage and charging curve via SBP-01
  • Manual setting for2/3 stage and 4 built-in charging curves via DIP S.W
  • Multiple protections: Short circuit/ Over voltage/ Over temperature/ Battery under voltage/ Battery reverse polarity(No damage)
  • Charger OK and Battery full signal
  • Temperature compensation function to prolong battery life )Lead-acid only)
  • -30~70°C wide operating temperature
  • Thermal controlled DC fan for noise reduction
  • Remote ON/OFF control
  • Smart programmer available
  • Carry handle accessory available
  • Comply with 62368-1 + 60335-1/-2-29 dual certification
  • Suitable for lead acid (Pb) and li-on batteries
  • 3 years warranty
Wattage 1176 1209.6 1209.6
Input Voltage 90~264VAC 90~264VAC 90~264VAC
Output Current 70 36 18
Output Voltage Options Boost charge voltage 14.4V, Float charge voltage 13.8V Boost charge voltage 28.8V, Float charge voltage 27.6V Boost charge voltage 57.6V, Float charge voltage 55.2V
Dimensions 250x158x67mm 250x158x67mm 250x158x67mm
Working Temperature -30~70°C
Safety Standards CB IEC62368-, IEC60335-1/2-29, Dekra BS EN/EN62368-1, BS EN/EN60335-1/2-29, UL62368-1, EAC TP TC 004 approved
EMC Standards BS EN/EN55032 (CISPR32), BS EN/EN55014-1, BS EN/EN61000-3-2, BS EN/EN61000-3-3
