Mean Well Mean Well logo

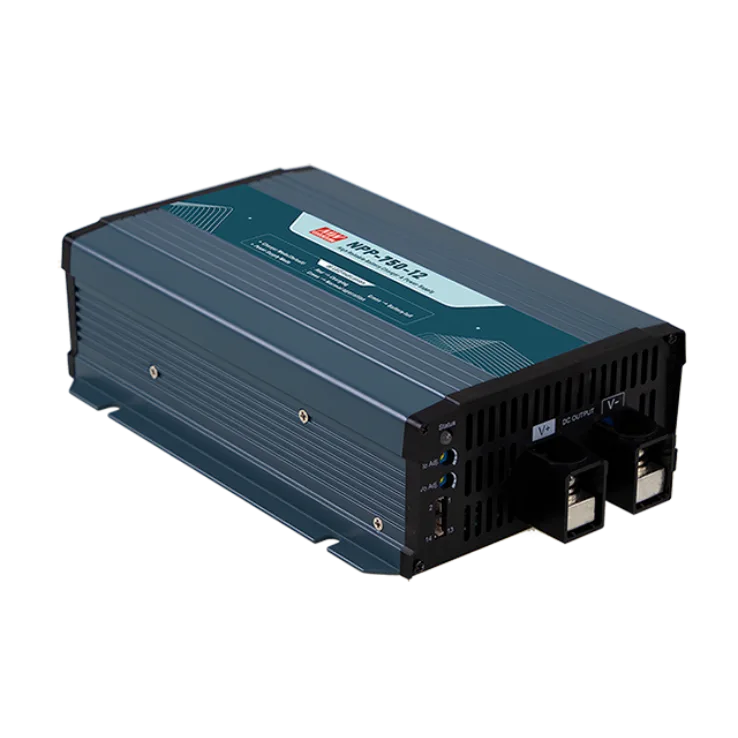

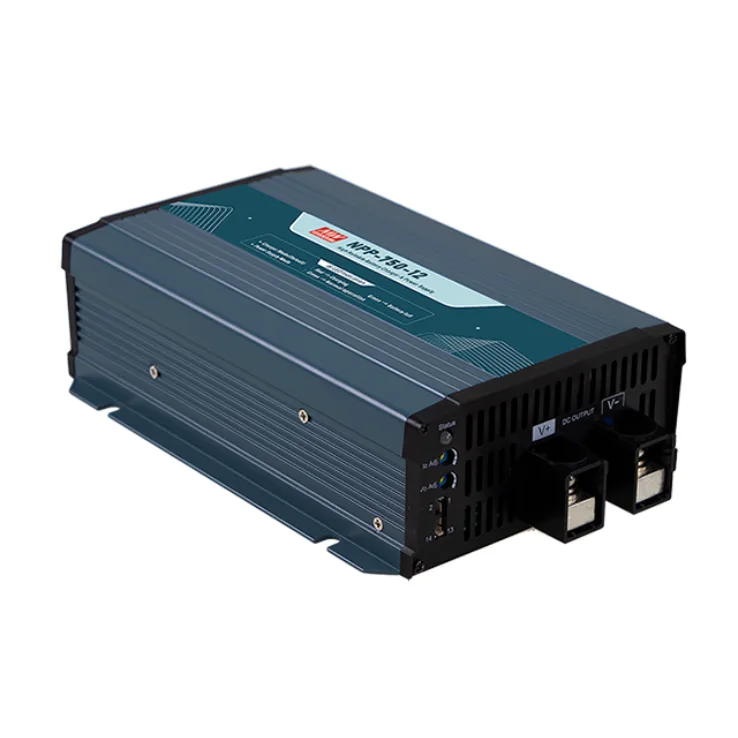

NPP-750 Series Chargers 722.4–759.36W

Download Datasheet
Models:
  • NPP-750-12
  • NPP-750-24
  • NPP-750-48
Manufacturer: Mean Well
Type: Chargers

NPP-750 Series Features:

NPP-750 is a miniaturized dual-purpose charge and power supply.

Features:

  • Multi-function single unit battery charger or power supply operation modes selectable
  • Output voltage and current adjustable via potentiometer
  • 3-stage charging curve for charging mode
  • -30~70° wide operating temperature
  • Multiple protections: short circuit/ Over load/ Over voltage/ Over temperature
  • Thermal controlled DC fan for noise reduction
  • Remote ON/OFF control
  • Comply with 62368-1+60335-1/-2-29 dual certification
  • Suitable for lead-acid (Pb) batteries
  • Carry handle accessories available (DS-carry handle, sold separately)
  • 3 years warranty
Wattage 722.4 756 759.36
Input Voltage 90~264VAC 90~264VAC 90~264VAC
Output Current 43 22.5 11.3
Output Voltage Boost charge 14.4V, Float charge 13.8V Boost charge 28.8V, Float charge 27.6V Booat charge 57.6V, Float charge 55.2V
Dimensions 230x158x67mm 230x158x67mm 230x158x67mm
Working Temperature -30~70°C
Safety Standards CB IEC62368-1, IEC60335-1/2-29, Dekra BS EN/EN62368-1, BS EN/EN60335-1/2-29, UL62368-1, EAC TP TC 004 approved
EMC Standards BS EN/EN55032 (CISPR32), BS EN/EN55014-1, BS EN/EN61000-3-2, BS EN/EN61000-3-3
