Mean Well Mean Well logo

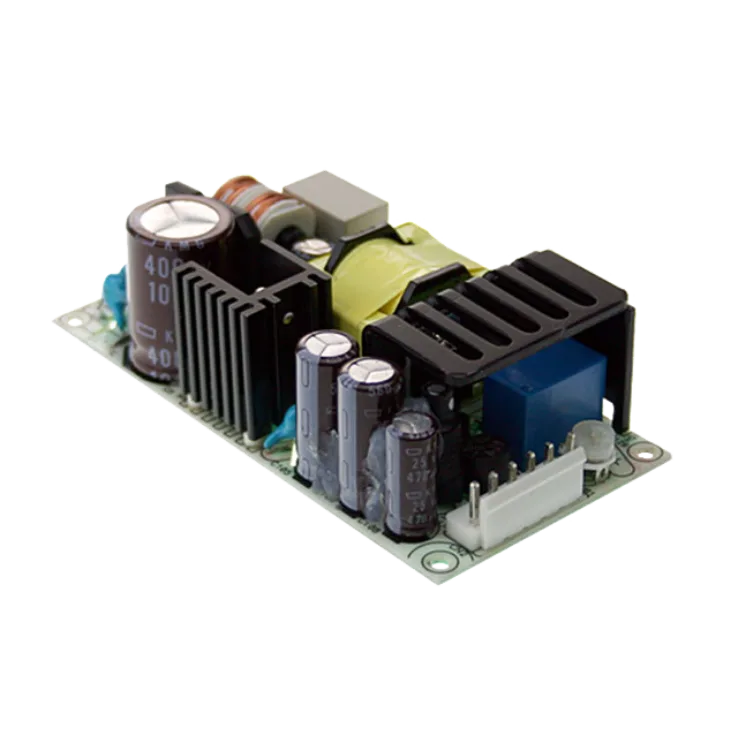

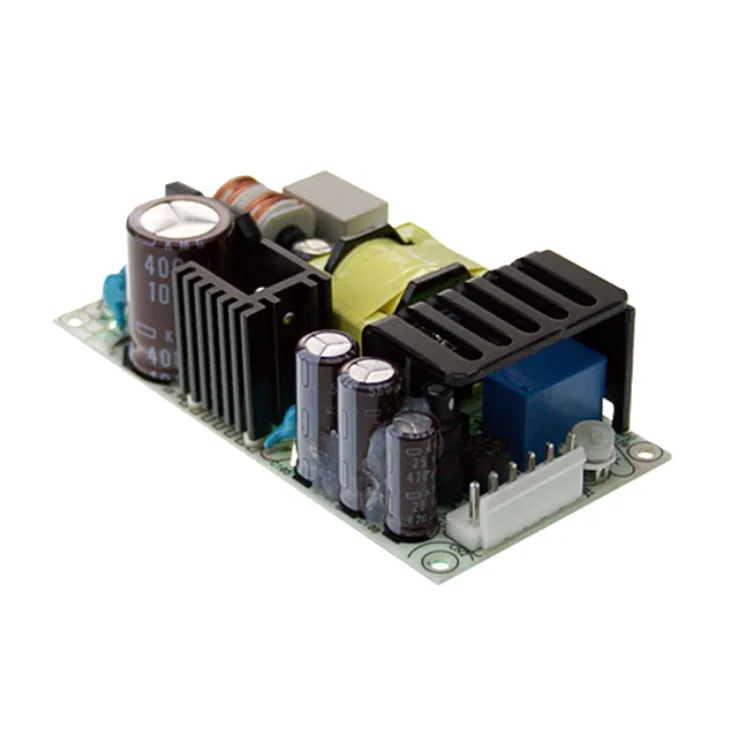

PSC-60 Series Chargers 59.34W

Download Datasheet
Models:
  • PSC-60A
  • PSC-60B
  • PSC-60A-C
  • PSC-60B-C
Manufacturer: Mean Well
Type: Chargers

PSC-60 Series Features:

UPS Function

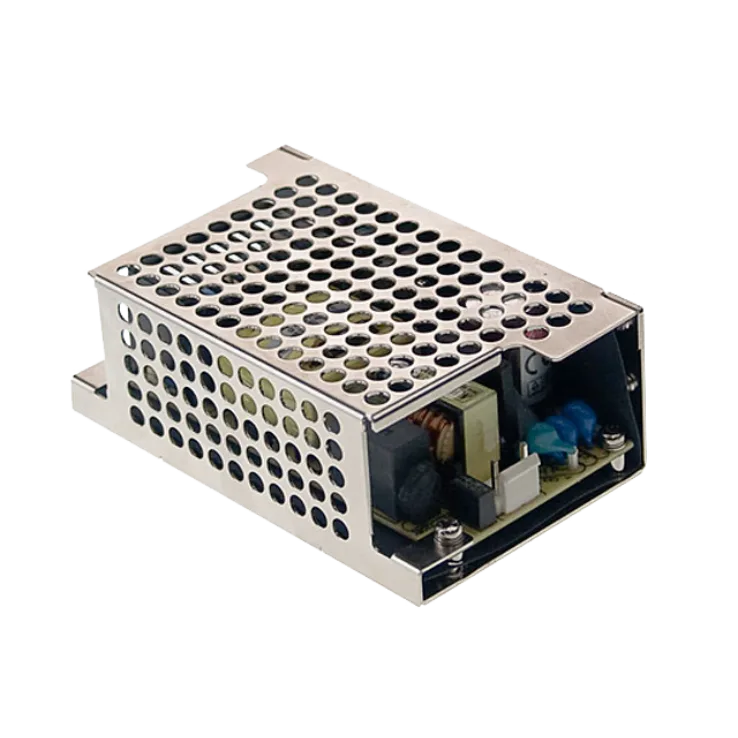

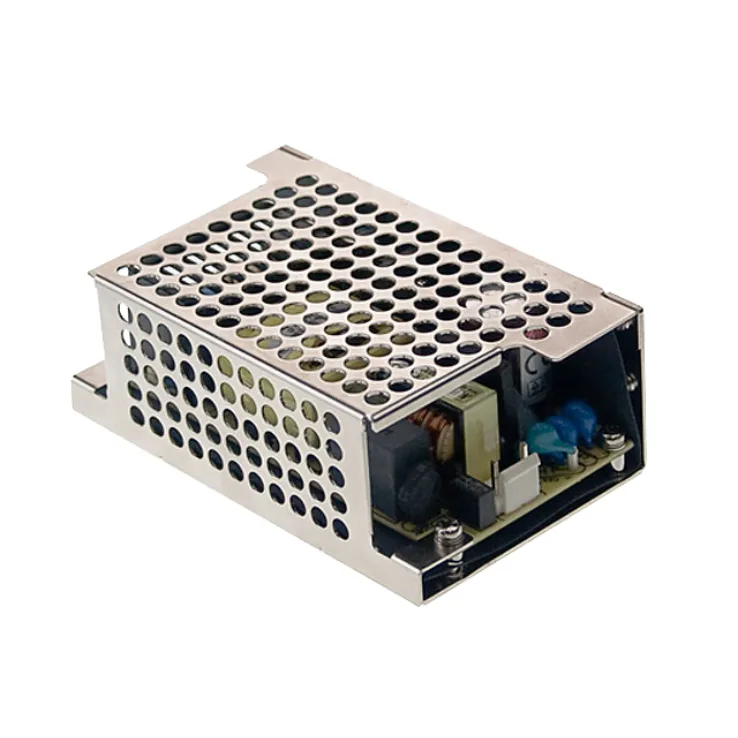

Case available (PSC-60x-C)

Protections: Short circuit / Overload / Over voltage

Other Features:

  • 4”x2” compact size
  • Polarity protection by fuse
  • Alarm signal for AC OK and battery low
  • Cooling by free air convection
  • 100% full load burn-in test
  • Universal AC input / Full range
  • 2 years warranty
Wattage 59.34 59.34 59.34 59.34
Input Voltage 90~264VAC; 127~370VDC 90~264VAC; 127~370VDC 90~264VAC 127~370VDC 90~264VAC 127~370VDC
Output Current 2.8A, .5A 1.4A~0.75A 2.8A, .5A 1.4A~0.75A
Output Voltage 13.8V 27.6V 13.8V 27.6V
Output Voltage Options Dual Dual Dual Dual
DC output adjustment 13.8V:12~15V 27.6V:24~29V 13.8V:12~15V 27.6V:24~29V
Dimensions 101.6 x 50.8 x 29 101.6 x 50.8 x 29 103.4*62*37mm 103.4*62*37mm
Working Temperature -20~+70°C
Safety Standards UL60950-1, TUV EN60950-1 approved
EMC Standards EN55022 class B. EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 EN55022 class B,EN61000-3-2,-3 , EN61000- 4-2,3,4,5,6,8,11
