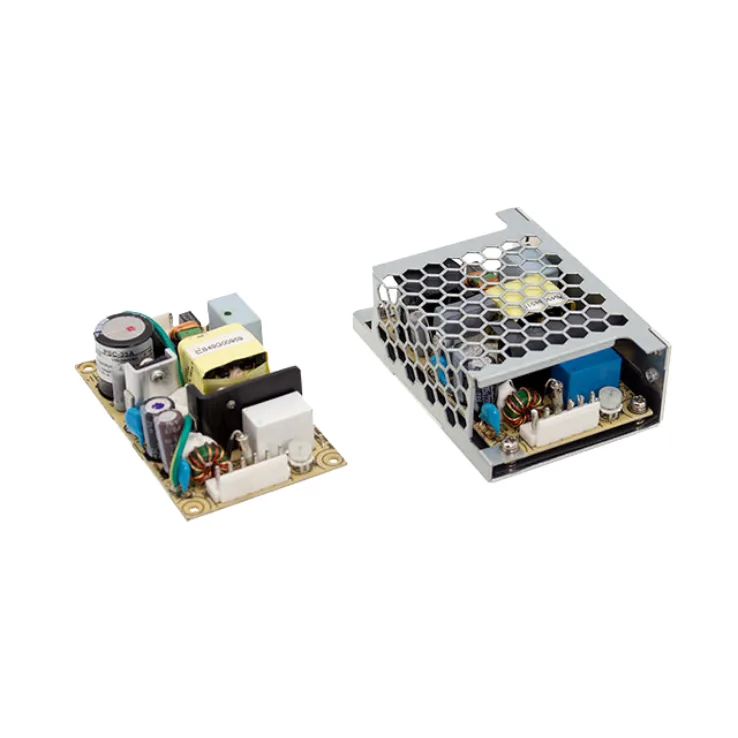

Mean Well PSC-35 Series Chargers 35W

Download Datasheet
Models:
  • PSC-35A
  • PSC-35A-C
Manufacturer: Mean Well
Type: Chargers

PSC-35 Series Features:

Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage
Battery low protection / Battery polarity protection by fuse
Alarm signal for AC OK and Battery low
Cooling by free air convection
100% full load burn-in test
2 years warranty

Wattage 35 35
Output Current 1.7 0.9
Output Voltage 13.8 13.8
Output Voltage Options Single Single
Dimensions 84.6x 50.8x 24 84.6x 50.8x 24
Working Temperature -20~+60B0C (refer to output derating curve)
Safety Standards UL60950-1, TUV EN60950-1 approved
EMC Standards Compliance to EN55022 (CISPR22) Class B, EN6100-3-2,-3, EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A
