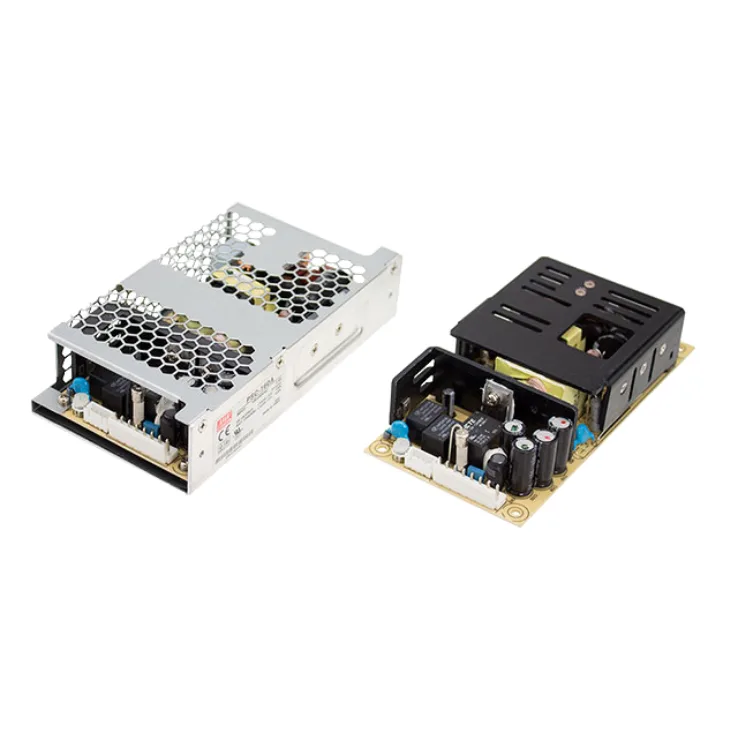

PSC-160 Series Chargers 160W

PSC-160 Series Features:

Universal AC input/ Full range

Built-in active PFC function

Battery low protection/ Battery polarity protection by fuse

Protections: Short circuit/ Overload/ Over voltage

Other features:

Spec	PSC-160A	PSC-160B	PSC-160A-C	PSC-160B-C
Wattage	160	160	160	160
Input Voltage	90~264VAC 127~370VDC	90~264VAC 127~370VDC	90~264VAC 127~370VDC	90~264VAC 127~370VDC
Output Current	CH1: 0~11.6A CH2: 4A	CH1: 0~5.8A CH2: 2A	CH1: 0~11.6A CH2: 4A	CH1: 0~5.8A CH2: 2A
Output Voltage	13.8	27.6	27.6	27.6
Output Voltage Options	Single	Single	Single	Single
DC output adjustment	CH1: 12~15V	CH1: 24~29V	CH1: 12~15V	CH1: 24~29V
Dimensions	152.4x 76.2x 31	152.4x 76.2x 31	155.48537mm	155.48537mm
Working Temperature	-20~+70°C
Safety Standards	UL60950-1, TUV EN60950-1 approved
EMC Standards	Compliance to EN55011 (CISPR22) Class B, EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A
