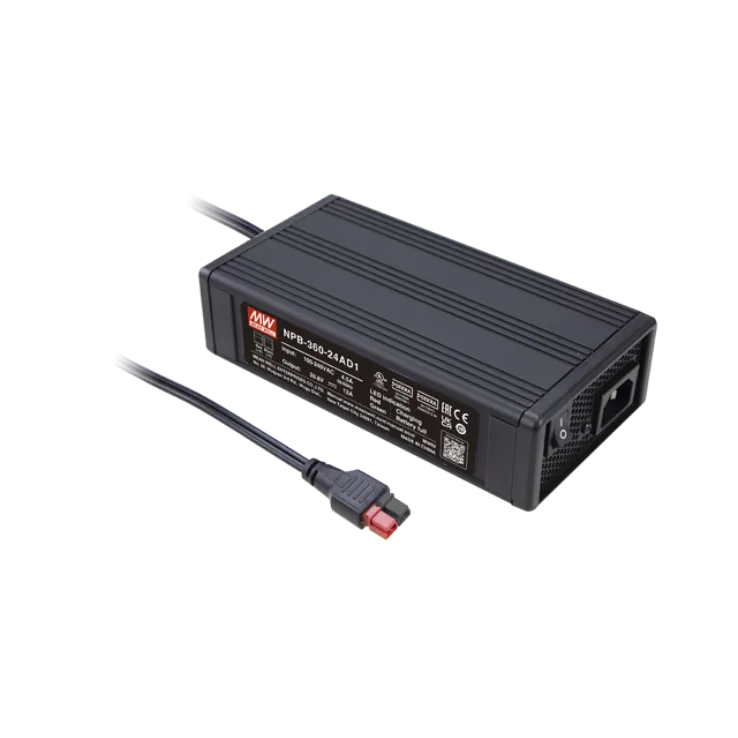

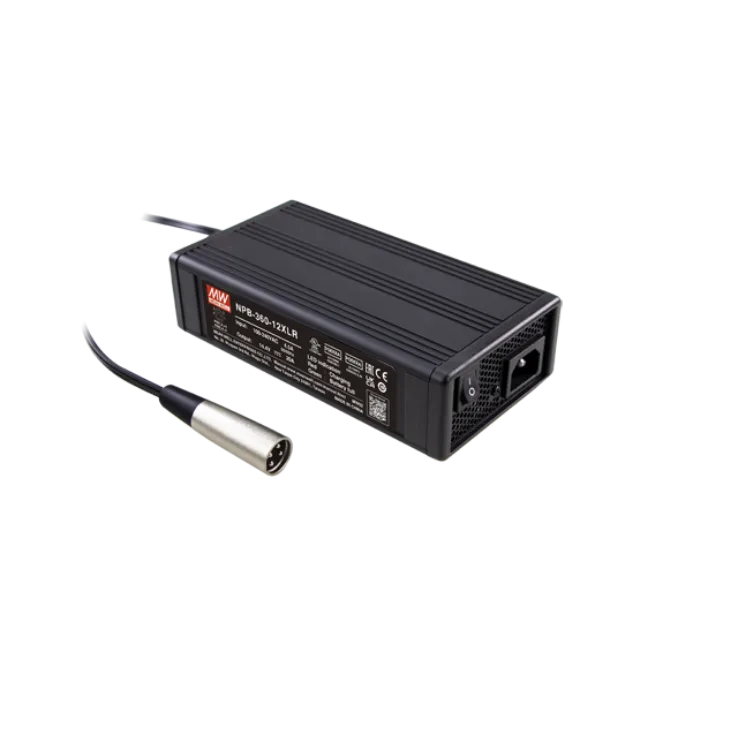

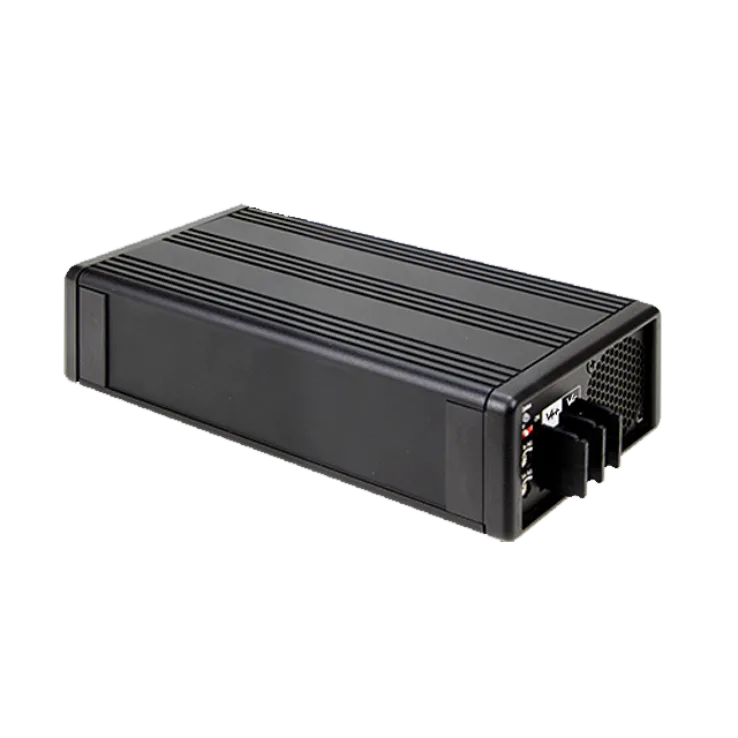

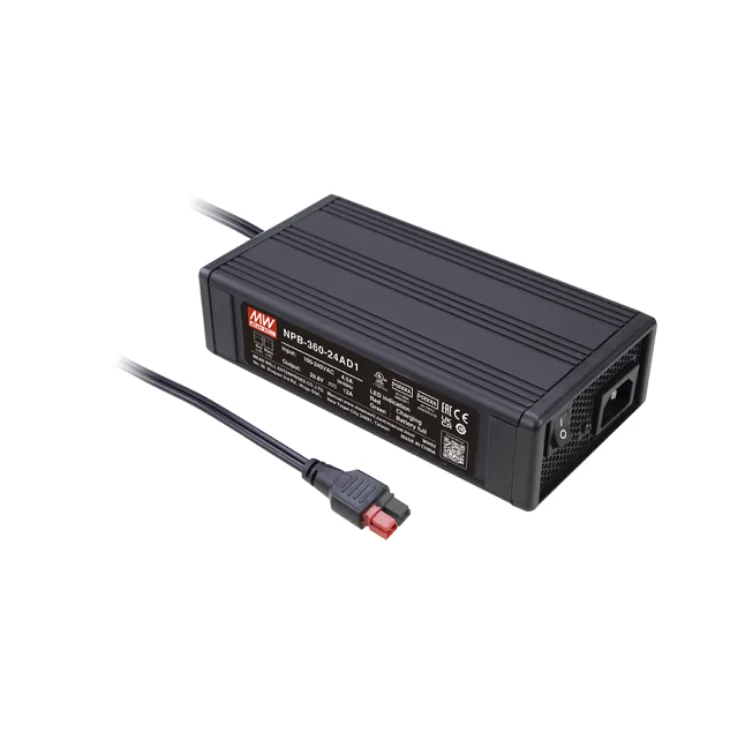

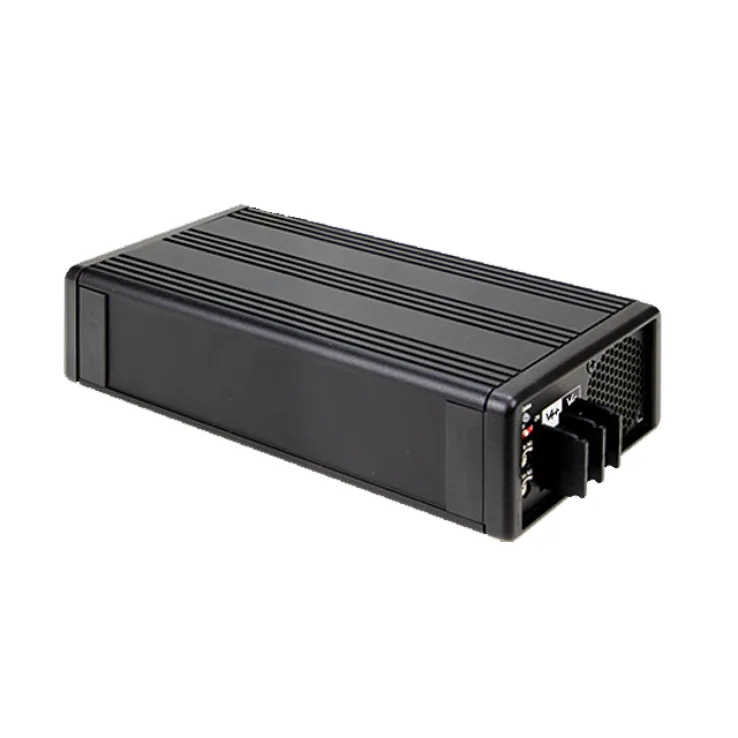

NPB-360 Series Chargers 264.8–364.8W

Models:	NPB-360-12XLR NPB-360-12AD1 NPB-360-12TB NPB-360-24XLR NPB-360-24AD1 NPB-360-24TB NPB-360-48XLR NPB-360-48AD1 NPB-360-48TB
Manufacturer:	MEAN WELL
Type:	Chargers

NPB-360 Series Features:

NPB-360 series is a 360W charger for compatible with lead-acid (Flooded, Gel, AGM) and li-ion (Lithium iron, lithium manganese) batteries.

Features:

* Charging voltage adjustable (10.5~15.2V, 21~30.4V, 42~60.8V)

*Charging current adjustable (50~100% rated current)

2 or 3 stage selectable by DIP S.W
No load power consumption <0.4W(AC S.W off)
-30~70°C wide operating temperature
Protections: Short circuit/ Over voltage/ Over temperature/ Battery reverse polarity protection
Comply with UL/EN62368-1 and EN60335-1/2-99
Front panel LED indicator for charging status
3 years warranty

Spec	NPB-360-12XLR	NPB-360-12AD1	NPB-360-12TB	NPB-360-24XLR	NPB-360-24AD1	NPB-360-24TB	NPB-360-48XLR	NPB-360-48AD1	NPB-360-48TB
Wattage	304	304	304	364.8	364.8	364.8	364.8	264.8	364.8
Input Voltage	90~264VAC	90~264VAC	90~264VAC	90~264VAC	90~264VAC	90~264VAC	90~264VAC	90~264VAC	90~264VAC
Output Current	20	20	20	12	12	12	6	6	6
Output Voltage Options	10.5~15.2	10.5~15.2V	10.5~15.2	21~30.4	21~30.4	21~30.4	42~60.8	42~60.8	42~60.8
Dimensions	1809649mm	1809649mm	1809649mm	1809649mm	1809649mm	1809649mm	1809649mm	1809649mm	1809649mm
Working Temperature	-30~70°C
Safety Standards	CB IEC62368-1, IEC60335-1/2-29, Dekra BS EN/EN62368-1, BS EN/EN60335-1/2-29, UL62368-1, EAC TP TC 004 approved
EMC Standards	BS EN/EN55032(CISPR32), BS EN/EN55014-1, BS EN/EN61000-3-2, BS EN/EN61000-3-3	BS EN/EN55032(CISPR32, BS EN/EN55014-1, BS EN/EN61000-3-2, BS EN/EN61000-3-3		BS EN/EN55032(CISPR32, BS EN/EN55014-1, BS EN/EN61000-3-2, BS EN/EN61000-3-3						BS EN/EN55032(CISPR32, BS EN/EN55014-1, BS EN/EN61000-3-2, BS EN/EN61000-3-3
