NPB-120 Series Chargers 103.4–121.6W

Download Datasheet
Models:

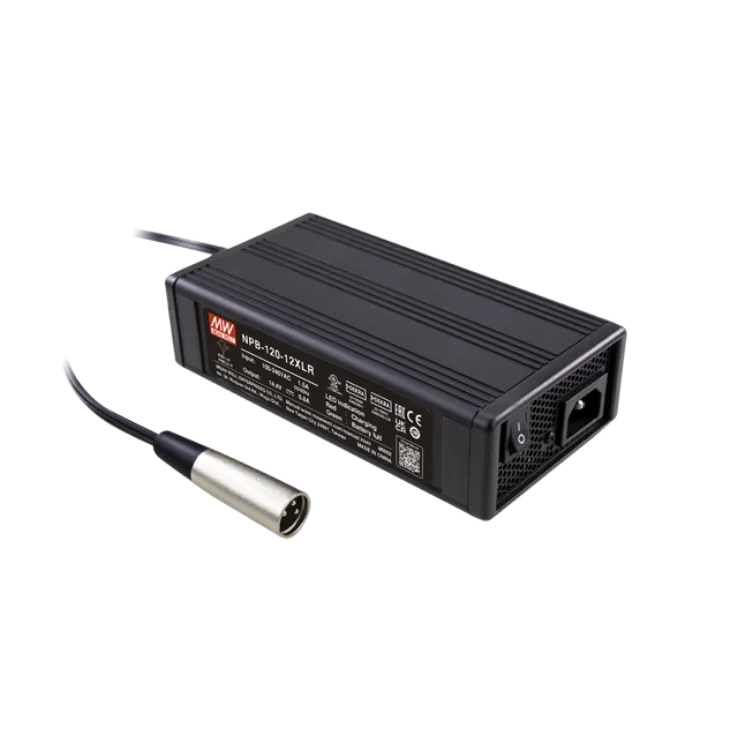

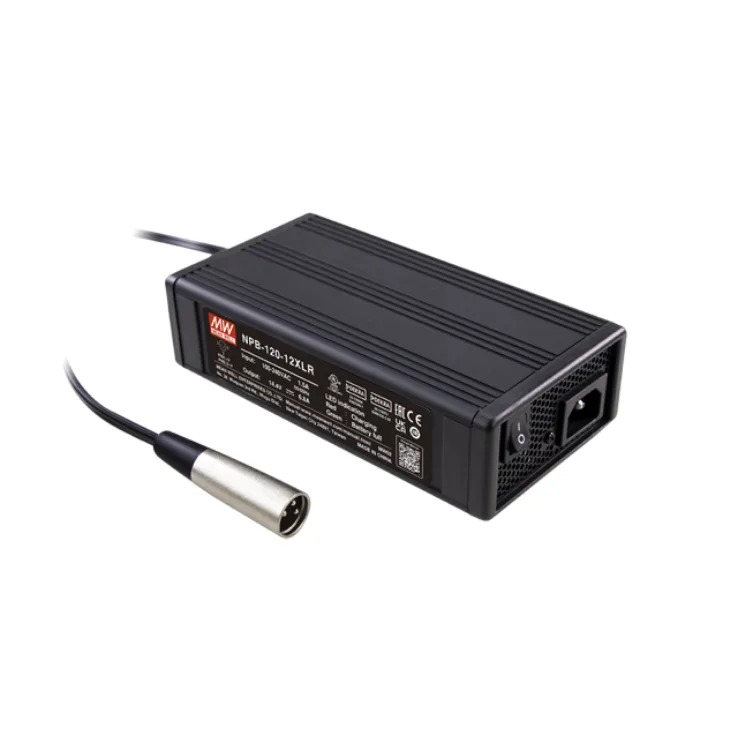

  • NPB-120-12XLR

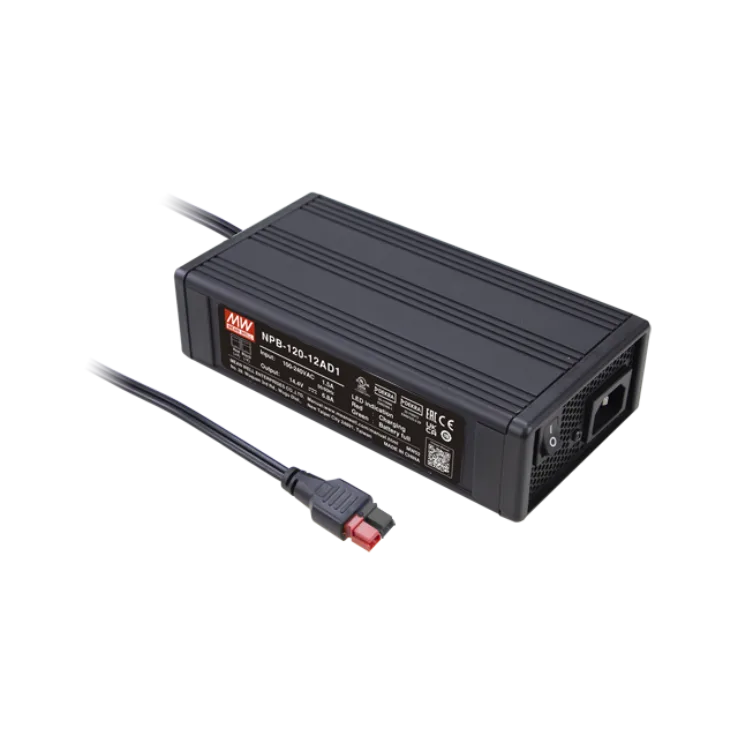

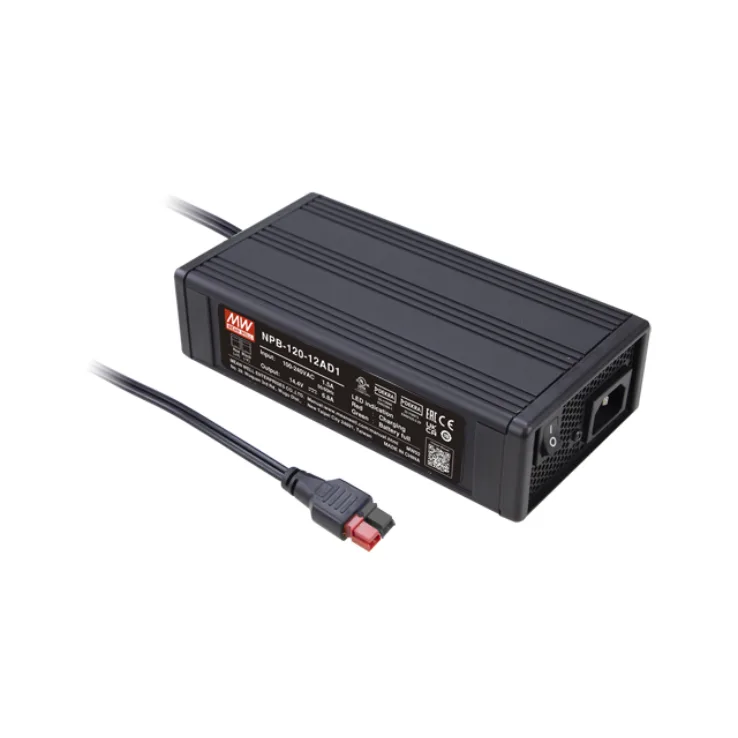

  • NPB-120-12AD1

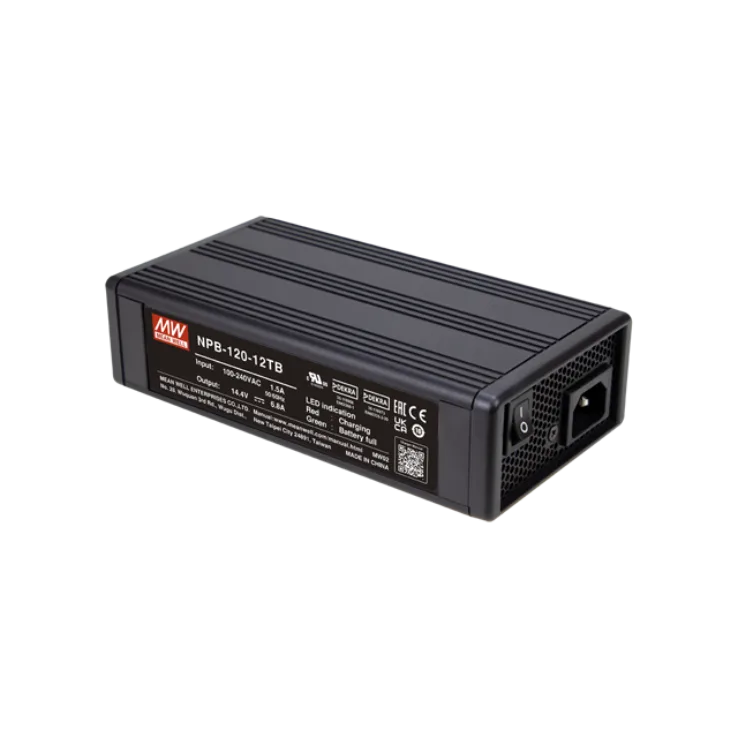

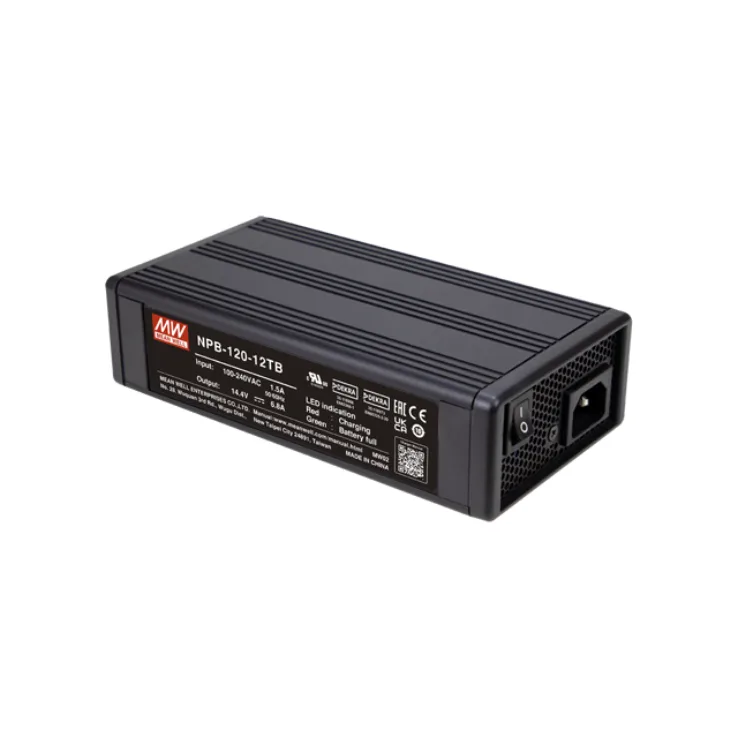

  • NPB-120-12TB
  • NPB-120-24XLR
  • NPB-120-24AD1
  • NPB-120-24TB
  • NPB-120-48XLR
  • NPB-120-48AD1
  • NPB-120-48TB
Manufacturer: Mean Well
Type: Chargers

NPB-120 Series Features:

NPB-120 series is a 120W charger for compatible with lead-acid (Flooded, Gel, AGM) and li-ion (Lithium iron, lithium manganese) batteries.

Features:

  • 90~264Vac universal AC input, built-in PFC
  • Charger for compatible with lead-acid and li-ion batteries
  • Fanless design
  • Wide adjustable output range by VR:

* Charging voltage adjustable (10.5~15.2V, 21~30.4V, 42~60.8V)

*Charging current adjustable (50~100% rated current)

  • 2 or 3 stage selectable by DIP S.W
  • No load power consumption <0.4W(AC S.W off)
  • -30~70°C wide operating temperature
  • Protections: Short circuit/ Over voltage/ Over temperature/ Battery reverse polarity protection
  • Comply with UL/EN62368-1 and EN60335-1/2-99
  • Front panel LED indicator for charging status
  • 3 years warranty
Wattage 103.4 103.4 103.4 121.6 121.6 121.6 121.6 121.6 121.6
Input Voltage 90~264VAC 90~264VAC 90~264VAC 90~264VAC 90~264VAC 90~264VAC 90~264VAC 90~264VAC 90~264VAC
Output Current 6.8 6.8 6.8 4 4 4 2 2 2
Output Voltage Options 10.5~15.2 10.5~15.2V 10.5~15.2 21~30.4 21~30.4 21~30.4 42~60.8 42~60.8 42~60.8
Dimensions 180*96*49mm 180*96*49mm 180*96*49mm 180*96*49mm 180*96*49mm 180*96*49mm 180*96*49mm 180*96*49mm 180*96*49mm
Working Temperature -30~70°C
Safety Standards CB IEC62368-1, IEC60335-1/2-29, Dekra BS EN/EN62368-1, BS EN/EN60335-1/2-29, UL62368-1, EAC TP TC 004 approved
EMC Standards BS EN/EN55032(CISPR32), BS EN/EN55014-1, BS EN/EN61000-3-2, BS EN/EN61000-3-3 BS EN/EN55032(CISPR32, BS EN/EN55014-1, BS EN/EN61000-3-2, BS EN/EN61000-3-3 BS EN/EN55032(CISPR32, BS EN/EN55014-1, BS EN/EN61000-3-2, BS EN/EN61000-3-3 BS EN/EN55032(CISPR32, BS EN/EN55014-1, BS EN/EN61000-3-2, BS EN/EN61000-3-3
