MEAN WELL MEAN WELL logo

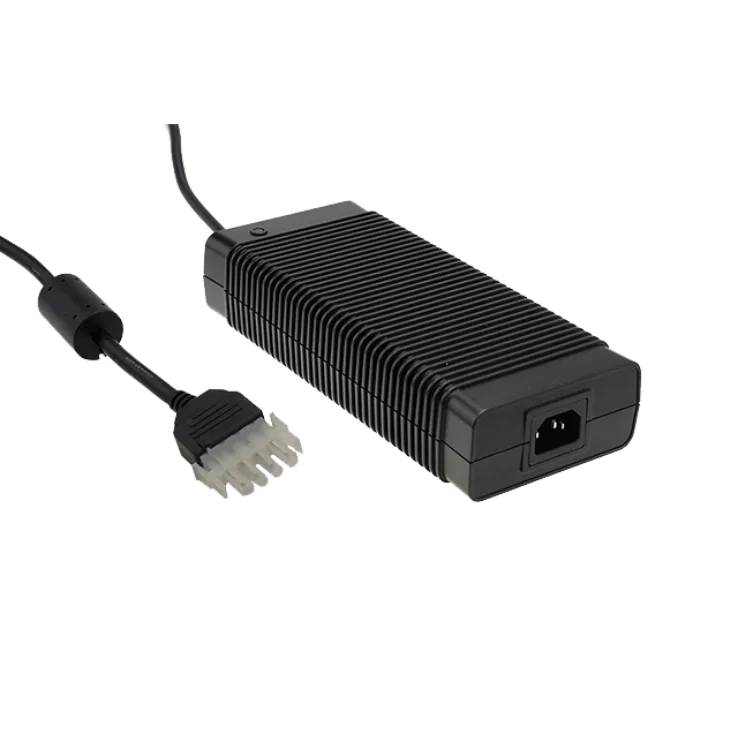

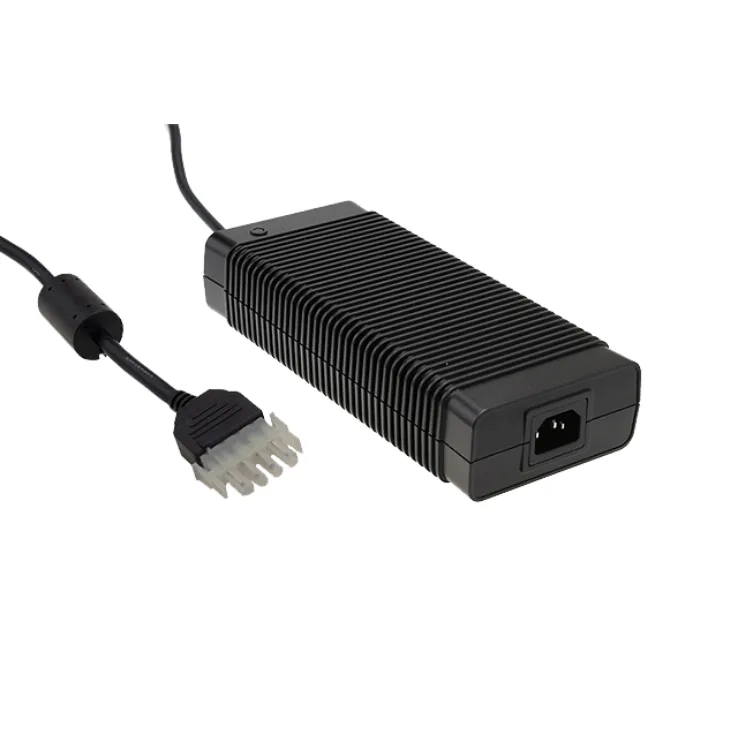

GC330A Series Chargers 326W

Download Datasheet
Models:
  • GC330A36-C4P
  • GC330A48-C4P
Manufacturer: MEAN WELL
Type: Chargers

GC330A Series Features:

No load power consumption<1W

2 stage charging characteristic

Protections: Short circuit / Overload / Over voltage / Over temperature

Other features:

  • Universal AC input / Full range
  • 3 pole AC inlet IEC320-C14
  • Class I power (with earth pin)
  • Fully-enclosed plastic case
  • 2 color LED indicator for charging status
  • Cooling by free air convection
  • Built-in active PFC function, PF>0.90
  • 2 years warranty
Wattage 326 326
Input Voltage 90~264VAC 127~370VDC 90~264VAC 127~370VDC
Output Current 6.4~8.0 4.8~6.0
Output Voltage 42 54
Output Voltage Options Single Single
Dimensions 220x 95x 46 220x 95x 46
Working Temperature 0~+40°C
Safety Standards UL60950-1, TUV EN60335-2-29 approved
EMC Standards Compliance to EN55022 class B, EN61000-3-2,3, FCC PART 15 class B / CISPR22 class B, EN61000-4-2,3,4,5,6,8,11, light industry level, criteria A
