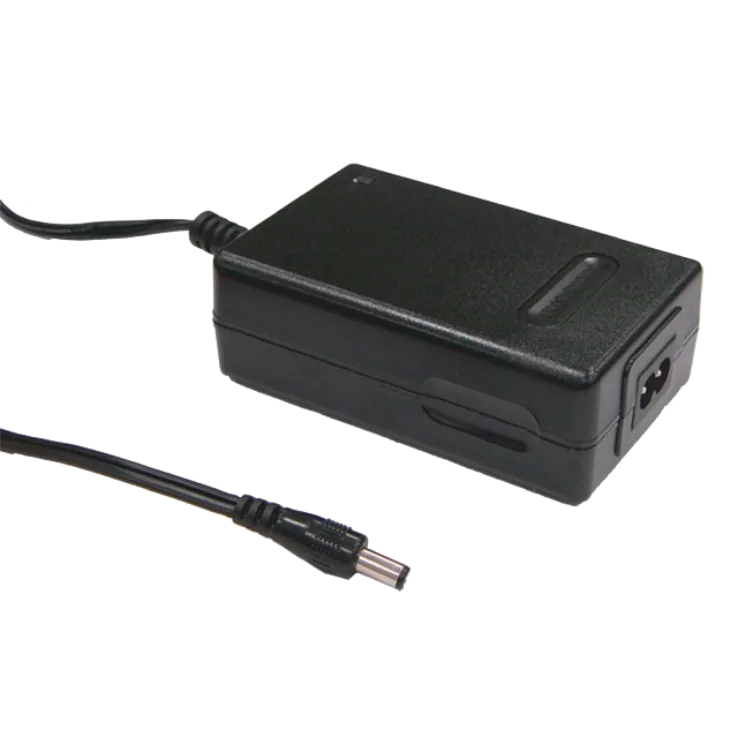

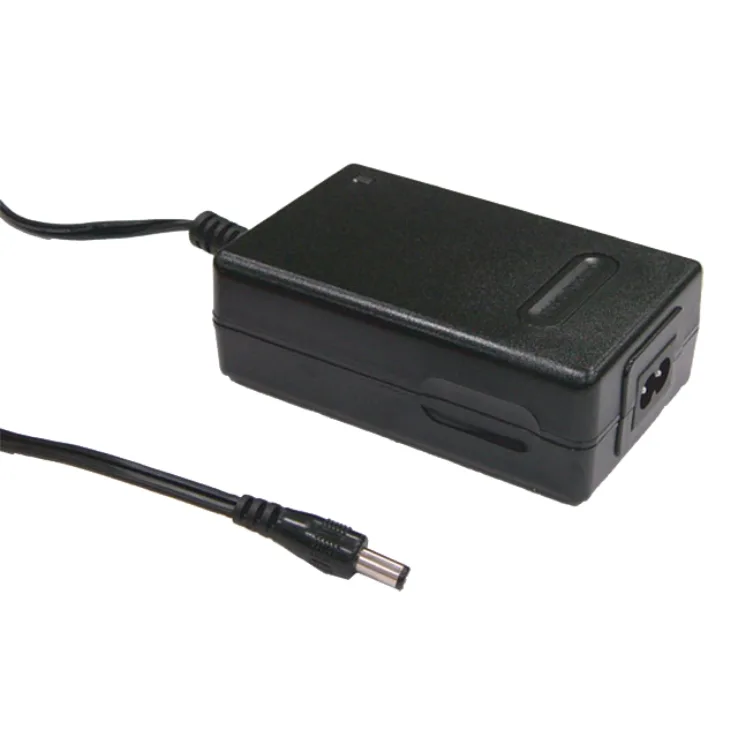

GC30B Series Chargers 30W

Models:	GC30B-0P1J GC30B-1P1J GC30B-2P1J GC30B-4P1J GC30B-5P1J GC30B-6P1J GC30B-11P1J
Manufacturer:	MEAN WELL
Type:	Chargers

GC30B Series Features:

No load power consumption < 1W

Protections: Short circuit / Overload / Over voltage / Over temp.

Other features:

Spec	GC30B-0P1J	GC30B-1P1J	GC30B-2P1J	GC30B-4P1J	GC30B-5P1J	GC30B-6P1J	GC30B-11P1J
Wattage	30	30	30	30	30	30	30
Input Voltage	90~264VAC, 127~370VDC	90~264VAC, 127~370VDC	90~264VAC, 127~370VDC	90~264VAC, 127~370VDC	90~264VAC, 127~370VDC	90~264VAC: 127~370VDC	90~264VAC, 127~370VDC
Output Current	0~4	0~3.99	0~3	0~2.09	0~1.60	0~1.04	0~3.00
Output Voltage	4.2	5.6	8.4	14.3	16.8	28.6	7.2
Output Voltage Options	Single	Single	Single	Single	Single	Single	Single
DC output adjustment	N/A	N/A	N/A	N/A	N/A	N/A	N/A
Dimensions	108 x 67 x 36	108 x 67 x 36	108 x 67 x 36	108 x 67 x 36	108 x 67 x 36	108 x 67 x 36	108 x 67 x 36
Working Temperature	-10~+50°C
Safety Standards	UL60950-1, CSA C22.2, TUV EN60950-1
EMC Standards	EN55014-1, EN61000-3-2,3, EN61000-4-2,3,4,5,6,11
