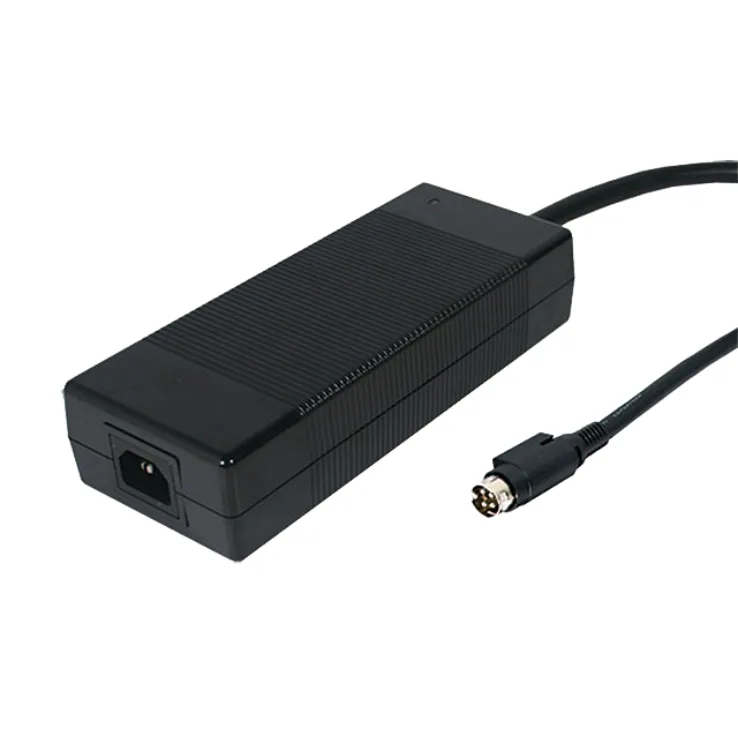

GC220A Series Chargers 220W

Download Datasheet
Models:
  • GC220A12-R7B
  • GC220A24-R7B
  • GC220A48-R7B
Manufacturer: MEAN WELL
Type: Chargers

GC220A Series Features:

No load power consumption <1W

Protections: Short circuit / Overload / Over voltage / Over temp.

Other features:

  • Universal AC input / Full range
  • High efficiency up to 93%
  • Built-in active PFC function
  • Cooling by free air convection
  • 3 pole AC inlet IEC320-C14
  • Class I power (with earth pin)
  • 2 color LED indicator for charging status
  • 2 years warranty
Wattage 220 220 220
Input Voltage 90~264VAC, 127~370VDC 90~264VAC, 127~370VDC 90~264VAC, 127~370VDC
Output Current 13.5 8 4
Output Voltage 13.6 27.2 54.4
Output Voltage Options Single Single Single
DC output adjustment N/A N/A N/A
Dimensions 210 x 85 x 46 210 x 85 x 46 210 x 85 x 46
Working Temperature -10~+50°C
Safety Standards TUV EN55022 class B approved EN60950-1 approved TUV EN60950-1
EMC Standards EN55022 class B,EN61000-3-2,3 ,EN61000-4-2,3,4,5,6,8,11,FCC part 15 class B
