Mean Well Mean Well logo

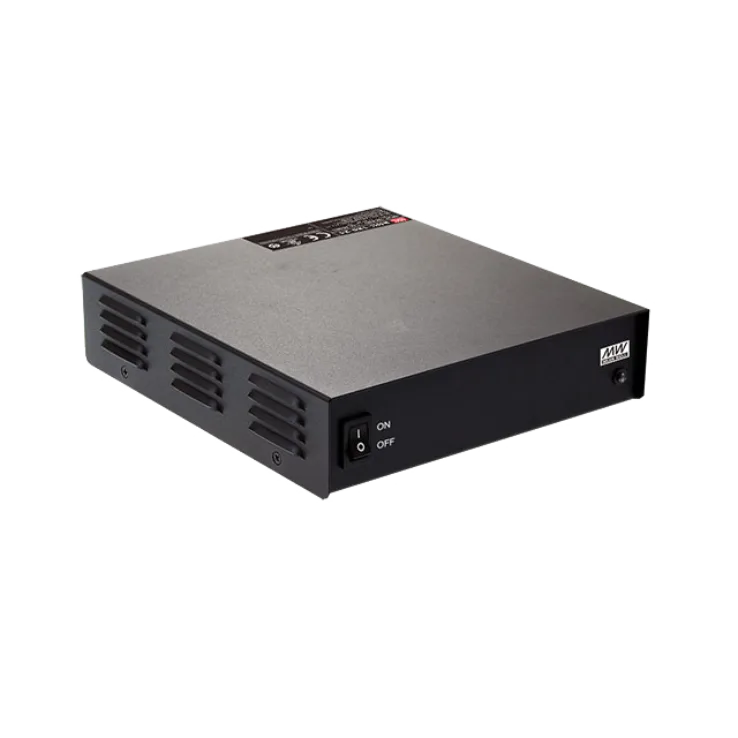

ENC-180 Series Chargers 172.8W

Download Datasheet
Models:
  • ENC-180-12
  • ENC-180-24
  • ENC-180-48
Manufacturer: Mean Well
Type: Chargers

ENC-180 Series Features:

Charger for lead-acid batteries and Li-ion batteries

Protections: Short circuit / Over voltage / Over temperature / Battery under voltage / Battery over voltage / Battery reverse polarity protection

Other Features:

  • Built-in 3 stage programmable charging curve
  • Universal AC Input / Full range
  • Built-in active PFC function
  • Fanless design, cooling by free air convection
  • Built-in temperature compensation function
  • 3 years warranty
Wattage 172.8 172.8 172.8
Input Voltage 90~264VAC 90~264VAC 90~264VAC
Output Current 12 6 3
Output Voltage 14.4 28.8 57.6
Output Voltage Options Single Single Single
DC output adjustment 9-15V 18-30V 36-60V
Dimensions 192x 178x 45.5 192x 178x 45.5 192x 178x 45.5
Working Temperature -30~+70°C
Safety Standards IEC60950-1, UL60950-1 approved
EMC Standards Compliance to EN55032 (CISPR32) class B, EN61000-3-2,-3, FCC PART 15 / CISPR22 class B Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024.
