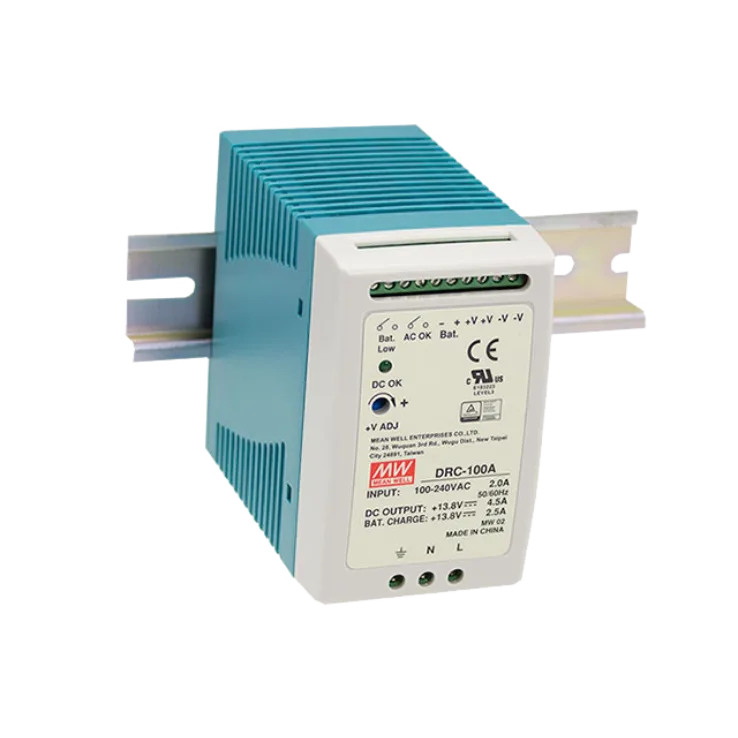

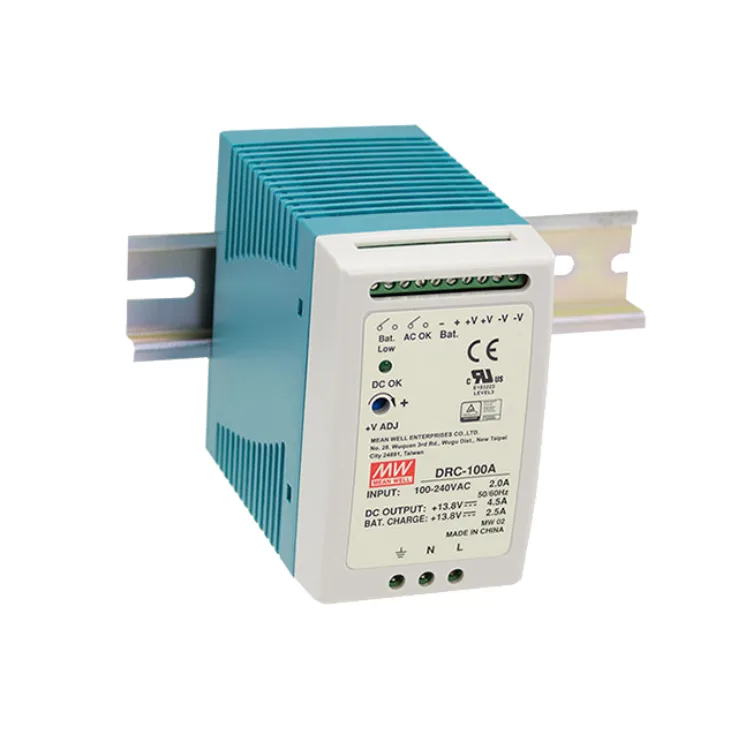

Mean Well DRC-100 Series Chargers 96.6W

Models:	DRC-100A DRC-100B
Manufacturer:	Mean Well
Type:	Chargers

DRC-100 Series Features:

Universal AC input / Full range Protections: Short circuit / Overload / Over voltage Battery low protection / Battery polarity protection by fuse Can be installed on DIN Rail TS-35/7.5 or 15 Alarm signal for AC OK and Battery low Cooling by free air convection LED indicator for power on 100% full load burn-in test 3 years warranty

Spec	DRC-100A	DRC-100B
Wattage	96.6	96.6
Input Voltage	90-264VAC	90-264VAC
Output Current	2.5-4.5A	1.25-2.25A
Output Voltage	14	28
Output Voltage Options	Single	Single
DC output adjustment	CH1:12-15V	CH1:24-30
Dimensions	55x 90x 100	55x 90x 100
Working Temperature	-40B0C-+85B0C
Safety Standards	UL60950-1, TUV EN60950-1 approved
EMC Standards	Compliance to EN55022 (CISPR22), class B, EN61000-3-2,-3, Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61204-3, light industry level, criteria A
