MEAN WELL

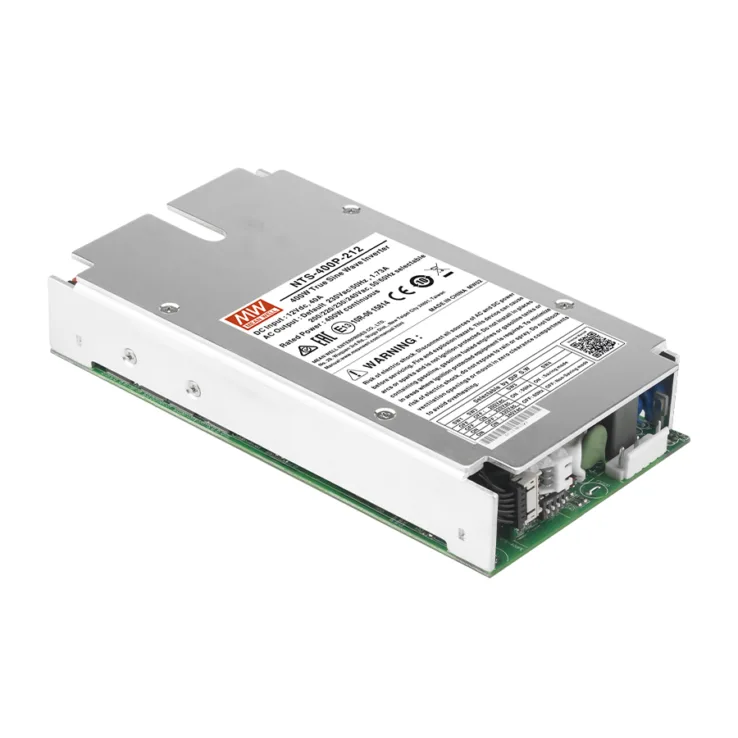

NTS-400P Series Inverters 400W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Inverters |
NTS-400P Series Features:
NTS-400P is a 400W highly reliable built-in type off-grid true sine wave DC-AC power inverter.
Features:
- DC-AC pure since wave output (THD<3%)
- Convection cooled fanless design, high efficiency up to 93%
- 200% Peak power capability (NTS-250P up to 500W, NTS-400P up to 800W)
- Built-in DIP switches to adjust AC output voltage, frequency, and work mode
- Energy saving mode no load power consumption < 1.2~1.5W (by model)
- -20～+70℃ ultra-wide operating temperature (derating required for >+40℃)
- Built-in remote ON/OFF control
- Support Tx /Rx computer communication interface to monitor inverter status
- Multiple intelligent protection functions (abnormal automatic shutdown):
DC input side – reverse polarity, under voltage, over voltage protections
AC output side – short circuit, overload, over temperature protections - PCB conformal coating, protection from moisture / dust / dirt
- Wide DC voltage input range, suitable for lead acid and lithium batteries
- Safety approvals: CB, E13, EAC, RCM, CE, FCC
- Dimensions (L x W x H): 186 x 100.5 x 32mm
- 3-year warranty
| Wattage | 400 | 400 | 400 | 400 | 400 | 400 |
|---|---|---|---|---|---|---|
| Input Voltage | 12 | 24 | 48 | 12 | 24 | 48 |
| Output Voltage | 110VAC | 110VAC | 110VAC | 230VAC | 230VAC | 230VAC |
| Output Voltage Options | 100/110/115/120 VAC selectable by DIP S.W | 100/110/115/120 VAC selectable by DIP S.W | 100/110/115/120 VAC selectable by DIP S.W | 200/220/230/240 VAC selectable by DIP S.W | 200/220/230/240 VAC selectable by DIP S.W | 200/220/230/240 VAC selectable by DIP S.W |
| Dimensions | 186*100.5*32mm | 186*100.5*32mm | 186*100.5*32mm | 186*100.5*32mm | 186*100.5*32mm | 186*100.5*32mm |
| Working Temperature | -20~70°C | |||||
| Safety Standards | CB IEC62368-1 for all models. E13, EAC TPTC004, AS/NZS 62368.1 for NTS-400P-212/224/248 | |||||
| EMC Standards | FCC for 112,124,148 only. EN55032(CISPR32) for 212,224,248 only, EN61000-3-2, EN61000-3-3 | |||||
