MEAN WELL MEAN WELL logo

NTS-1700 Series Inverters 1500–1700W

Download Datasheet
Models:
  • NTS-1700-112US
  • NTS-1700-112GFCI
  • NTS-1700-112UN
  • NTS-1700-124US
  • NTS-1700-124GFCI
  • NTS-1700-124UN
  • NTS-1700-148US
  • NTS-1700-148GFCI
  • NTS-1700-148UN
  • NTS-1700-212EU
  • NTS-1700-212CN
  • NTS-1700-212AU
  • NTS-1700-212UK
  • NTS-1700-212UN
  • NTS-1700-224EU
  • NTS-1700-224CN
  • NTS-1700-224AU
  • NTS-1700-224UK
  • NTS-1700-224UN
  • NTS-1700-248EU
  • NTS-1700-248CN
  • NTS-1700-248AU
  • NTS-1700-248UK
  • NTS-1700-248UN
Manufacturer: MEAN WELL
Type: Inverters

NTS-1700 Series Features:

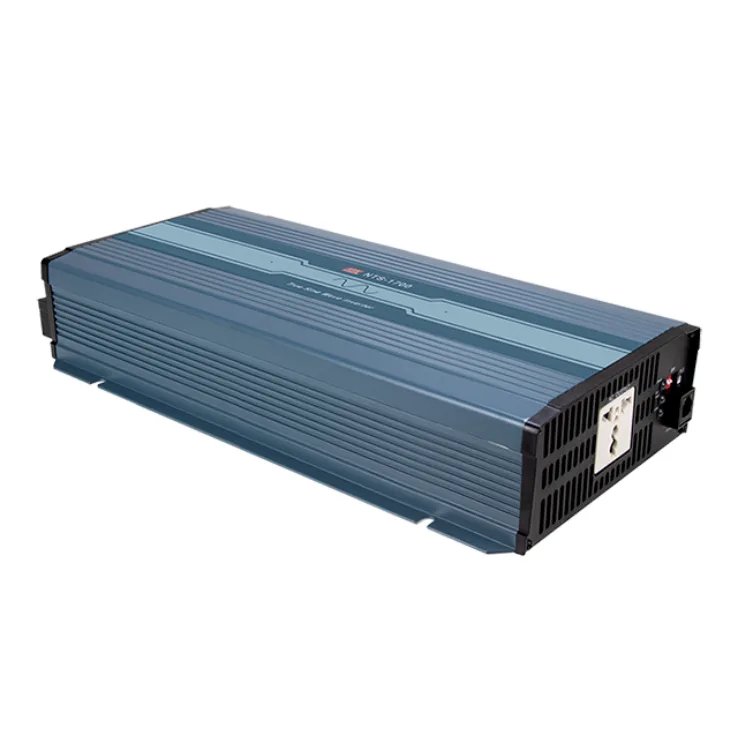

NTS-1700 is a 1700W highly reliable off-grid true sine wave DC-AC power inverter.

Features:

  • True sine wave output (THD <3%)
  • High surge power up to 3400W
  • Temperature controlled cooling fan
  • AC output voltage and frequency selectable by DIP S.W
  • No Load disspation <1.5W at standby saving mode
  • -25~70°C wide operating temperature
  • Power ON-OFF remote control
  • Front panel indicator for operation status
  • Protections: Input: Reverse polarity/DC low alarm/ DC low shutdown/ Over voltage. Output: Short circuit/Overload/Over temp.
  • Battery over discharge protection (low voltage disconnect)
  • Suitable for lead-acid or li-on batteries
  • Remote controller
  • Support RS-232 communication (Communication cable order no: DS-RJ11-RS232, sold separately)
  • Conformal coating
  • 3 years warranty
Wattage 1500 1500 1500 1500 1500 1500 1500 1500 1500 1700 1700 1700 1700 1700 1700 1700 1700 1700 1700 1700 1700 1700 1700 1700
Input Voltage 12 12 12 24 24 24 48 48 48 12 12 12 12 12 24 24 24 24 24 48 48 48 48 48
Output Voltage 110 110 110 110 110 110 110 110 110 230 230 230 230 230 230 230 230 230 230 230 230 230 230 230
Output Voltage Options 100/110/115/120VAC selectable by DIP S.W 100/110/115/120VAC selectable by DIP S.W 100/110/115/120VAC selectable by DIP S.W 100/110/115/120VAC selectable by DIP S.W 100/110/115/120VAC selectable by DIP S.W 100/110/115/120VAC selectable by DIP S.W 100/110/115/120VAC selectable by DIP S.W 100/110/115/120VAC selectable by DIP S.W 100/110/115/120VAC selectable by DIP S.W 200/220/230/240Vac selectable by DIP S.W 200/220/230/240Vac selectable by DIP S.W 200/220/230/240Vac selectable by DIP S.W 200/220/230/240Vac selectable by DIP S.W 200/220/230/240Vac selectable by DIP S.W 200/220/230/240Vac selectable by DIP S.W 200/220/230/240Vac selectable by DIP S.W 200/220/230/240Vac selectable by DIP S.W 200/220/230/240Vac selectable by DIP S.W 200/220/230/240Vac selectable by DIP S.W 200/220/230/240Vac selectable by DIP S.W 200/220/230/240Vac selectable by DIP S.W 200/220/230/240Vac selectable by DIP S.W 200/220/230/240Vac selectable by DIP S.W 200/220/230/240Vac selectable by DIP S.W
Dimensions 400x184x70mm 400x184x70mm 400x184x70mm 400x184x70mm 400x184x70mm 400x184x70mm 400x184x70mm 400x184x70mm 400x184x70mm 400x184x70mm 400x184x70mm 400x184x70mm 400x184x70mm 400x184x70mm 400x184x70mm 400x184x70mm 400x184x70mm 400x184x70mm 400x184x70mm 400x184x70mm 400x184x70mm 400x184x70mm 400x184x70mm 400x184x70mm
Working Temperature -25~70°C
Safety Standards CB IEC62368-1, Dekra BS EN/62368-1, UL458, E13, EAC TO TC 004, AS/NZS 62368.1 approved
EMC Standards FCC for 112,124,148 only ( expect for Type-UN), BS EN/EN55032(CISPR32) for 212,224,248 only (expect for Type-UN)
