Mean Well Mean Well logo

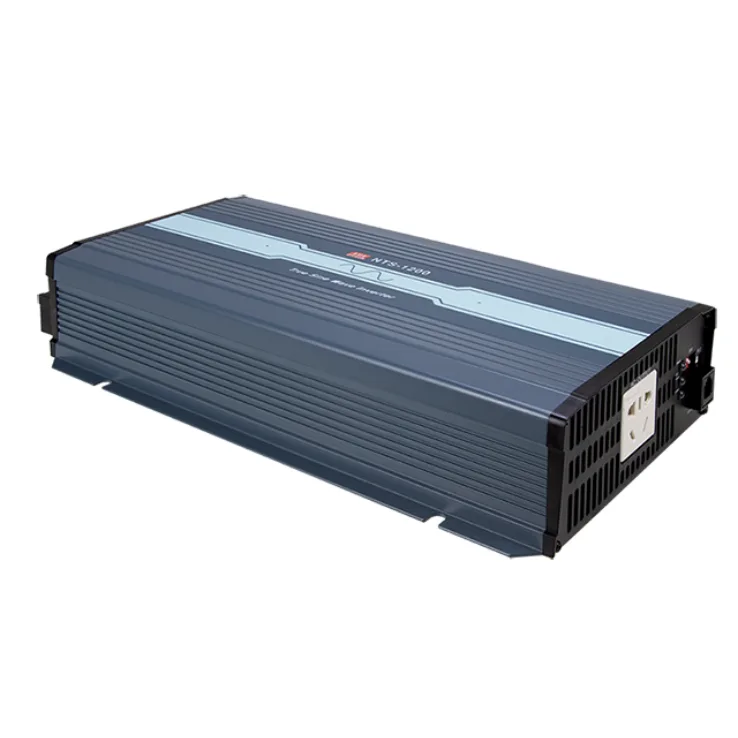

NTS-1200 Series Inverters 1200W

Download Datasheet
Models:
  • NTS-1200-112US
  • NTS-1200-112GFCI
  • NTS-1200-112UN
  • NTS-1200-124US
  • NTS-1200-124GFCI
  • NTS-1200-124UN
  • NTS-1200-148US
  • NTS-1200-148GFCI
  • NTS-1200-148UN
  • NTS-1200-212EU
  • NTS-1200-212CN
  • NTS-1200-212AU
  • NTS-1200-212UK
  • NTS-1200-212UN
  • NTS-1200-224EU
  • NTS-1200-224CN
  • NTS-1200-224AU
  • NTS-1200-224UK
  • NTS-1200-224UN
  • NTS-1200-248EU
  • NTS-1200-248CN
  • NTS-1200-248AU
  • NTS-1200-248UK
  • NTS-1200-248UN
Manufacturer: Mean Well
Type: Inverters

NTS-1200 Series Features:

NTS-1200 is a 1200W highly reliable off-grid true sine wave DC-AC power inverter.

Features:

  • True sine wave output (THD<3%)
  • High surge power up to 2000W
  • Temperature controlled cooling fan
  • AC output voltage and frequency selectable by DIP S.W
  • No load disspation <1.5W at standby saving mode
  • -25~70°C wide operating temperature
  • Power ON-OFF remote control
  • Front panel indicator for operation status
  • Protections: Input: Reverse polarity/ DC low alarm/ DC low shutdown/ Over voltage. Output: Short circuit/ Overload/ Over temp.
  • Battery over discharge protection (low voltage disconnect)
  • Suitable for lead-acid or li-on batteries
  • Remote controller
  • Support RS-232 communication
  • Conformal coating
  • 3 years warranty
Wattage 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200
Input Voltage 12 12 12 24 24 24 48 48 48 12 12 12 12 12 4 24 24 24 24 48 48 48 48 48
Output Voltage 110VAC 110VAC 110VAC 110VAC 110VAC 110VAC 110VAC 110VAC 110VAC 230VAC 230VAC 230VAC 230VAC 230VAC 230VAC 230VAC 230VAC 230VAC 230VAC 230VAC 230VAC 230VAC 230VAC 230VAC
Output Voltage Options 100/110/115/120 Vac selectable by DIP S.W 100/110/115/120 Vac selectable by DIP S.W 100/110/115/120 Vac selectable by DIP S.W 100/110/115/120 Vac selectable by DIP S.W 100/110/115/120 Vac selectable by DIP S.W 100/110/115/120 Vac selectable by DIP S.W 100/110/115/120 Vac selectable by DIP S.W 100/110/115/120 Vac selectable by DIP S.W 100/110/115/120 Vac selectable by DIP S.W 200/220/230/240 Vac selectable by DIP S.W 200/220/230/240 Vac selectable by DIP S.W 200/220/230/240 Vac selectable by DIP S.W 200/220/230/240 Vac selectable by DIP S.W 200/220/230/240 Vac selectable by DIP S.W 200/220/230/240 Vac selectable by DIP S.W 200/220/230/240 Vac selectable by DIP S.W 200/220/230/240 Vac selectable by DIP S.W 200/220/230/240 Vac selectable by DIP S.W 200/220/230/240 Vac selectable by DIP S.W 200/220/230/240 Vac selectable by DIP S.W 200/220/230/240 Vac selectable by DIP S.W 200/220/230/240 Vac selectable by DIP S.W 200/220/230/240 Vac selectable by DIP S.W 200/220/230/240 Vac selectable by DIP S.W
Dimensions 333*184*70mm 333*184*70mm 333*184*70mm 333*184*70mm 333*184*70mm 333*184*70mm 333*184*70mm 333*184*70mm 333*184*70mm 333*184*70mm 333*184*70mm 333*184*70mm 333*184*70mm 333*184*70mm 333*184*70mm 333*184*70mm 333*184*70mm 333*184*70mm 333*184*70mm 333*184*70mm 333*184*70mm 333*184*70mm 333*184*70mm 333*184*70mm
Working Temperature -25~70°C
Safety Standards CB IEC62368-41, Dekra BS EN/EN62368-1, UL458, E13, EAC TP TC 004, AS/NZS 62368.1 approved
EMC Standards FCC for 112,124,148 only(except for Type-UN), BS EN/EN55032(CISPR32) for 212,224,248 only(except for Type-UN), BS EN/EN61000-3-2, BS EN/EN61000-3-3
