NTU-1700 Series Inverters 1500–1700W

Models:	NTU-1700-112US NTU-1700-124GFCI NTU-1700-112UN NTU-1700-124US NTU-1700-124GFCI NTU-1700-124UN NTU-1700-148US NTU-1700-148GFCI NTU-1700-148UN NTU-1700-212EU NTU-1700-212CN NTU-1700-212AU NTU-1700-212UK NTU-1700-212UN NTU-1700-224EU NTU-1700-224CN NTU-1700-224AU NTU-1700-224UK NTU-1700-224UN NTU-1700-248EU NTU-1700-248CN NTU-1700-248AU NTU-1700-248UK NTU-1700-248UN
Manufacturer:	MEAN WELL
Type:	Inverters

NTU-1700 Series Features:

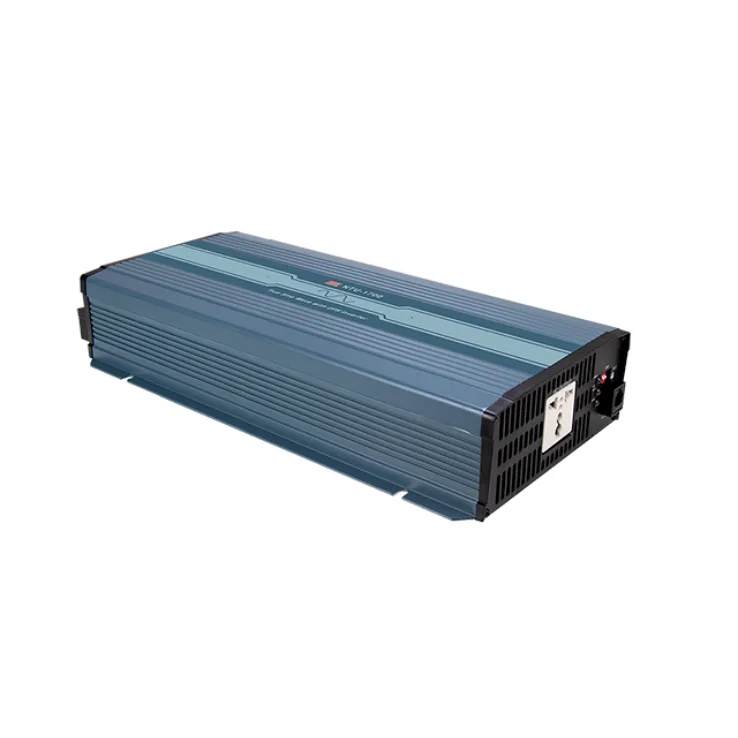

NTU-1700 is a 1700W highly reliable off-grid true sine wave DC-AC power inverter with built-in UPS function (AC by-pass).

Features:

Built-in UPS function (AC by-pass)
True sine wave output (THD<3%)
High surge power up to 3400W
Temperature controlled cooling fan
AC output voltage and frequency selectable by DIP S.W
-25~70°C wide operating temperature
Power ON-OFF remote control

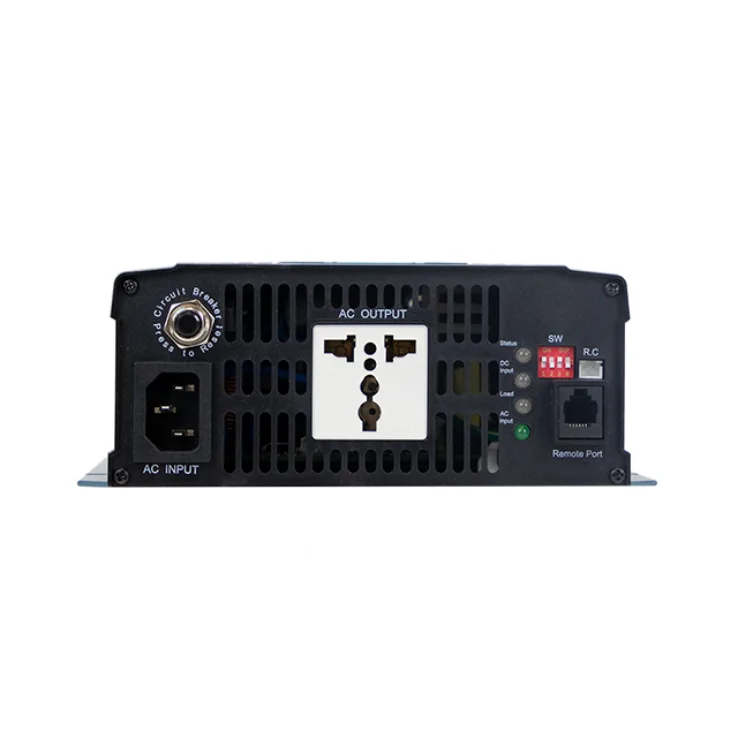

Front panel indicator for operation status

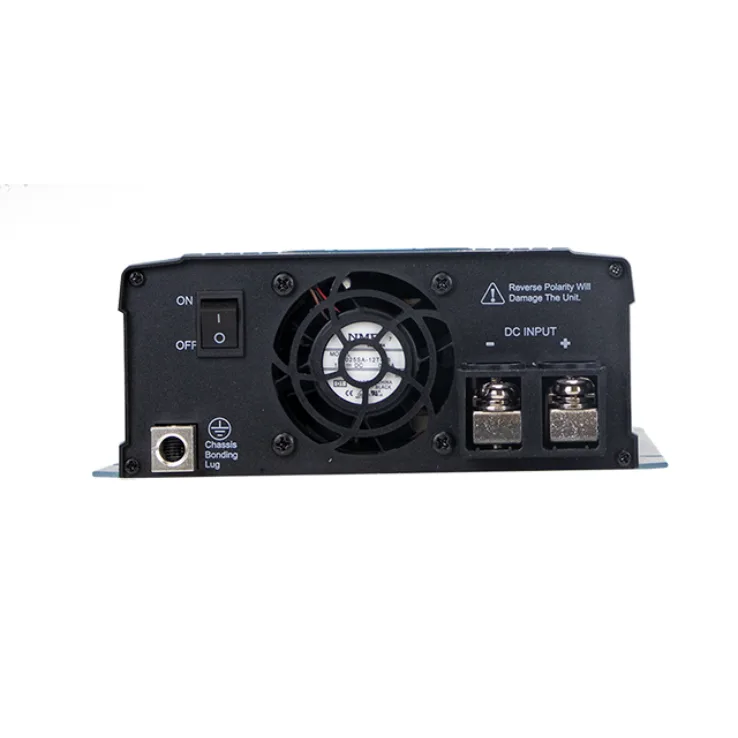

Protections: Input: Reverse polarity/DC low alarm/ DC low shutdown/Over voltage. Output: Short circuit/Overload/Over temp.
Battery over discharge protection (low voltage disconnect)
Suitable for lead-acid or li-on batteries
Remote controller
Support RS-232 communication (communication cable order no: DS-RJ11-RS232, sold separately)
Conformal coating
3 years warranty

Spec	NTU-1700-112US	NTU-1700-112GFCI	NTU-1700-112UN	NTU-1700-124US	NTU-1700-124GFCI	NTU-1700-124UN	NTU-1700-148US	NTU-1700-148GFCI	NTU-1700-148UN	NTU-1700-212EU	NTU-1700-212CN	NTU-1700-212AU	NTU-1700-212UK	NTU-1700-212UN	NTU-1700-224EU	NTU-1700-224CN	NTU-1700-224AU	NTU-1700-224UK	NTU-1700-224UN	NTU-1700-248EU	NTU-1700-248CN	NTU-1700-248AU	NTU-1700-248UK	NTU-1700-248UN
Wattage	1500	1500	1500	1500	1500	1500	1500	1500	1500	1700	1700	1700	1700	1700	1700	1700	1700	1700	1700	1700	1700	1700	1700	1700
Input Voltage	12	12	12	24	24	24	48	48	48	12	12	12	12	12	24	24	24	24	24	48	48	48	48	48
Output Voltage	110	110	110	110	110	110	110	110	110	230	230	230	230	230	230	230	230	230	230	230	230	230	230	230
Output Voltage Options	100/110/115/120VAC selectable by DIP S.W	100/110/115/120VAC selectable by DIP S.W	100/110/115/120VAC selectable by DIP S.W	100/110/115/120VAC selectable by DIP S.W	100/110/115/120VAC selectable by DIP S.W	100/110/115/120VAC selectable by DIP S.W	100/110/115/120VAC selectable by DIP S.W	100/110/115/120VAC selectable by DIP S.W	100/110/115/120VAC selectable by DIP S.W	200/220/230/240VAC selectable by DIP S.W	200/220/230/240VAC selectable by DIP S.W	200/220/230/240VAC selectable by DIP S.W	200/220/230/240VAC selectable by DIP S.W	200/220/230/240VAC selectable by DIP S.W	200/220/230/240VAC selectable by DIP S.W	200/220/230/240VAC selectable by DIP S.W	200/220/230/240VAC selectable by DIP S.W	200/220/230/240VAC selectable by DIP S.W	200/220/230/240VAC selectable by DIP S.W	200/220/230/240VAC selectable by DIP S.W	200/220/230/240VAC selectable by DIP S.W	200/220/230/240VAC selectable by DIP S.W	200/220/230/240VAC selectable by DIP S.W	200/220/230/240VAC selectable by DIP S.W
Dimensions	400x184x70mm	400x184x70mm	400x184x70mm	400x184x70mm	400x184x70mm	400x184x70mm	400x184x70mm	400x184x70mm	400x184x70mm	400x184x70mm	400x184x70mm	400x184x70mm	400x184x70mm	400x184x70mm	400x184x70mm	400x184x70mm	400x184x70mm	400x184x70mm	400x184x70mm	400x184x70mm	400x184x70mm	400x184x70mm	400x184x70mm	400x184x70mm
Working Temperature	-25~70°C
Safety Standards	CB IEC62368-1, Dekra BS EN/EN62368-1, UL458, E13, EAC TP TC 004, AS/NZS 62368-1 approved
EMC Standards	FCC for 112,124,148 only (expect for Type-UN), BS EN/EN55032(CISPR32) for 212,224,248 only (expect for Type-UN)
