MEAN WELL MEAN WELL logo

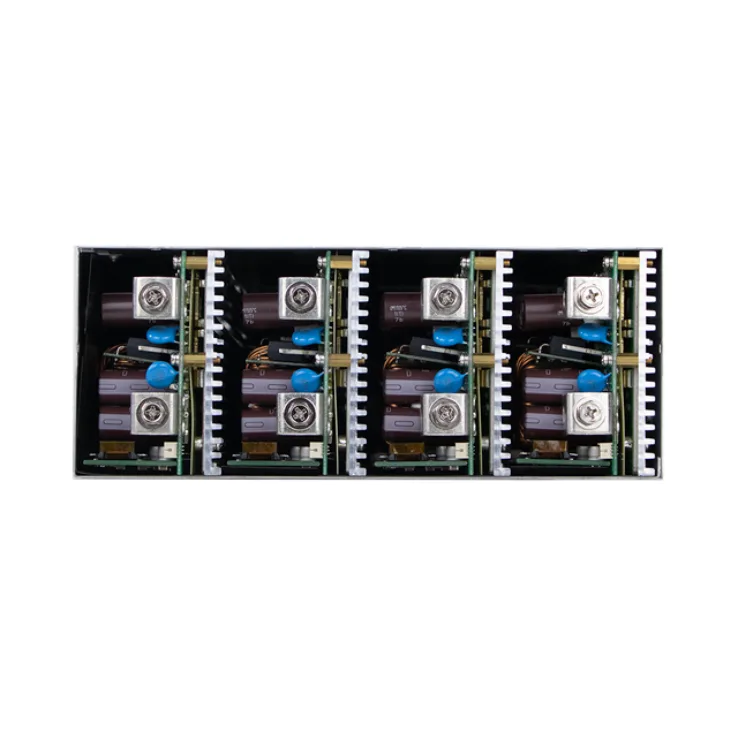

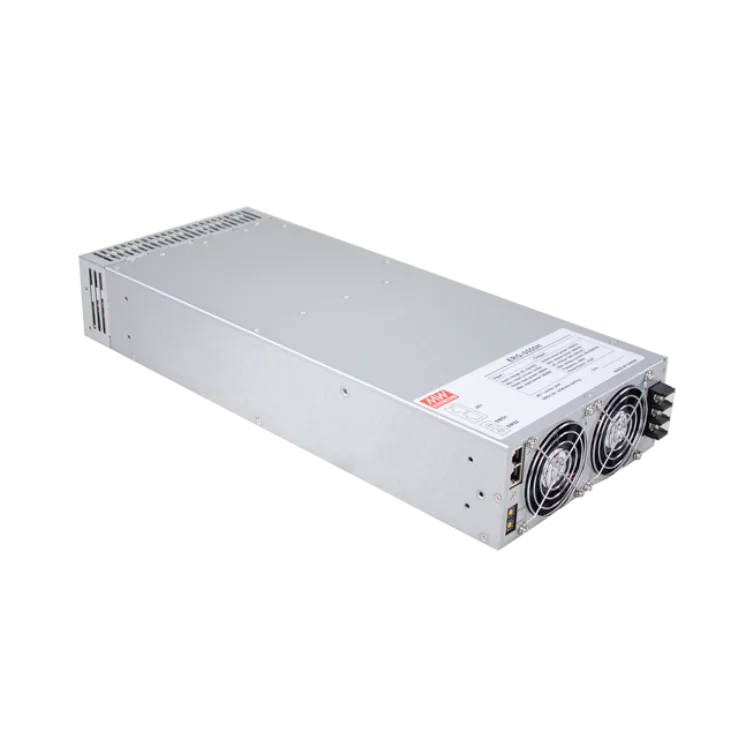

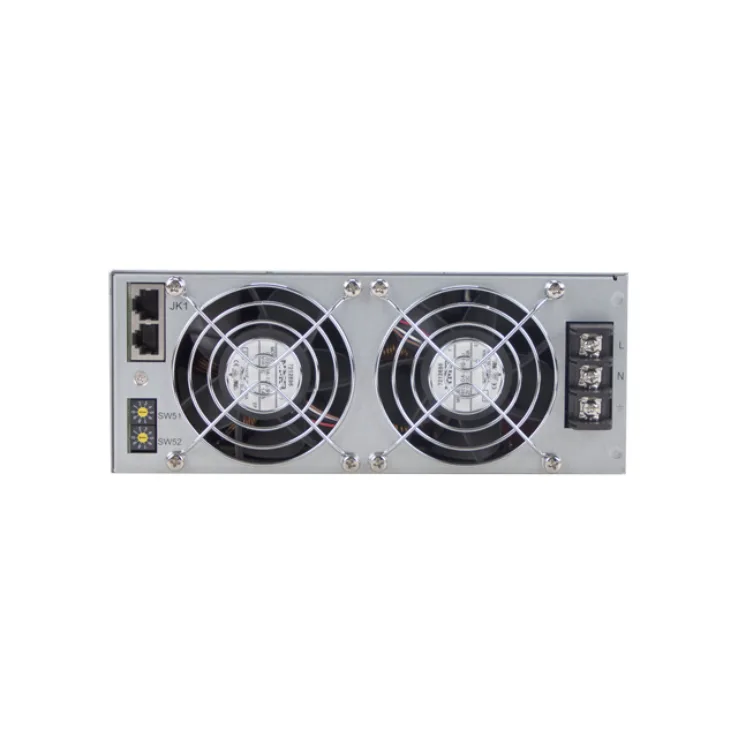

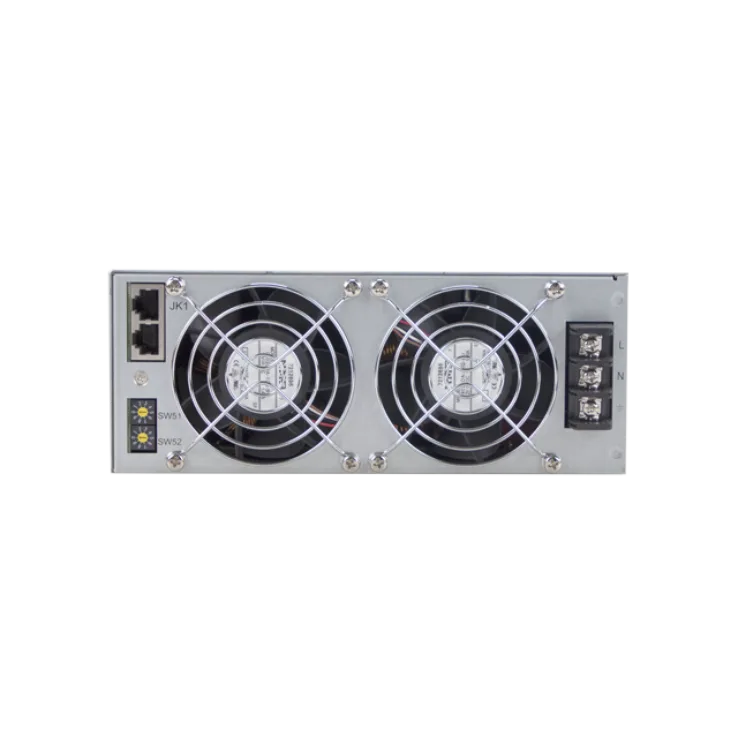

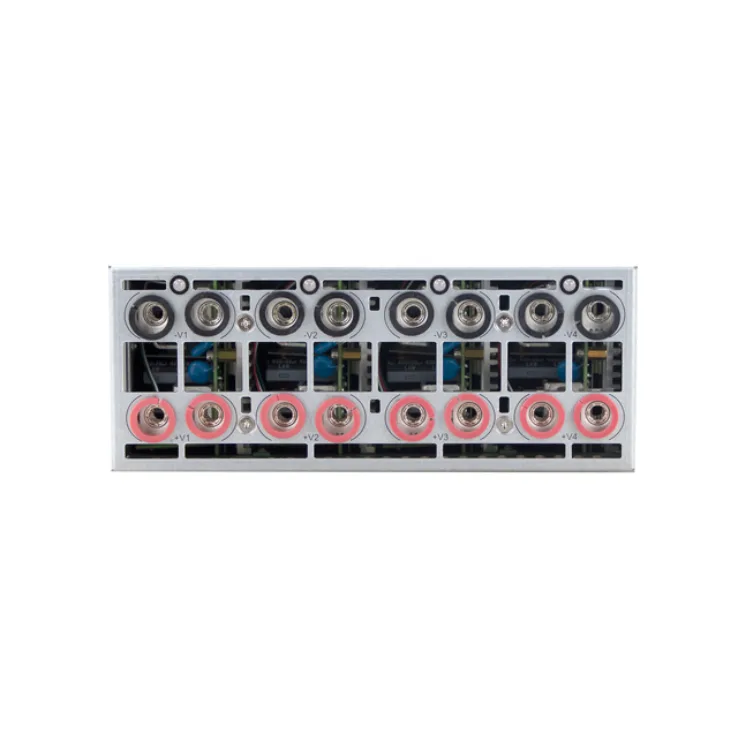

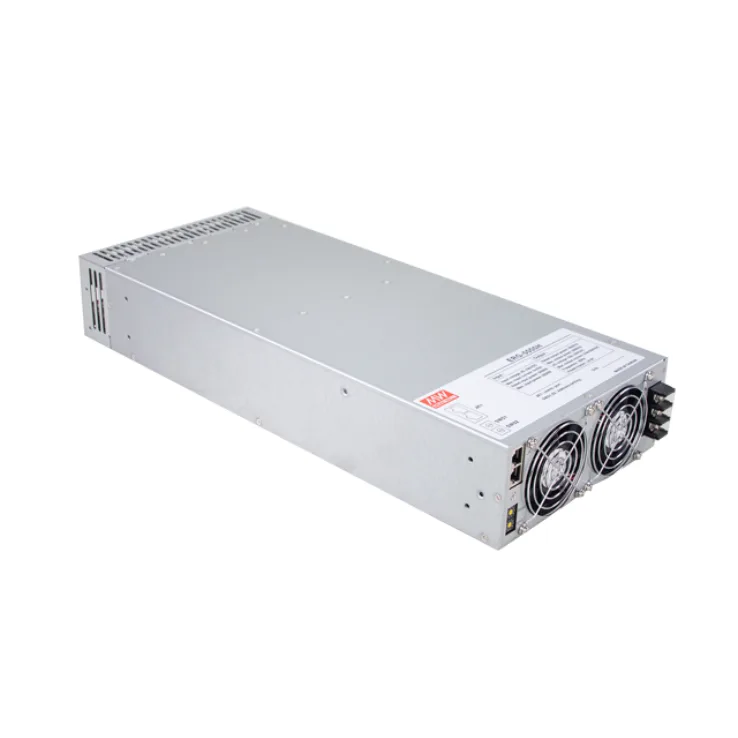

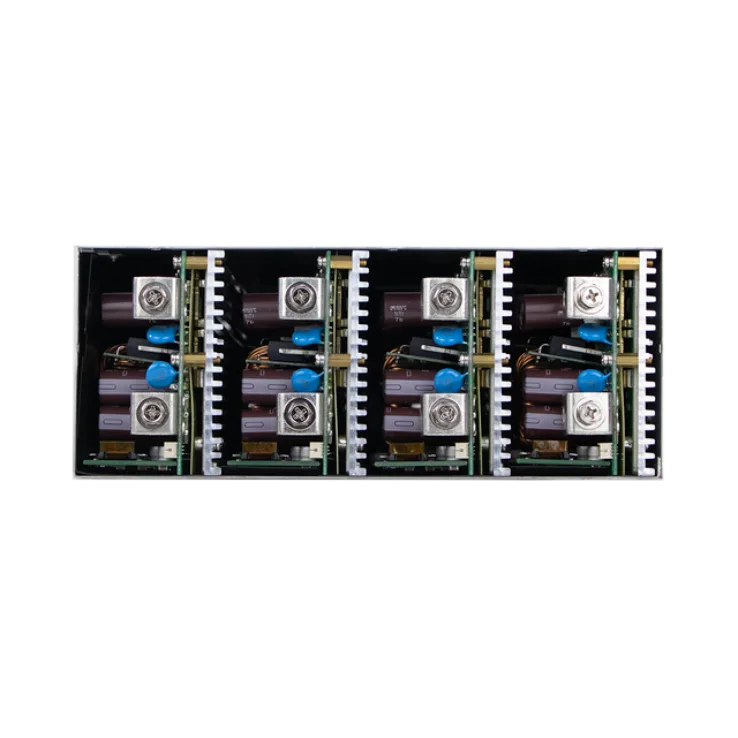

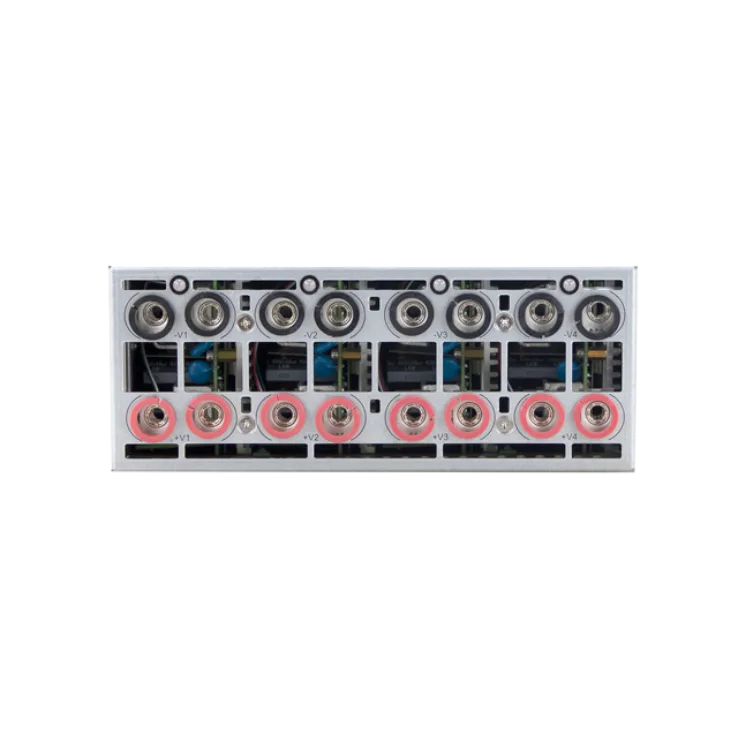

ERG-5000 Series Inverters 5000W

Download Datasheet
Models:
  • ERG-5000
  • ERG-5000H
Manufacturer: MEAN WELL
Type: Inverters

ERG-5000 Series Features:

ERG-5000 series is an Grid Type energy recycling power inverter that supports 5KW rated and maximum up to 6KW input, it can achieve high efficiency up to 91%.

Features:

  • Wide input voltage range 10~60VDC/60~420VDC by models
  • High efficiency up to 91%
  • Modular design for flexible configuration
  • Flexible CC/CV operation modes
  • Remote control and monitoring by CANBus protocol via CMU2A control console
  • Maximum 64 units ERG-5000 series that can be connected
  • Protections: over voltage/ under voltage/ over temperature/ over power/ grid fault/ communication error
  • 5 years warranty
Wattage 5000 5000
Input Voltage 10~60VDC 60~420VDC
Output Current 24A/230VAC 24A/230VAC
Output Voltage 180~264±5VAC, single phase 4500 ~ 4600VA (For input 60 ~ 420VDC)
Dimensions 504*211*83.5mm 504*211*83.5mm
Working Temperature -20 ~ +60℃
Safety Standards BS EN/EN62368-1 approved
EMC Standards Compliance to BS EN/EN55032 (CISPR32) Class A
