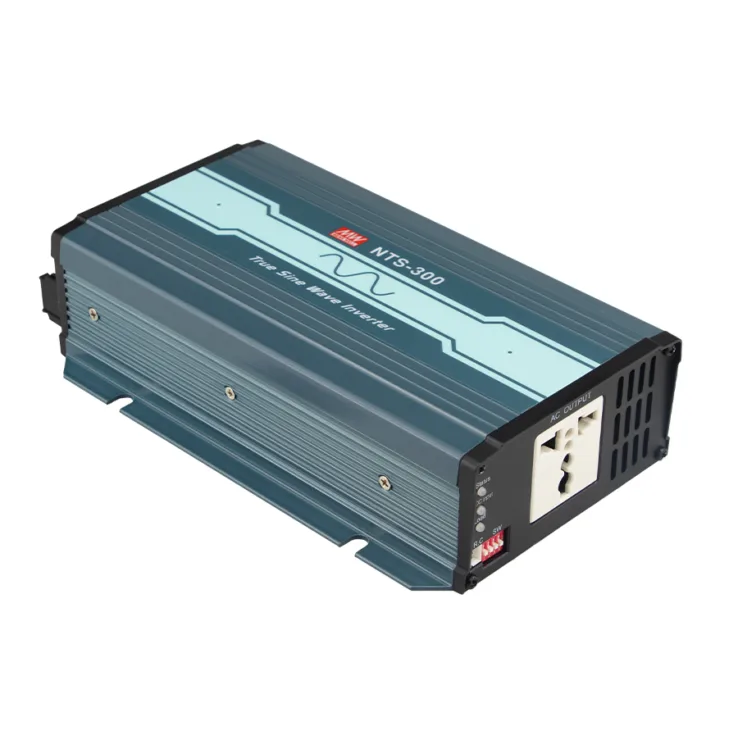

NTS-300 Series Inverters 300W

Models:	NTS-300-112US NTS-300-112GFCI NTS-300-112UN NTS-300-124US NTS-300-124GFCI NTS-300-124UN NTS-300-148US NTS-300-148GFCI NTS-300-148UN NTS-300-212EU NTS-300-212CN NTS-300-212AU NTS-300-212UK NTS-300-212UN NTS-300-224EU NTS-300-224CN NTS-300-224AU NTS-300-224UK NTS-300-224UN NTS-300-248EU NTS-300-248CN NTS-300-248AU NTS-300-248UK NTS-300-248UN
Manufacturer:	MEAN WELL
Type:	Inverters

NTS-300 Series Features:

NTS-300 is a 300W highly reliable off-grid true sine wave DC-AC power inverter.

Features:

Compact size and light weight
True sine wave output (THD<3%)
High surge power up to 600W
Fanless design
AC output voltage and frequency selectable by DIP S.W
No load disspation <1.5W max at standby saving mode
-25°C~+65°C wide operating temperature
Power ON-OFF remote control
Front panel indicator for operation status
Protections: Input: Reverse polarity/DC low alarm/DC low shutdown/Over voltage. Output: Short circuit/Overload/Over temp.
Battery over discharge protection(Low voltage disconnect)
Suitable for lead-acid or li-ion batteries
Conformal coating
3 years warranty

Spec	NTS-300-112US	NTS-300-112GFCI	NTS-300-112UN	NTS-300-124US	NTS-300-124GFCI	NTS-300-124UN	NTS-300-148US	NTS-300-148GFCI	NTS-300-148UN	NTS-300-212EU	NTS-300-212CN	NTS-300-212AU	NTS-300-212UK	NTS-300-212UN	NTS-300-224EU	NTS-300-224CN	NTS-300-224AU	NTS-300-224UK	NTS-300-224UN	NTS-300-248EU	NTS-300-248CN	NTS-300-248AU	NTS-300-248UK	NTS-300-248UN
Wattage	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300	300
Input Voltage	12V	12V	12V	24V	24V	24V	48V	48V	48V	12V	12V	12	12	12	24	24	24	24	24	48	48	48	48	48
Output Voltage	110VAC	110VAC	110VAC	110VAC	110VAC	110VAC	110VAC	110VAC	110VAC	Default setting set at 230VAC	Default setting set at 230VAC	Default setting set at 230VAC	Default setting set at 230VAC	Default setting set at 230VAC	Default setting set at 230VAC	Default setting set at 230VAC	Default setting set at 230VAC	Default setting set at 230VAC	Default setting set at 230VAC	Default setting set at 230VAC	Default setting set at 230VAC	Default setting set at 230VAC	Default setting set at 230VAC	Default setting set at 230VAC
Output Voltage Options	100/110/115/120VAC selectable by DIP S.W	100/110/115/120VAC selectable by DIP S.W	100/110/115/120VAC selectable by DIP S.W	100/110/115/120VAC selectable by DIP S.W	100/110/115/120VAC selectable by DIP S.W	100/110/115/120VAC selectable by DIP S.W	100/110/115/120VAC selectable by DIP S.W	100/110/115/120VAC selectable by DIP S.W	100/110/115/120VAC selectable by DIP S.W	200/220/230/240VAC selectable by DIP S.W	200/220/230/240VAC selectable by DIP S.W	200/220/230/240VAC selectable by DIP S.W	200/220/230/240VAC selectable by DIP S.W	200/220/230/240VAC selectable by DIP S.W	200/220/230/240VAC selectable by DIP S.W	200/220/230/240VAC selectable by DIP S.W	200/220/230/240VAC selectable by DIP S.W	200/220/230/240VAC selectable by DIP S.W	200/220/230/240VAC selectable by DIP S.W	200/220/230/240VAC selectable by DIP S.W	200/220/230/240VAC selectable by DIP S.W	200/220/230/240VAC selectable by DIP S.W	200/220/230/240VAC selectable by DIP S.W	200/220/230/240VAC selectable by DIP S.W
Dimensions	21013055	21013055	21013055	21013055	21013055	21013055	21013055	21013055	21013055	21013055	21013055	21013055	21013055	21013055	21013055	21013055	21013055	21013055	21013055	21013055	21013055	21013055	21013055	21013055
Working Temperature	-25~65°C
Safety Standards	CB IEC62368-1, Dekra EN62368-1, E13, EAC, TP TC 004, AS/NZS 62368.1 approved
EMC Standards	FCC for 112,124,148 only (expect for Type-UN), EN55032(CISPR32) for 212,224, 248 only (expect for Type-UN), EN61000-3-2, EN61000-3-3
