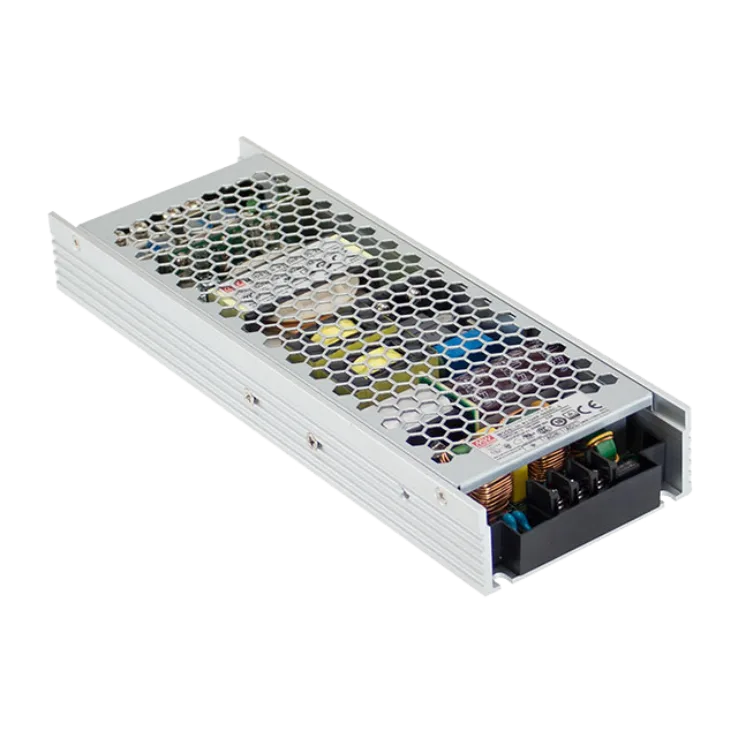

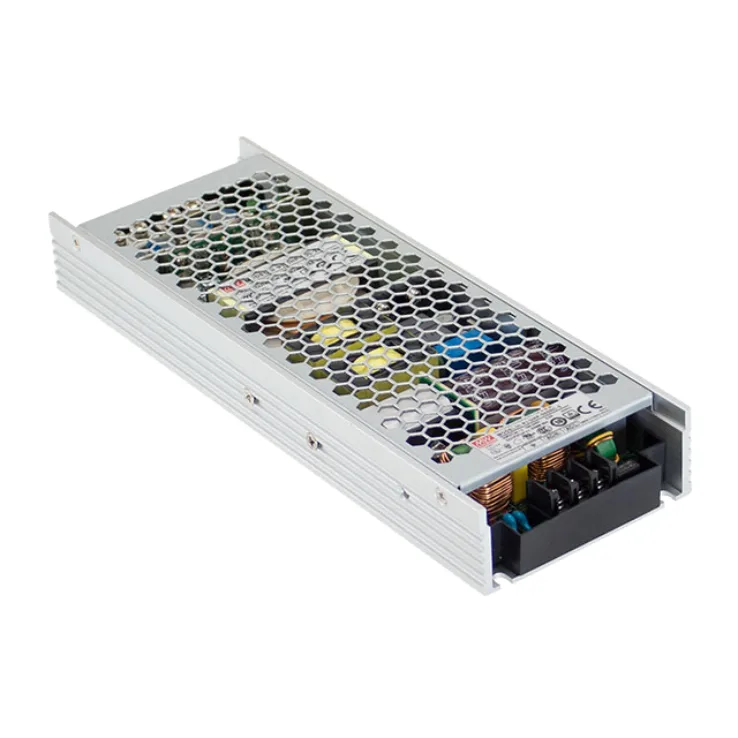

UHP-500 Series Enclosed Power Supplies 336–501.6W

Models:	UHP-500-4.2 UHP-500-5 UHP-500-12 UHP-500-15 UHP-500-24 UHP-500-36 UHP-500-48 UHP-500R-4.2 UHP-500R-5 UHP-500R-12 UHP-500R-15 UHP-500R-24 UHP-500R-36 UHP-500R-48 UHP-500-55
Manufacturer:	MEAN WELL
Type:	Enclosed Power Supplies

UHP-500 Series Features:

Slim and Low profile (31mm)

Fanless design, 500W convection

Protections:Short circuit / Overload/ Over voltage/ Over Temperature

Other features:

Withstand 300VAC surge input for 5 seconds
Built-in active PFC function
150% peak load capability (100ms)
-20-+70°C working temperature
Operating altitude up to 5000 meter
LED Indicator for power on
3 years warranty

Spec	UHP-500-4.2	UHP-500-5	UHP-500-12	UHP-500-15	UHP-500-24	UHP-500-36	UHP-500-48	UHP-500R-4.2	UHP-500R-5	UHP-500R-12	UHP-500R-15	UHP-500R-24	UHP-500R-36	UHP-500R-48	UHP-500-55
Wattage	336	400	500.4	501	501.6	500.4	501.6	336	400	500.4	501	501.6	500.4	501.6	500
Input Voltage	90-264VAC 127-370VDC	90-264VAC 127-370VDC	90-264VAC 127-370VDC	90-264VAC 127-370VDC	90-264VAC 127-370VDC	90-264VAC 127-370VDC	90-264VAC 127-370VDC	90-264VAC 127-370VDC	90-264VAC 127-370VDC	90-264VAC 127-370VDC	90-264VAC 127-370VDC	90-264VAC 127-370VDC	90-264VAC 127-370VDC	90-264VAC 127-370VDC	127 ~ 370VDC
Output Current	80A	80A	41.7A	33.4A	20.9A	13.9A	10.45A	80A	80A	41.7A	33.4A	20.9A	13.9A	10.45A	8.9A
Output Voltage	4.2	5	12	15	24	36	48	4.2	5	12	15	24	36	48	55V
Output Voltage Options	Single	Single	Single	Single	Single	Single	Single	Single	Single	Single	Single	Single	Single	Single
DC output adjustment	3.6-4.4V	4.5-5.5V	11.4-12.6V	14.3-15.8V	22.8-25.2V	34.2-37.8V	45.6-50.4V	3.6-4.4V	4.5-5.5V	11.4-12.6V	14.3-15.8V	22.8-25.2V	34.2-37.8V	45.6-50.4V
Dimensions	232x 81x 31	232x 81x 31	232x 81x 31	232x 81x 31	232x 81x 31	232x 81x 31	232x 81x 31	232x 81x 31	232x 81x 31	232x 81x 31	232x 81x 31	232x 81x 31	232x 81x 31	232x 81x 31	2328131mm (LWH)
Working Temperature	-20-+70°C	-30 ~ +70℃
Safety Standards	UL60950-1, TUV EN60950-1, CCC GB4943 approved; Design refer to EN60335-1, EN61558-2-16	Compliance to BS EN/EN55032,GB17625.1,GB/T 9254.1,Class B, BS EN/EN61000-3-2,-3, BSMI CNS13438, EAC TP TC 020, UL 62368-1,TUV BS EN/EN62368-1,BS EN/EN60335-1(Except for 55V), BS EN/EN61558-1,BS EN/EN61558-2-16, GB 4943.1, BSMI CNS14336-1, EAC TP TC 004 approved;Design refer to AS/NZS 61558.1/2.16, AS/NZS 62368.1
EMC Standards	Compliance to EN55032, GB/T9254, Class B, EN61000-3-2,-3 Compliance to EN61000-4-2,3,4,5,6,8,11; EN61000-6-2 (EN50082 ), Heavy industry level, Criteria A	Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11;BS EN/EN61000-6-2 (BS EN/EN50082-2),BS EN/EN55035, heavy industry level ,EAC TP TC 020
