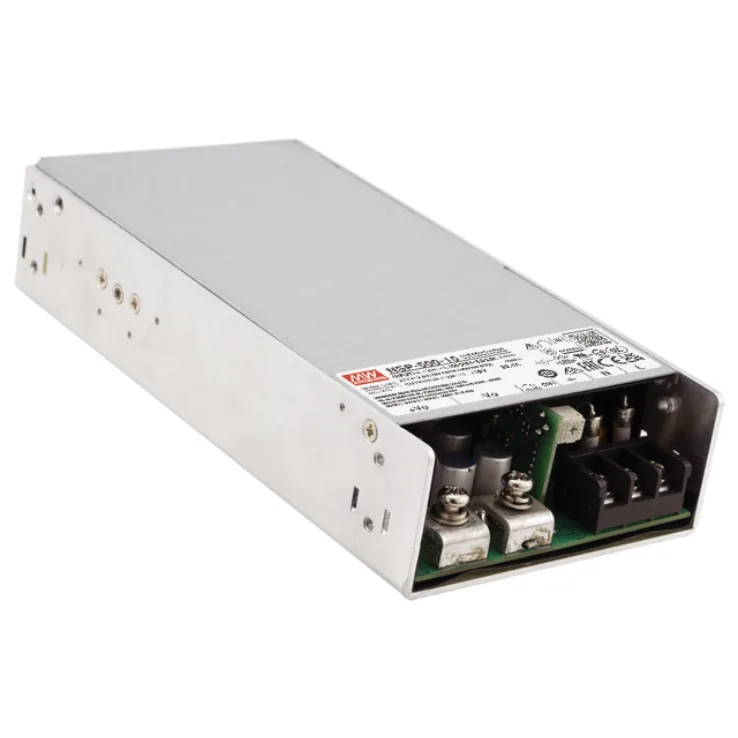

NSP-500 Series Enclosed Power Supplies 450–504W

NSP-500 Series Features:

The NSP Series is a 500W AC/DC power supply with PFC function, designed for high reliability and suitable for multiple industries.

Features:

85~305Vac input with PFC (277Vac available)
No load power consumption<0.75W by R.C.
Global certificates in multi-fields
200% peak power capability (12~60V models)
High efficiency up to 95%
-40~85C wide range operation temperature (>+60C derating)
Extremely low leakage current<350uA, 2 x MOPP, suitable for BF medical applications
Built-in constant current limiting circuit
Protections: Short circuit / Overload / Over voltage / Over temperature
Forced air cooling by built-in DC fan with noise <45dB and fan ON/OFF control
Built-in Remote ON/OFF control/Remote Sense/ DC OK signal
Over voltage category III (OVC III)
Operating altitude up to 5000 meters
Conformal coating
5 years warranty

Spec	NSP-500-5	NSP-500-12	NSP-500-15	NSP-500-24	NSP-500-27	NSP-500-36	NSP-500-48	NSP-500-60
Wattage	450	504	501	504	502.2	500.4	504	504
Input Voltage	85~305Vac	85~305Vac	85~305Vac	85~305Vac	85~305Vac	85~305Vac	85~305Vac	85~305Vac
Output Current	90A	90A	33.4A	21A	18.6A	13.9A	10.5A	8.4A
Output Voltage	5V	12V	15V	24V	27V	36V	48V	60V
Dimensions	199 x 99 x 41 mm	199 x 99 x 41 mm	199 x 99 x 41mm	199 x 99 x 41 mm	199 x 99 x 41 mm	199 x 99 x 41mm	199 x 99 x 41 mm	199 x 99 x 41 mm
Working Temperature	-40~+85C
