MEAN WELL

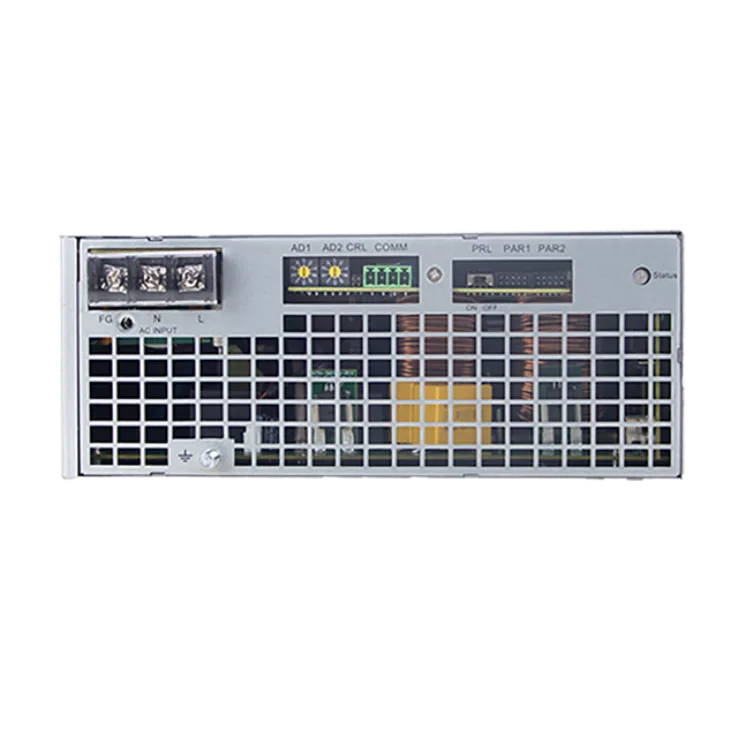

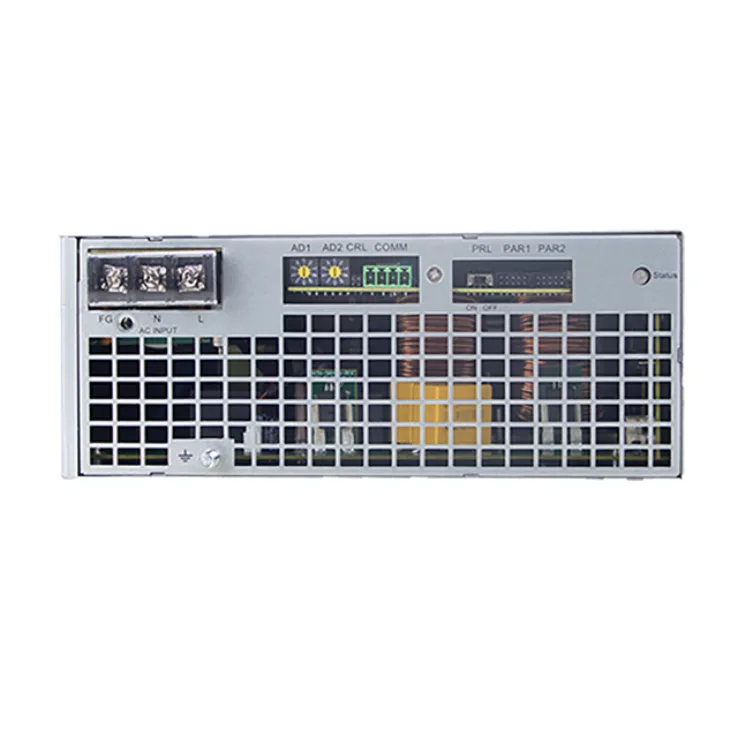

BIC-5K Series Enclosed Power Supplies 4992–5025W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Enclosed Power Supplies |
BIC-5K Series Features:
The BIC-5K series is a 5KW bidirectional power supply featuring AC-DC and DC-AC conversion with energy recovery functionality.
Features:
- Combining AC-DC and DC-AC bidirection power, 5KW full-power operation in both directions
- Ultra-fast bidirectional time of 1ms(AC-DC)
- Global certification in multi-fields (ITE 62368-1, Energy converter 62477-1, AC grid system 50549-1)
- 180~305Vac (277Vac available)
- High efficiency up to 93.5%
- THD <3% in both conversion mode
- Parallel operation up to 30KW (5+1 unit)
- Support CANBus or MODBus-RTU (RS-485) protocol communication
- Complete protections: Anti-islanding protection, AC fail protection, DC OVP. OLP, OCP, OTP
- Over voltage category III
- -30C ~+70C wide operating temperature
- FAN noise <43~54dB
- Conformal coating
- 5 years warranty
| Wattage | 4992 | 4992 | 4992 | 5025 |
|---|---|---|---|---|
| Input Voltage | 180~305Vac | 180~305Vac | 180~305Vac | 180~305Vac |
| Output Current | 208A | 104A | 52A | 15A |
| Output Voltage | 24V | 48V | 96V | 380V |
| Dimensions | 460 x 211 x 83.5 mm | 460 x 211 x 83.5 mm | 460 x 211 x 83.5 mm | 460 x 211 x 83.5 mm |
| Working Temperature | -30~+70C | |||
