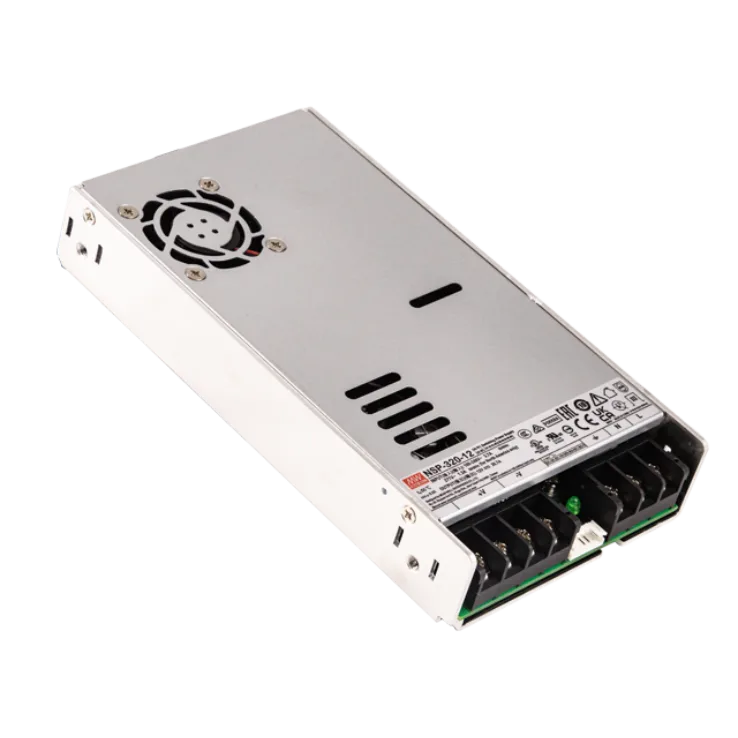

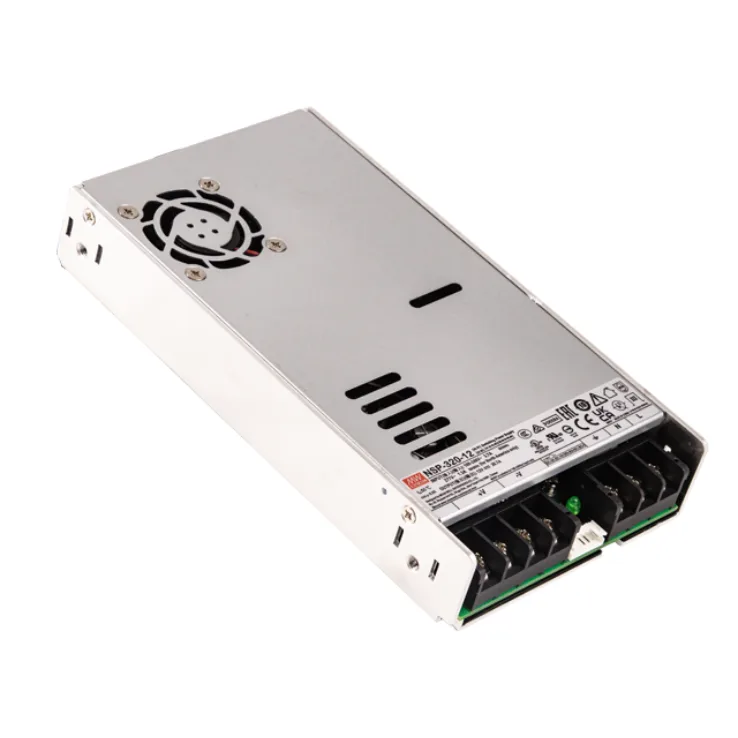

NSP-320 Enclosed Power Supplies 300–324W

Models:	NSP-320-5 NSP-320-7.5 NSP-320-12 NSP-320-15 NSP-320-24 NSP-320-27 NSP-320-36 NSP-320-48 NSP-320-60
Manufacturer:	MEAN WELL
Type:	Enclosed Power Supplies

NSP-320 Features:

The NSP-320 series is a 320W AC/DC power supply with PFC function, designed for high reliability and suitable for multiple industries

Features:

85~305Vac input with PFC (277Vac available)
No load power consumption <0.75W by R.C.
Global certificates in multi-fields
200% peak power capability (12~60V models)
High efficiency up to 93%
-40~85C wide range operation temperature (>+60C derating)
Extremely low leakage current <350uA, 2 x MOPP, suitable for BF medical applications
Built-in constant current limiting circuit
Protections: Short circuit / Overload / Over voltage / Over temperature
Forced air cooling by built-in DC fan with noise <45dB and fan ON/OFF control
Built-in remote ON/OFF control/Remote Sense/DC OK signal
Over voltage category III (OVC III)
Operating altitude up to 5000 meters
Conformal coating
5 years warranty

Spec	NSP-320-5	NSP-320-7.5	NSP-320-12	NSP-320-15	NSP-320-24	NSP-320-27	NSP-320-36	NSP-320-48	NSP-320-60
Wattage	300	300	320.4	321	321.6	321.3	320.4	321.6	324
Input Voltage	85~305Vac	85~305Vac	85~305Vac	85~305Vac	85~305Vac	85~305Vac	85~305Vac	85~305Vac	85~305Vac
Output Current	60A	40A	26.7A	21.4A	13.4A	11.9A	8.9A	6.7A	5.4A
Output Voltage	5V	7.5V	12V	15V	24V	27V	36V	48V	60V
Dimensions	179x99x30mm	179x99x30mm	179x99x30mm	179x99x30mm	179x99x30mm	179x99x30mm	179x99x30mm	179x99x30mm	179x99x30mm
Working Temperature	-40 ~ +85C	-40 ~ 85C								-40 ~ +85C
